History Memory Channel; Clearing The Memory Contents ( Regular And Group Memory Channels Only) - Icom IC-A210 Instruction Manual

3

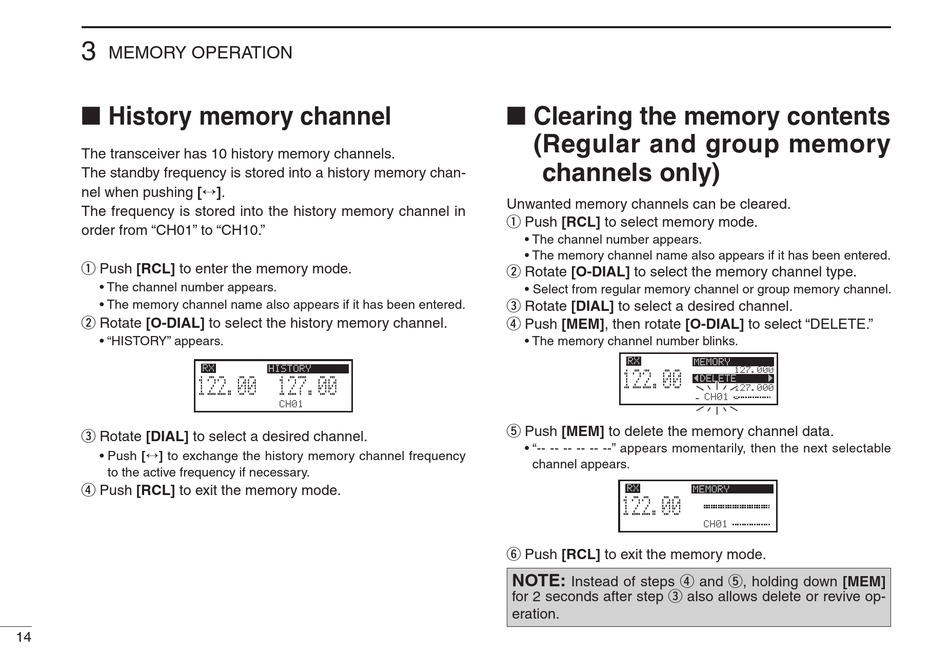

MEMORY OPERATION

■ History memory channel

The transceiver has 10 history memory channels.
The standby frequency is stored into a history memory chan-
nel when pushing [↔].
The frequency is stored into the history memory channel in
order from "CH01" to "CH10."
q Push [RCL] to enter the memory mode.
• The channel number appears.
• The memory channel name also appears if it has been entered.
w Rotate [O-DIAL] to select the history memory channel.
• "HISTORY" appears.
e Rotate [DIAL] to select a desired channel.
• Push [↔] to exchange the history memory channel frequency
to the active frequency if necessary.
r Push [RCL] to exit the memory mode.
14
RX
HISTORY
122.00 127.00
5
CH01
■ Clearing the memory contents
( Regular and group memory
channels only)
Unwanted memory channels can be cleared.
q Push [RCL] to select memory mode.
• The channel number appears.
• The memory channel name also appears if it has been entered.
w Rotate [O-DIAL] to select the memory channel type.
• Select from regular memory channel or group memory channel.
e Rotate [DIAL] to select a desired channel.
r Push [MEM], then rotate [O-DIAL] to select "DELETE."
• The memory channel number blinks.
RX
122.00
t Push [MEM] to delete the memory channel data.
• "-- -- -- -- -- --" appears momentarily, then the next selectable
channel appears.
RX
122.00
y Push [RCL] to exit the memory mode.
NOTE:
Instead of steps r and t, holding down [MEM]
for 2 seconds after step e also allows delete or revive op-
eration.
MEMORY
127.000
ÅDELETE Ç
127.000
CH01
MEMORY
CH01
