Frequency Setting Example - Icom IC-A210 Instruction Manual

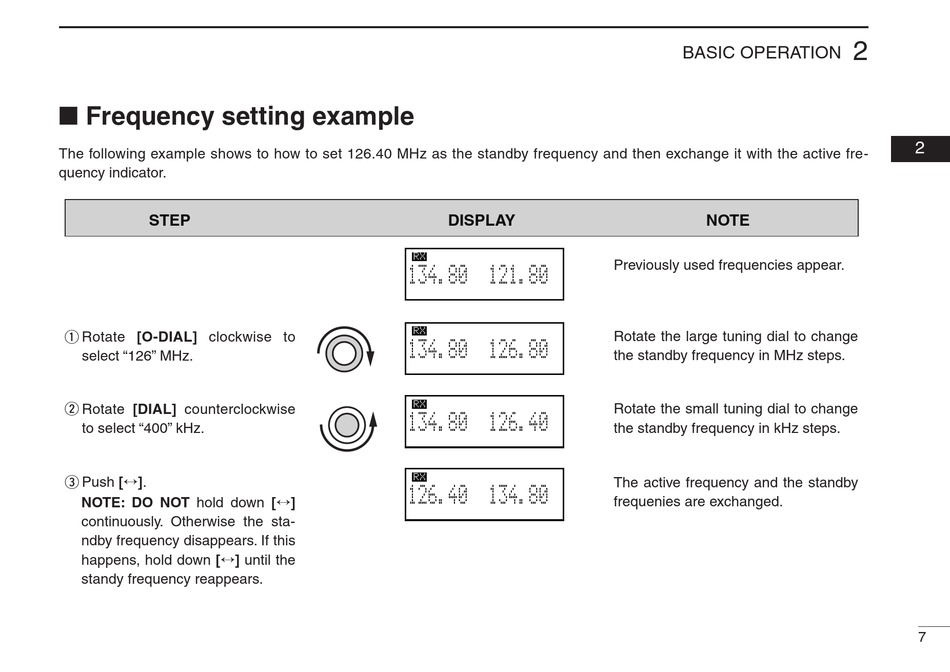

■ Frequency setting example

The following example shows to how to set 126.40 MHz as the standby frequency and then exchange it with the active fre-
quency indicator.
STEP
q Rotate [O-DIAL] clockwise to
select "126" MHz.
w Rotate [DIAL] counterclockwise
to select "400" kHz.
e Push [�].
NOTE: DO NOT hold down [�]
continuously. Otherwise the sta-
ndby frequency disappears. If this
happens, hold down [�] until the
standy frequency reappears.
DISPLAY
RX
134.80
121.80
5
RX
134.80 126.80
5
RX
134.80 126.40
5
RX
126.40 134.80
5
BASIC OPERATION
NOTE
Previously used frequencies appear.
Rotate the large tuning dial to change
the standby frequency in MHz steps.
Rotate the small tuning dial to change
the standby frequency in kHz steps.
The active frequency and the standby
frequenies are exchanged.
2
02
7
