1

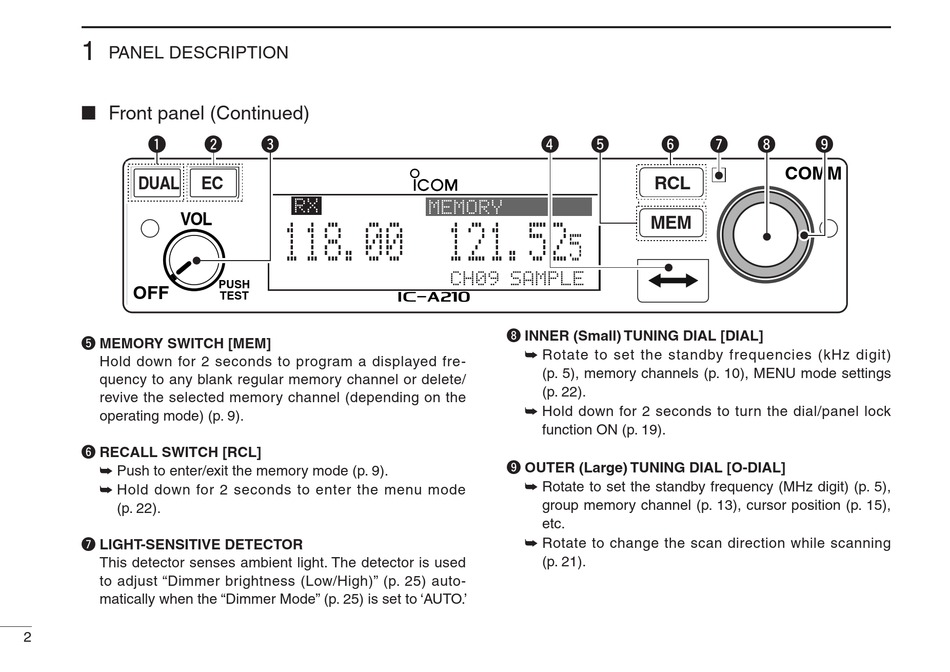

PANEL DESCRIPTION
■ Front panel (Continued)
q
EC
DUAL
VOL
OFF
t MEMORY SWITCH [MEM]
Hold down for 2 seconds to program a displayed fre-
quency to any blank regular memory channel or delete/
revive the selected memory channel (depending on the
operating mode) (p. 9).
y RECALL SWITCH [RCL]
➥ Push to enter/exit the memory mode (p. 9).
➥ Hold down for 2 seconds to enter the menu mode
(p. 22).
u LIGHT-SENSITIVE DETECTOR
This detector senses ambient light. The detector is used
to adjust "Dimmer brightness (Low/High)" (p. 25) auto-
matically when the "Dimmer Mode" (p. 25) is set to 'AUTO.'
2
w e
RX
118.00
PUSH
TEST
r
MEMORY
121.52
5
CH09 SAMPLE
iA210
i INNER (Small) TUNING DIAL [DIAL]
➥ Rotate to set the standby frequencies (kHz digit)
(p. 5), memory channels (p. 10), MENU mode settings
(p. 22).
➥ Hold down for 2 seconds to turn the dial/panel lock
function ON (p. 19).
o OUTER (Large) TUNING DIAL [O-DIAL]
➥ Rotate to set the standby frequency (MHz digit) (p. 5),
group memory channel (p. 13), cursor position (p. 15),
etc.
➥ Rotate to change the scan direction while scanning
(p. 21).
t y u i
RCL
MEM
o
COMM
