Upgrading the System Memory (RAM)

The computer has two memory sockets for 204 pin Small Outline Dual In-line (SO-
DIMM) DDRIII (DDR3) type memory modules (see
details of supported module types).
1. Turn off the computer, and turn it over and remove the battery.
2. Locate the component bay cover and remove screws
3. Carefully (a fan and cable are attached to the under side of the cover) lift up
the bay cover.
4. Carefully disconnect the fan cable
1
2
Model A
3
4
5
"Memory" on page C - 2
1
5 , and remove the cover
5
6
Upgrading the System Memory (RAM) 6 - 9
Upgrading The Computer
for
-
.
4
.
6
1
2
Model B
3
4
6
5

Fan Cable
Make sure you recon-
nect the fan cable 5
before screwing down
the bay cover.

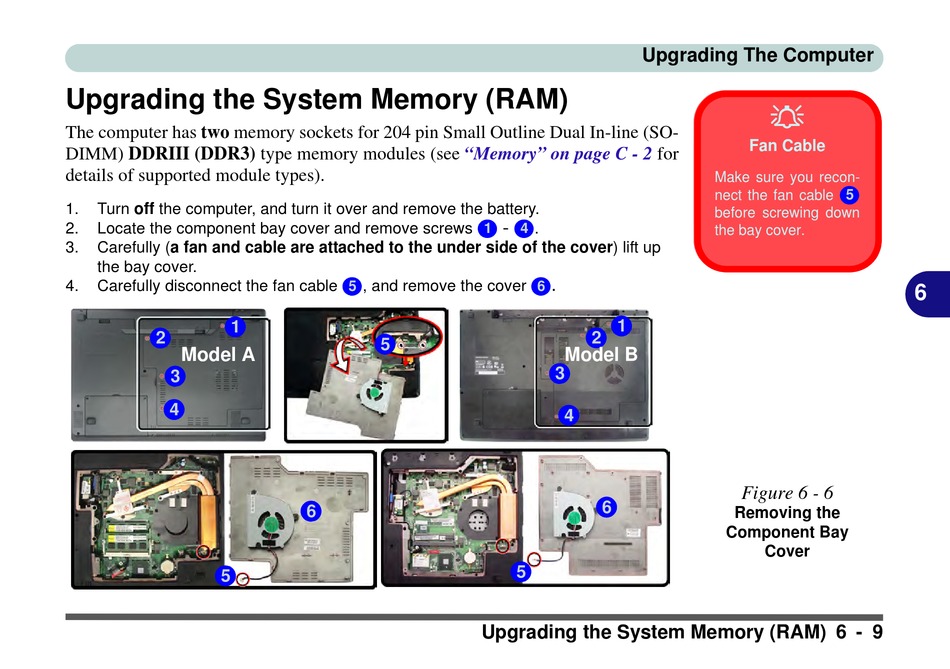

Figure 6 - 6
Removing the
Component Bay
Cover
6
