System Map: Lcd Panel Open - Model B - EUROCOM Notebook V10.1.00 User Manual

Quick Start Guide
1

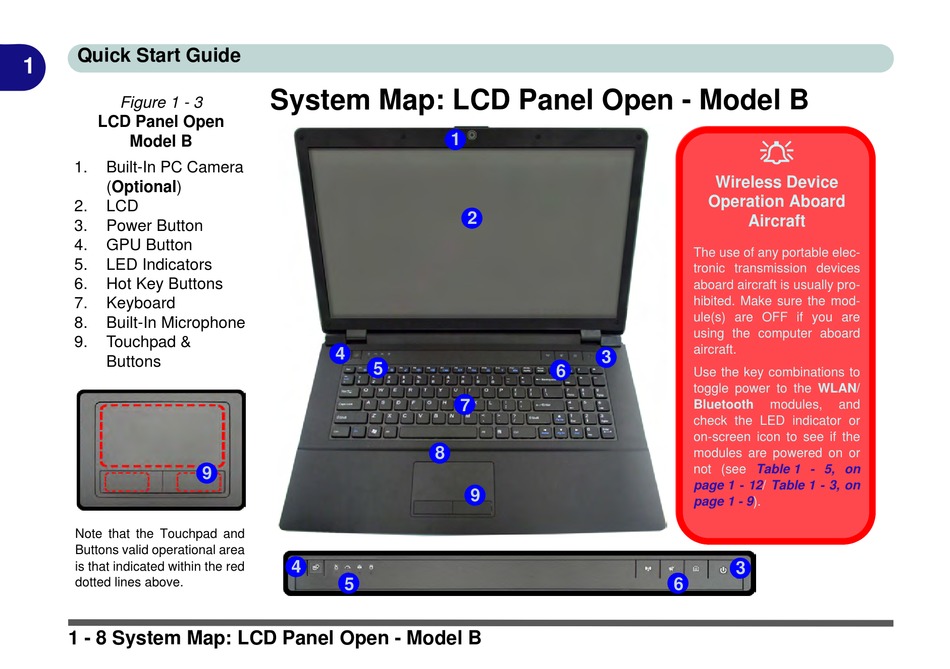

Figure 1 - 3
LCD Panel Open
Model B
1. Built-In PC Camera
(Optional)
2. LCD
3. Power Button
4. GPU Button
5. LED Indicators
6. Hot Key Buttons
7. Keyboard
8. Built-In Microphone
9. Touchpad &
Buttons
9
Note that the Touchpad and
Buttons valid operational area
is that indicated within the red
dotted lines above.

1 - 8 System Map: LCD Panel Open - Model B

System Map: LCD Panel Open - Model B
1
4
5
8
4
5
2
3
6
7
9

Wireless Device
Operation Aboard
Aircraft
The use of any portable elec-
tronic transmission devices
aboard aircraft is usually pro-
hibited. Make sure the mod-
ule(s) are OFF if you are
using the computer aboard
aircraft.
Use the key combinations to
toggle power to the WLAN/
Bluetooth modules, and
check the LED indicator or
on-screen icon to see if the
modules are powered on or
not (see Table 1 - 5, on
page 1 - 12/ Table 1 - 3, on
page 1 - 9).
