System Map: Bottom View - Model B


Battery Information
Always completely dis-
charge, then fully charge,
a new battery before using
it. Completely discharge
and charge the battery at
least once every 30 days
or after about 20 partial
discharges. See "Battery
Information" on page 3 -
11 for full instructions.
The CPU is not a user serviceable part.
To prevent your computer from overheating make sure nothing blocks the Vent/Fan Intake
while the computer is in use.
1
3
4
5

CPU
Overheating
System Map: Bottom View - Model B 1 - 17
Quick Start Guide
3
1.
2.
3.
2
3
4.
5.
3
5
1

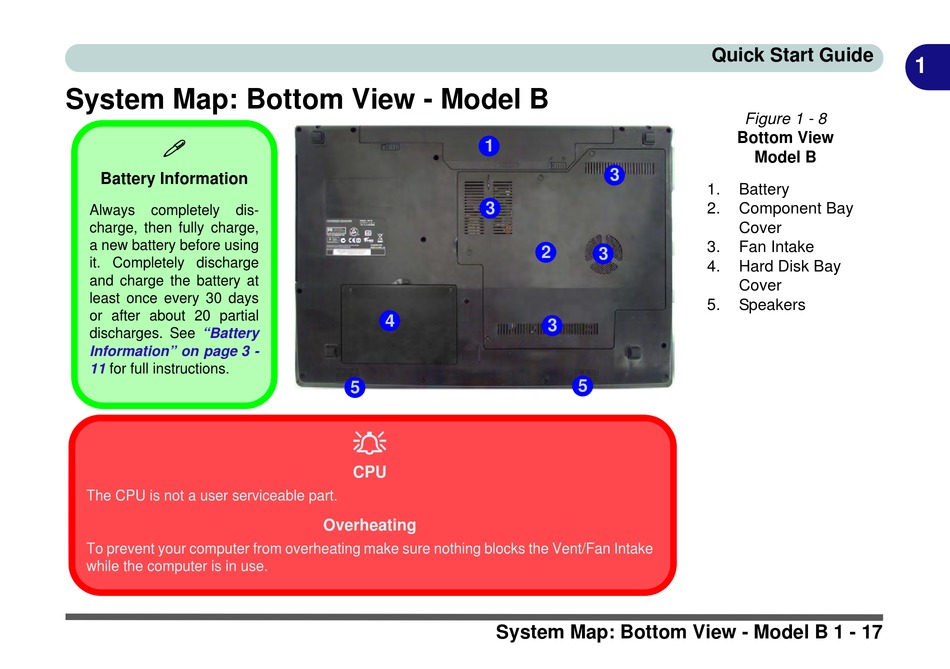

Figure 1 - 8
Bottom View
Model B
Battery
Component Bay
Cover
Fan Intake
Hard Disk Bay
Cover
Speakers
