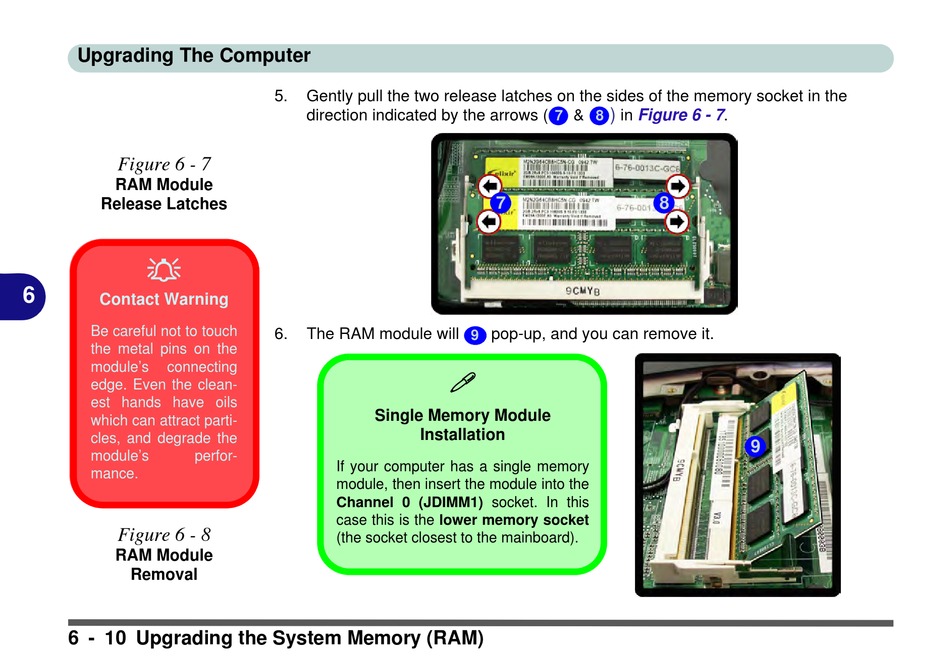

EUROCOM Notebook V10.1.00 User Manual page 114

Upgrading The Computer
Figure 6 - 7
RAM Module
Release Latches

6
Contact Warning
Be careful not to touch
the metal pins on the
module's connecting
edge. Even the clean-
est hands have oils
which can attract parti-
cles, and degrade the
module's perfor-
mance.
Figure 6 - 8
RAM Module
Removal
6 - 10 Upgrading the System Memory (RAM)
5. Gently pull the two release latches on the sides of the memory socket in the
direction indicated by the arrows (
6. The RAM module will

Single Memory Module
Installation
If your computer has a single memory
module, then insert the module into the
Channel 0 (JDIMM1) socket. In this
case this is the lower memory socket
(the socket closest to the mainboard).
)
& in Figure 6 -
7 8
7
pop-up, and you can remove it.
9
7.
8
9
