Quick Start Guide
1

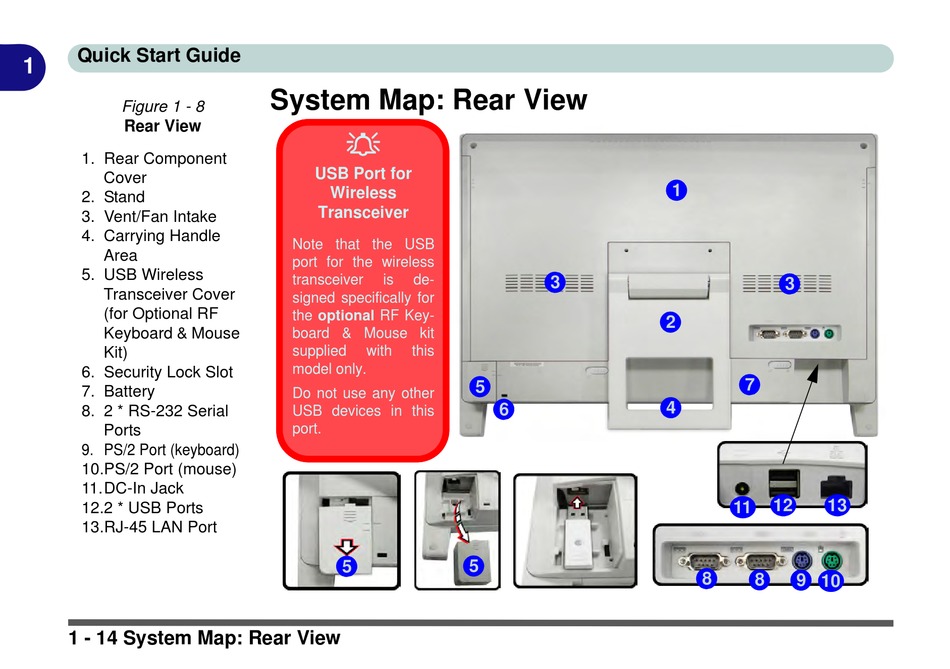

Figure 1 - 8
Rear View
1. Rear Component
Cover
2. Stand
3. Vent/Fan Intake
4. Carrying Handle
Area
5. USB Wireless
Transceiver Cover
(for Optional RF
Keyboard & Mouse
Kit)
6. Security Lock Slot
7. Battery
8. 2 * RS-232 Serial
Ports
9. PS/2 Port (keyboard)
10.PS/2 Port (mouse)
11.DC-In Jack
12.2 * USB Ports
13.RJ-45 LAN Port
1 - 14 System Map: Rear View
System Map: Rear View
USB Port for
Wireless
Transceiver
Note that the USB
port for the wireless
transceiver
is
de-
signed specifically for
the optional RF Key-
board & Mouse kit
supplied
with
this
model only.
Do not use any other
USB devices in this
port.
5
3
5
6
5
1
3
2
7
4
12
13
11
8
8
9
10
