7. It is important to set the screws
the case) in place in the HDD assembly before sliding the assembly into the
case.
8. Once the screws are set in place slide the whole assembly including the screws
into place as per Figure 6 - 8 on page 6 -
9. Make sure the HDD is connected to the slot and then tighten the four screws and
replace the rear component cover and screws.
- (for screwing the HDD assembly to
7 10
10.
7
10
8 9
Upgrading The Computer
Upgrading the Hard Disk Drive/SSD 6 - 13

Screwdriver Types
Make sure you use a
small manual screw-
driver, and not an elec-
trical screwdriver, in
the course of the up-
grade/disassembly pro-
cedures outlined here,
due to the delicate na-
ture of the screws.

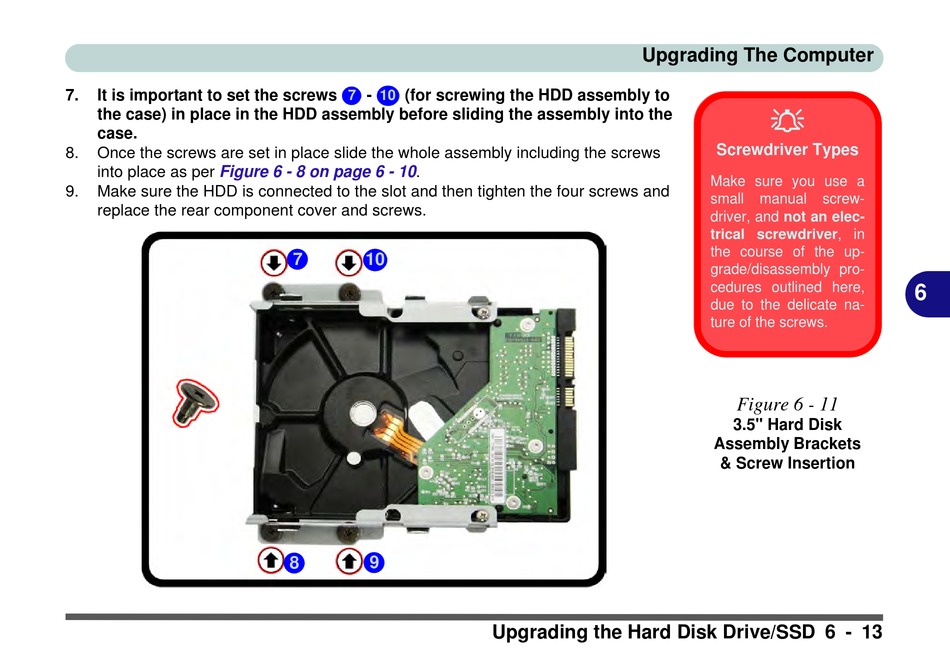

Figure 6 - 11
3.5" Hard Disk
Assembly Brackets
& Screw Insertion
