Upgrading The Computer

Foam Insert for
SSDs
Note that if your comput-
er contains an SSD in
the bracket then a foam
insert will be supplied.
Make sure you have the
6
foam inserted when in-
stalling an SSD to this
bracket (see "Remov-
ing the SSD from the
Bracket." on page 6 -
16).

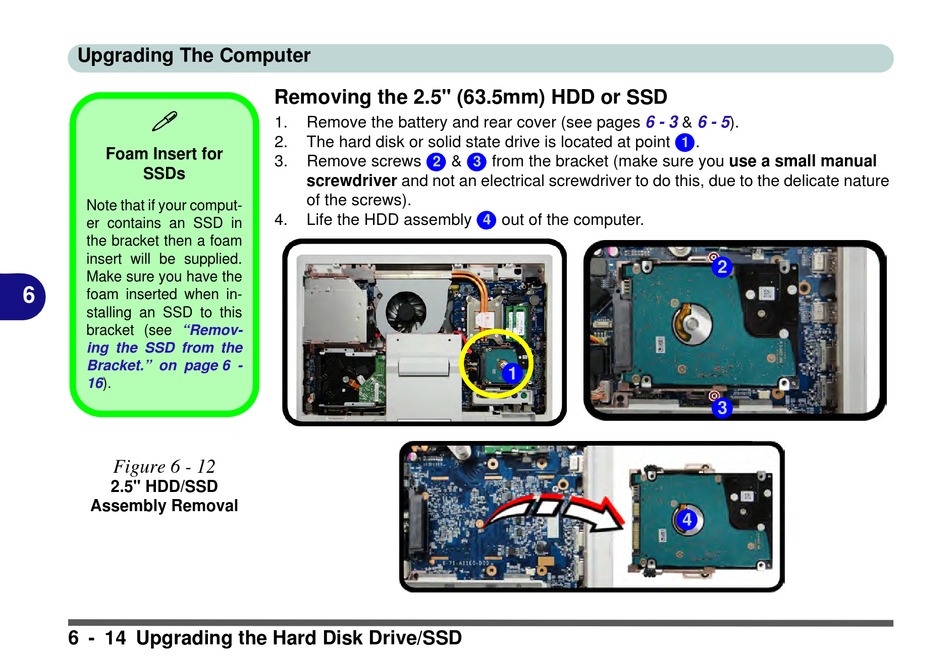

Figure 6 - 12
2.5" HDD/SSD
Assembly Removal
6 - 14 Upgrading the Hard Disk Drive/SSD

Removing the 2.5" (63.5mm) HDD or SSD

1. Remove the battery and rear cover (see pages
2. The hard disk or solid state drive is located at point
3. Remove screws &
2
screwdriver and not an electrical screwdriver to do this, due to the delicate nature
of the screws).
4. Life the HDD assembly
6 - 3
from the bracket (make sure you use a small manual
3
out of the computer.
4
1
& 6 - 5).
.
1
2
3
4
