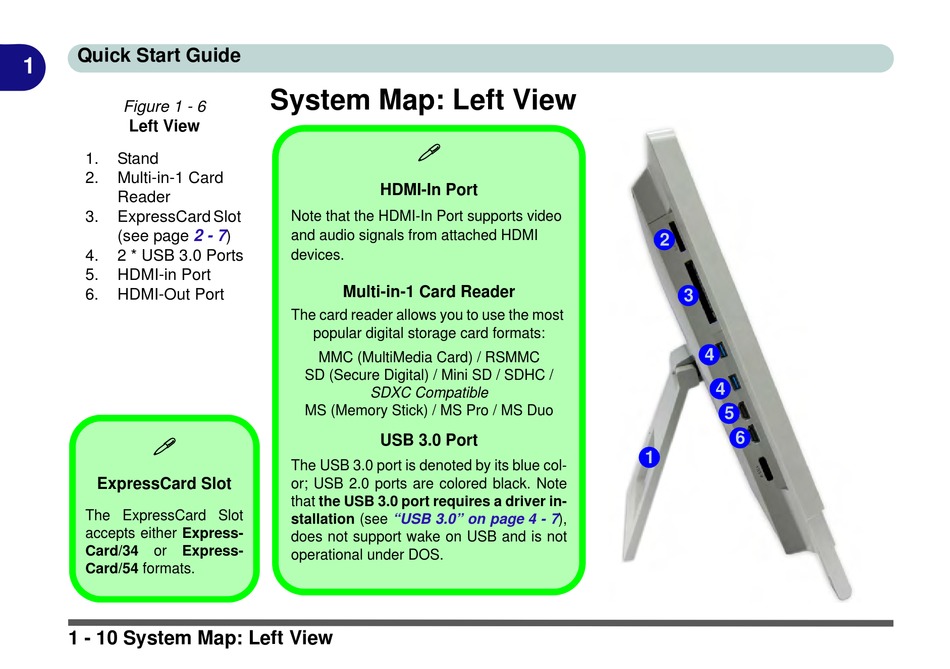

Figure 1 - 6
Left View
1. Stand
2. Multi-in-1 Card
Reader
3. ExpressCard Slot
(see page 2 -
4. 2 * USB 3.0 Ports
5.

HDMI-in Port

6. HDMI-Out Port

ExpressCard Slot
The ExpressCard Slot
accepts either Express-
Card/34 or Express-
Card/54 formats.

1 - 10 System Map: Left View

System Map: Left View
HDMI-In Port
Note that the HDMI-In Port supports video
7) and audio signals from attached HDMI
devices.
Multi-in-1 Card Reader
The card reader allows you to use the most
popular digital storage card formats:
MMC (MultiMedia Card) / RSMMC
SD (Secure Digital) / Mini SD / SDHC /
SDXC Compatible
MS (Memory Stick) / MS Pro / MS Duo
USB 3.0 Port
The USB 3.0 port is denoted by its blue col-
or; USB 2.0 ports are colored black. Note
that the USB 3.0 port requires a driver in-
stallation (see "USB 3.0" on page 4 -
does not support wake on USB and is not
operational under DOS.

7),
