Upgrading The Computer

Contact Warning
Be careful not to touch
the metal pins on the
module's connecting
edge. Even the cleanest
hands have oils which
can attract particles, and
degrade the module's
6
performance.

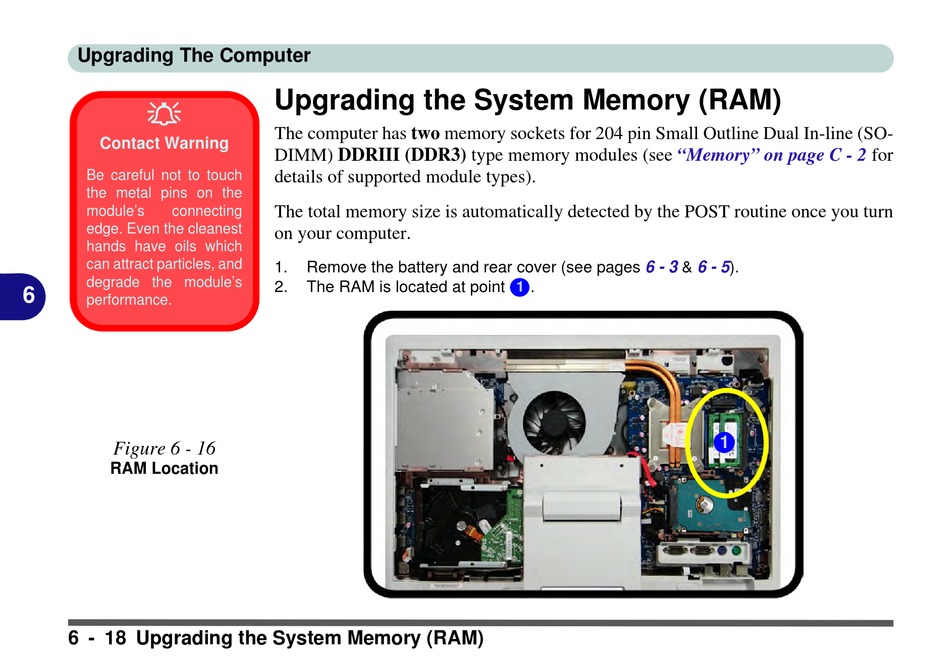

Figure 6 - 16
RAM Location

6 - 18 Upgrading the System Memory (RAM)

Upgrading the System Memory (RAM)
The computer has two memory sockets for 204 pin Small Outline Dual In-line (SO-
DIMM) DDRIII (DDR3) type memory modules (see
details of supported module types).
The total memory size is automatically detected by the POST routine once you turn
on your computer.
1. Remove the battery and rear cover (see pages
2. The RAM is located at point
"Memory" on page C - 2
6 - 3 & 6 -
.
1
for
5).
1
