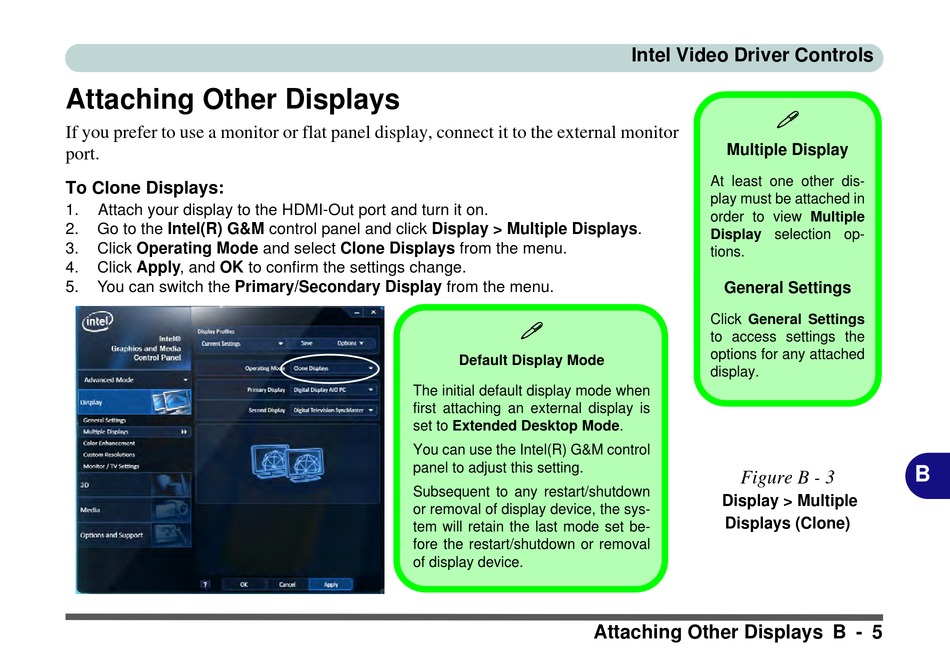

Attaching Other Displays - EUROCOM Multimedia PC V12.1.00 User Manual

Attaching Other Displays

If you prefer to use a monitor or flat panel display, connect it to the external monitor
port.
To Clone Displays:
1. Attach your display to the HDMI-Out port and turn it on.
2. Go to the Intel(R) G&M control panel and click Display > Multiple Displays.
3. Click Operating Mode and select Clone Displays from the menu.
4. Click Apply, and OK to confirm the settings change.
5. You can switch the Primary/Secondary Display from the menu.

Default Display Mode
The initial default display mode when
first attaching an external display is
set to Extended Desktop Mode.
You can use the Intel(R) G&M control
panel to adjust this setting.
Subsequent to any restart/shutdown
or removal of display device, the sys-
tem will retain the last mode set be-
fore the restart/shutdown or removal
of display device.
Intel Video Driver Controls
Multiple Display
At least one other dis-
play must be attached in
order to view Multiple
Display selection op-
tions.
General Settings
Click General Settings
to access settings the
options for any attached
display.
Figure B - 3
Display > Multiple
Displays (Clone)
Attaching Other Displays B - 5

B
