System Map: Rear View


CPU
The CPU is not a user serviceable
part. Opening this compartment, or
accessing the CPU in any way,
may violate your warranty.
Overheating
To prevent your computer from
overheating make sure nothing
blocks the Vent/Fan Intake while
the computer is in use.
We strongly recommend using both hands to move the computer (one hand gripping the
handle area and the other gripping the computer) to avoid accidentally dropping it. Be
careful that objects such as belt buckles etc. do not scratch the screen while it is being
carried.
3
4

Carrying the Computer
3
2
3
1
5
System Map: Rear View 1 - 13
Quick Start Guide

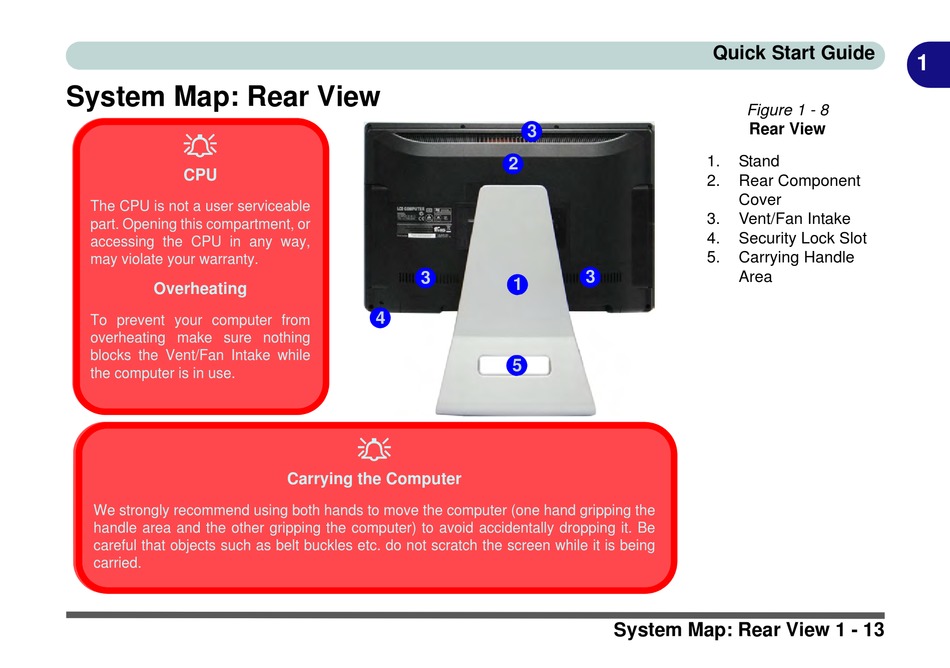

Figure 1 - 8
Rear View
1. Stand
2. Rear Component
Cover
3. Vent/Fan Intake
4. Security Lock Slot
5. Carrying Handle
Area
