EUROCOM Multimedia PC V12.1.00 User Manual page 202

Intel Video Driver Controls

Display Settings
Extended Desktop
You can have different
Colors, Screen
and Monitor Refresh
Rates for each display
device provided your
monitor can support
them.
You can drag the moni-
tor icons to match the
physical layout of your
displays. Icons and pro-
grams may also be
dragged between the
displays.
B

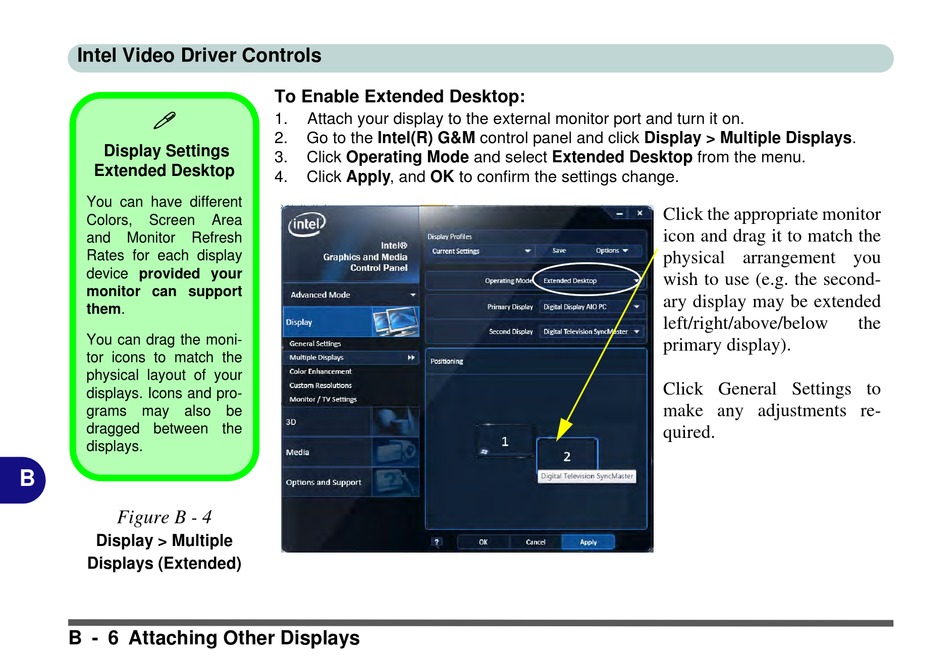

Figure B - 4
Display > Multiple
Displays (Extended)
B - 6 Attaching Other Displays
To Enable Extended Desktop:
1. Attach your display to the external monitor port and turn it on.
2. Go to the Intel(R) G&M control panel and click Display > Multiple Displays.
3. Click Operating Mode and select Extended Desktop from the menu.
4. Click Apply, and OK to confirm the settings change.
Area
Click the appropriate monitor
icon and drag it to match the
physical arrangement you
wish to use (e.g. the second-
ary display may be extended
left/right/above/below
primary display).
Click General Settings to
make any adjustments re-
quired.
the
