Back Panel - ProScan PS8600P User Manual

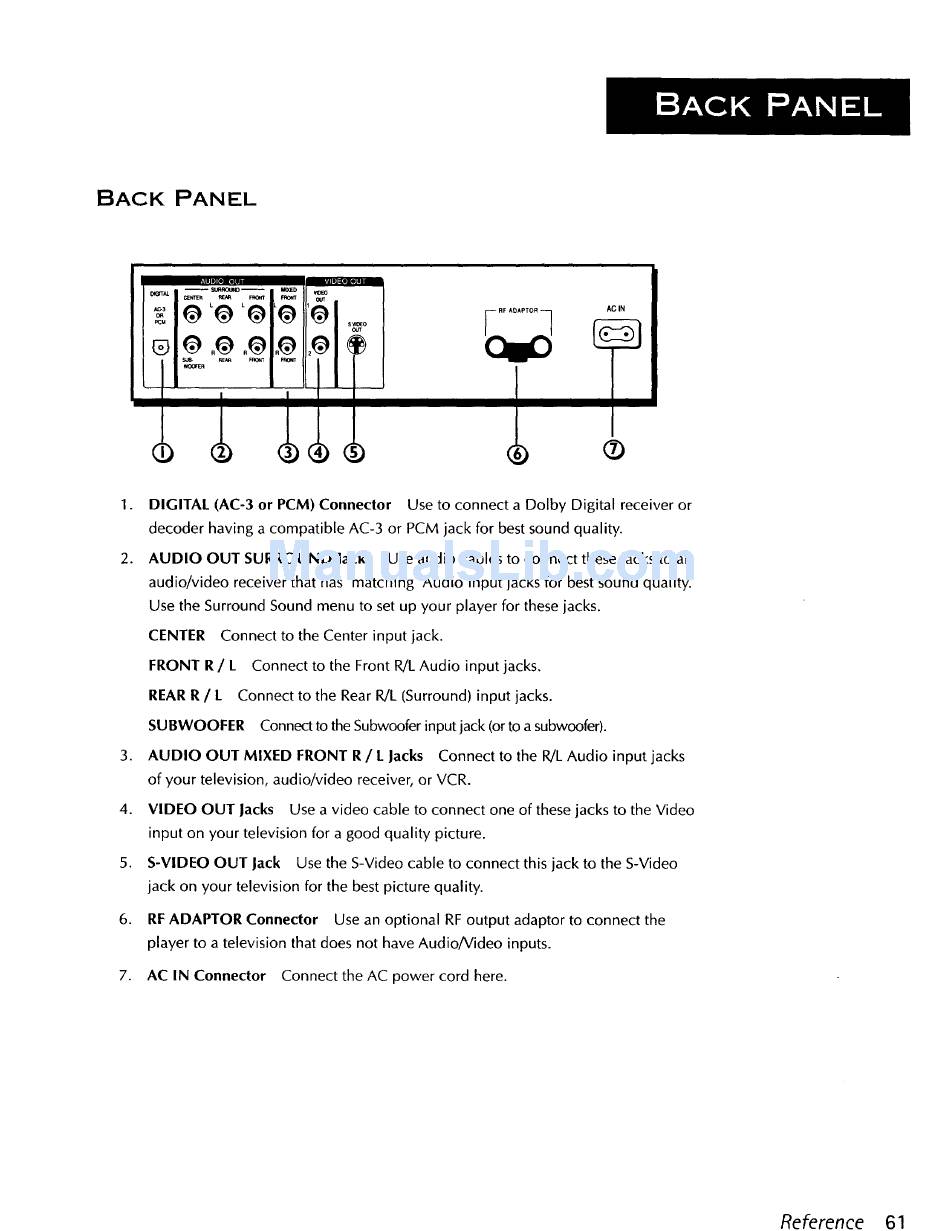

BACK PANEL
AC IN
(b ®
.
.
.
DIGITAL (AC-3 or PCM) Connector Use to connect a Dolby Digital receiver or
decoder having a compatible AC-3 or PCM jack for best sound quality.
AUDIO OUT SURROUND Jacks Use audio cables to connect these jacks to an
audio/video receiver that has matching Audio input jacks for best sound quality.
Use the Surround Sound menu to set up your player for these jacks.
CENTER Connect to the Center input jack.
FRONT R/L Connect to the Front R/L Audio input jacks.
REAR R / L Connect to the Rear R/L (Surround) input jacks.
SUBWOOFER Conned to the Subwoofer input jack (or to a subwoofer).
AUDIO OUT MIXED FRONT R / L Jacks Connect to the R/L Audio input jacks
of your television, audio/video receiver, or VCR.
4. VIDEO OUT Jacks Use a video cable to connect one of these jacks to the Video
input on your television for a good quality picture.
5. S-VIDEO OUT Jack Use the S-Video cable to connect this jack to the S-Video
jack on your television for the best picture quality.
.
RE ADAPTOR Connector Use an optional RF output adaptor to connect the
player to a television that does not have Audio/Video inputs.
7. AC IN Connector Connect the AC power cord here.
Reference 61
