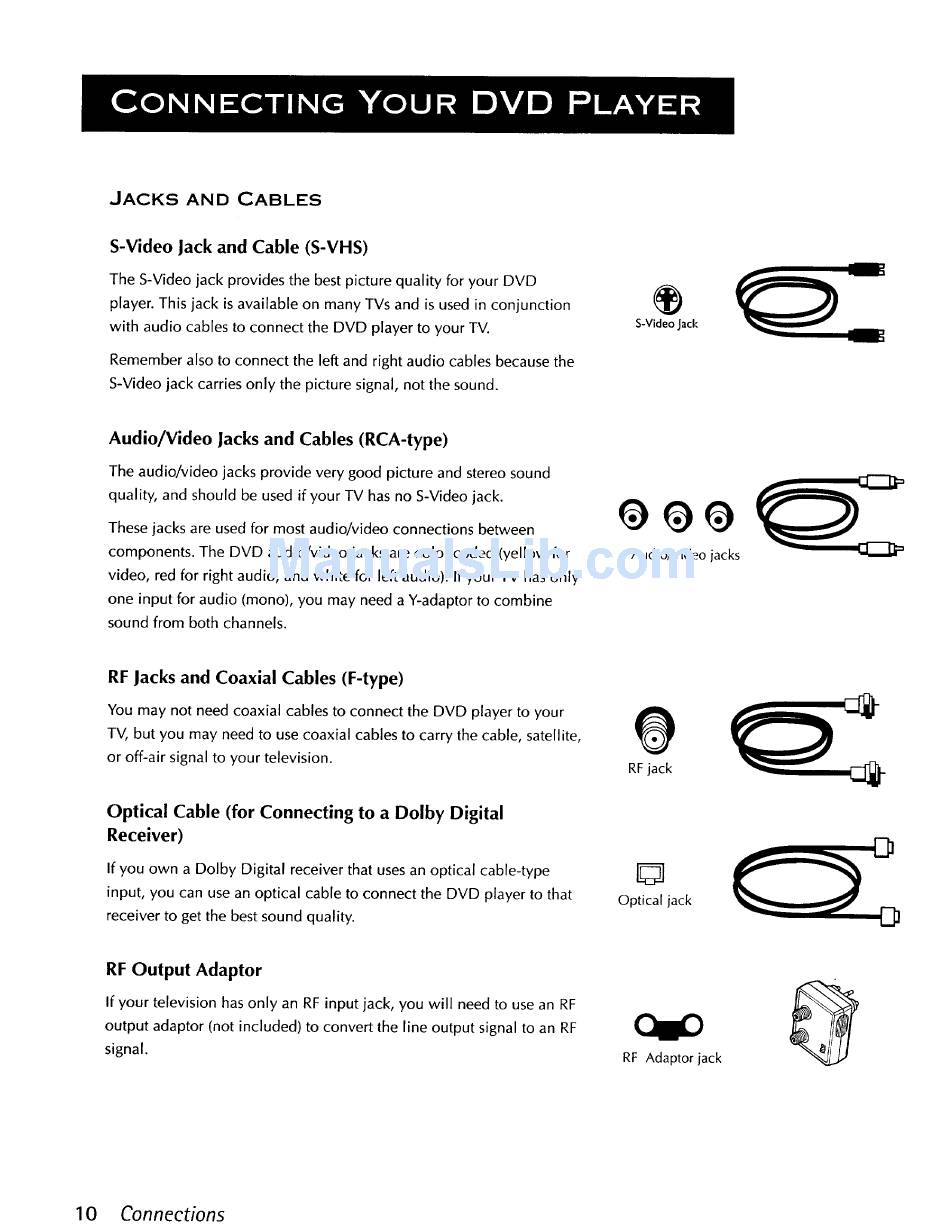

JACKS AND CABLES
S-Video Jack and Cable (S-VHS)
The S-Video jack provides the best picture quality for your DVD
player. This jack is available on many TVs and is used in conjunction
with audio cables to connect the DVD player to your TV.
Remember also to connect the left and right audio cables because the
S-Video jack carries only the picture signal, not the sound.
®
S-Video Jack
Audio/Video Jacks and Cables (RCA-type)
The audio/video jacks provide very good picture and stereo sound
quality, and should be used if your TV has no S-Video jack.
These jacks are used for most audio/video connections between
components. The DVD audio/video jacks are color coded (yellow for
video, red for right audio, and white for left audio). If your TV has only
one input for audio (mono), you may need a Y-adaptor to combine
sound from both channels.
Audio/Video jacks
RF Jacks and Coaxial Cables (F-type)
You may not need coaxial cables to connect the DVD player to your
TV, but you may need to use coaxial cables to carry the cable, satellite,
or off-air signal to your television.
Optical Cable (for Connecting to a Dolby Digital
Receiver)
If you own a Dolby Digital receiver that uses an optical cable-type
input, you can use an optical cable to connect the DVD player to that
receiver to get the best sound quality.
RF jack
5
Optical jack
D
D
RF Output Adaptor
If your television has only an RF input jack, you will need to use an RF
output adaptor (not included) to convert the line output signal to an RF
signal.
RF Adaptor jack
