16
DVD PLAYER
+
TV + VCR

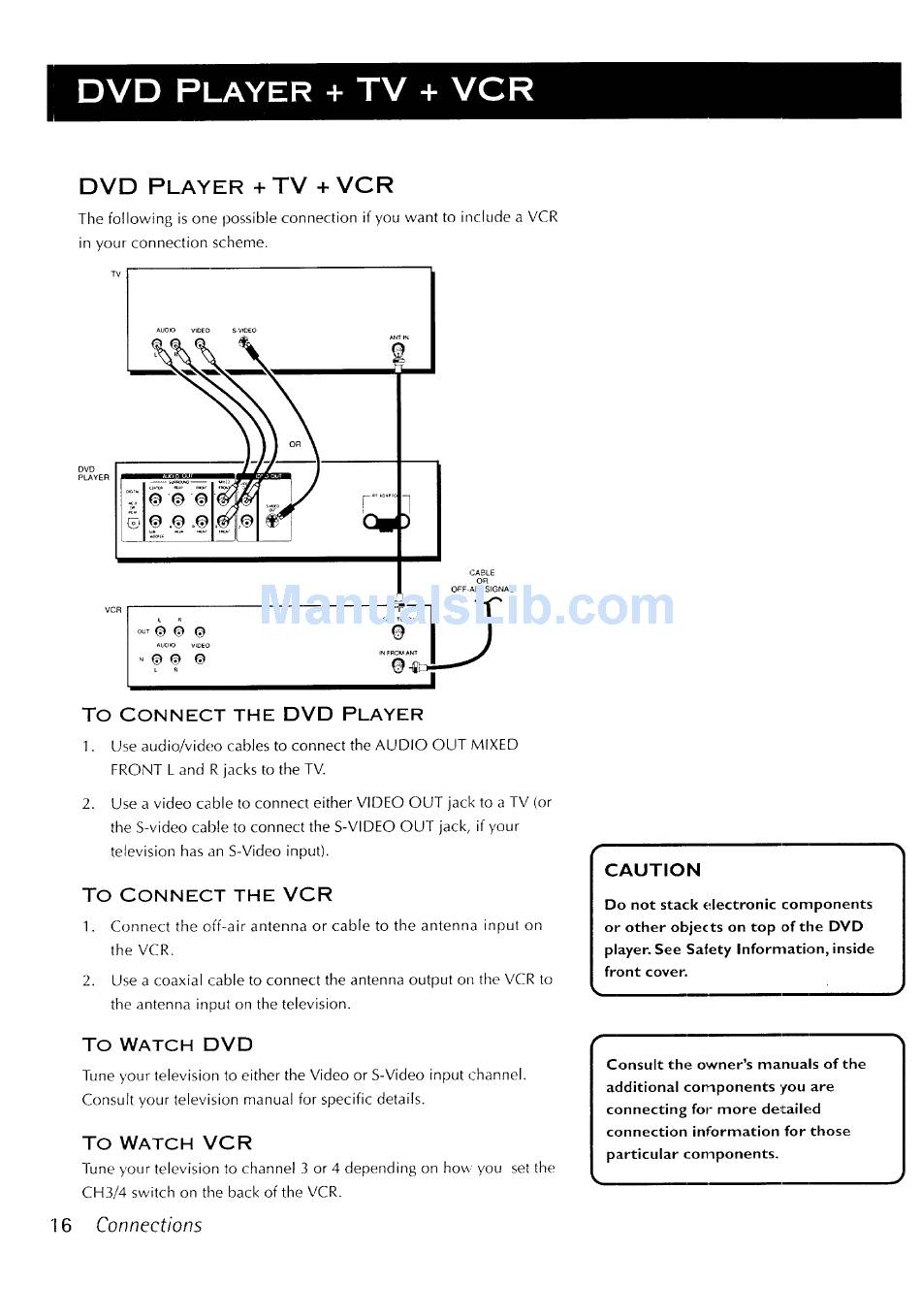

The following is one possible connection if you want to include a VCR
in your connection scheme.
TV
DVD
PLAYER
Auolo VIOEO SVqOEO
L
Jii
o,oooN.121
vcR[ .... _ 8o
AUDIO VIDEO
L
ANT rN
GABLE
OR
OFF AIR SIGNAL
7
!
To
CONNECT THE
DVD
PLAYER
1. Use audio!video cables to connect the AUDIO OUT MIXED
FRONT L and R jacks to the TV.
2. Use a video cable to connect either VIDEO OUT jack to a TV (or
the S-video cable to connect the S-VIDEO OUT jack, if your
television has an S-Video input).
To
CONNECT THE VCR
1. Connect the off-air antenna or cable to the antenna input on
the VCR.
2. Use a coaxial cable to connect the antenna output on the VCR to
the antenna input on the television.
To WATCH DVD
Tune your television to either the Video or S-Video input channel.
Consult your television manual for specific details.
To
WATCH VCR
Tune your television to channel 3 or 4 depending on how you set the
CH3/4 switch on the back of the VCR.
Connections
CAUTION
Do not stack electronic components
or other objects on top of the DVD
player. See Saiety InforlTlation, inside
front cover.
r •
Consult the owner's manuals of the
additional cor_ponents you are
connecting for more deltailed
connection information for those
particular components.
