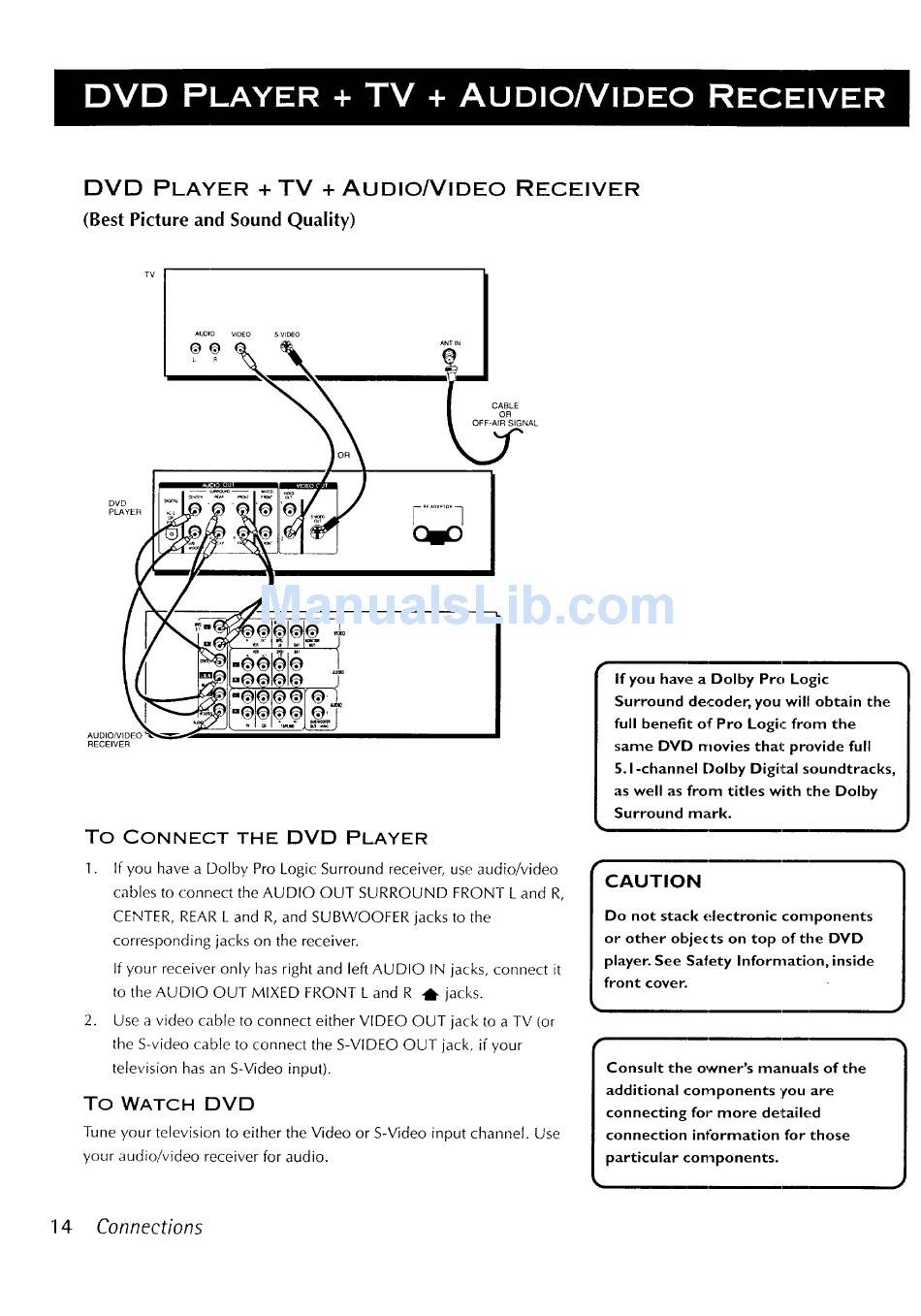

ProScan PS8600P User Manual page 16

DVD
PLAYER +
TV
+ AUBIONIDEO RECEIVER
(Best Picture and Sound Quality)
TV
AUDIO VIDEO S VIDEO
k R
CABLE
OR
OFF-AIR SIGNAL
DVD
AUDIONIDEC
RECEIVER
TO
CONNECT THE
DVD
PLAYER
1. If you have a Dolby Pro Logic Surround receiver, use audio/video
cables to connect the AUDIO OUT SURROUND FRONT L and R,
CENTER, REAR L and R, and SUBWOOFER jacks to the
corresponding jacks on the receiver.
If your receiver only has right and left AUDIO IN jacks, connect it
to the AUDIO OUT MIXED FRONT L and R / jacks.
2. Use a video cable to connect either VIDEO OUT jack to a TV (or
the S-video cable to connect the S-VIDEO OUT jack, if your
television has an S-Video input).
To WATCH DVD
Tune your television to either the Video or S-Video input channel. Use
your audio/video receiver for audio.
If you have a Dolby Pro Logic
Surround decoder, you wil_ obtain the
full benefit of Pro Logic from the
same DVD movies that: provide full
5. I-channel Dolby Digital soundtracks,
as well as from titles with the Dolby
Surround mark.
CAUTION
Do not stack electronic components
or other objects on top of the DVD
player. See :Safety Information, inside
front cover.
Consult the owner's manuals of the
additional components 'you are
connecting for more detailed
connection intbrmation for those
particular components.
14 Connections
