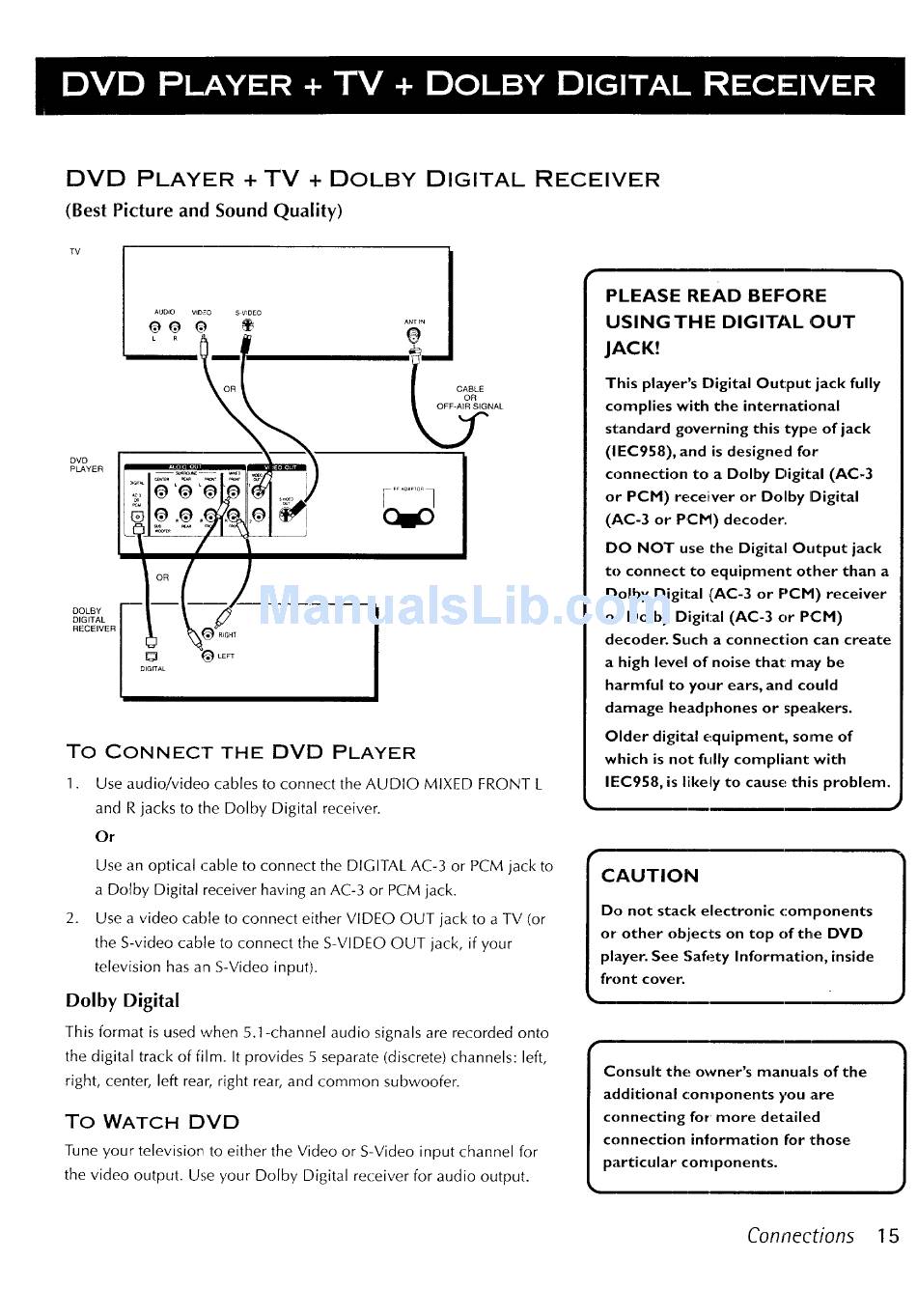

DVD
PLAYER +
TV +
DOLBY DIGITAL
(Best Picture and Sound Quality)
TV
AUDIO VID£O S V_DEO
OR
PLAYER
i.i._.=._.
DIGITAL
RECEIVER
AL
C _)8RL E AL
To
CONNECT THE
DVD
PLAYER
1.
Use audio/video cables to connect the AUDIO MIXED FRONT L
and P,jacks to the Dolby Digital receiver.
Or
2.
Use an optical cable to connect the DIGITAL AC-3 or PCM jack to
a Dotby Digital receiver having an AC-3 or PCM jack.
Use a video cable to connect either VIDEO OUT jack to a TV (or
the S-video cable to connect the S-VIDEO OUT jack, if your
television has an S-Video input).
Dolby Digital
This format is used when 5.1-channel audio signals are recorded onto
the digital track of film. It provides 5 separate (discrete) channels: left,
right, center, left rear, right rear, and common subwoofer.
To WATCH DVD
Tune your televisior_ to either the Video or S-Video input channel for
the video output. Use your Dolby Digital receiver for audio output.
RECEIVER
PLEASE READ BEFORE
USINGTHE DIGITAL OUT
JACK!
This player's Digital Out:put jack fully
complies with the international
standard governing this type of jack
(IEC958), and is designed for
connection to a Dolby Digital (AC-3
or PCM) receiver or Dolby Digital
(AC-3 or P,CH) decoder.
DO NOT use the Digital Output jack
to connect to equipment other than a
Dolby Digital (AC-3 or PCM) receiver
or Dolby Digital (AC-3 or PCM)
decoder. Such a connection can create
a high level of noise that: may be
harmful to your ears, and could
damage headphones or speakers.
Older digital equipment, some of
which is not fully compliant with
IEC9S8, is likely to cause this problem.
m
CAUTION
Do not stack electronic components
or other objects on top of the DVD
player. See Safety Information, inside
front cover.
Consult the owner's manuals of the
additional c:omponents you are
connecting for more detailed
connection information for those
particular components.
Connections 1 5
