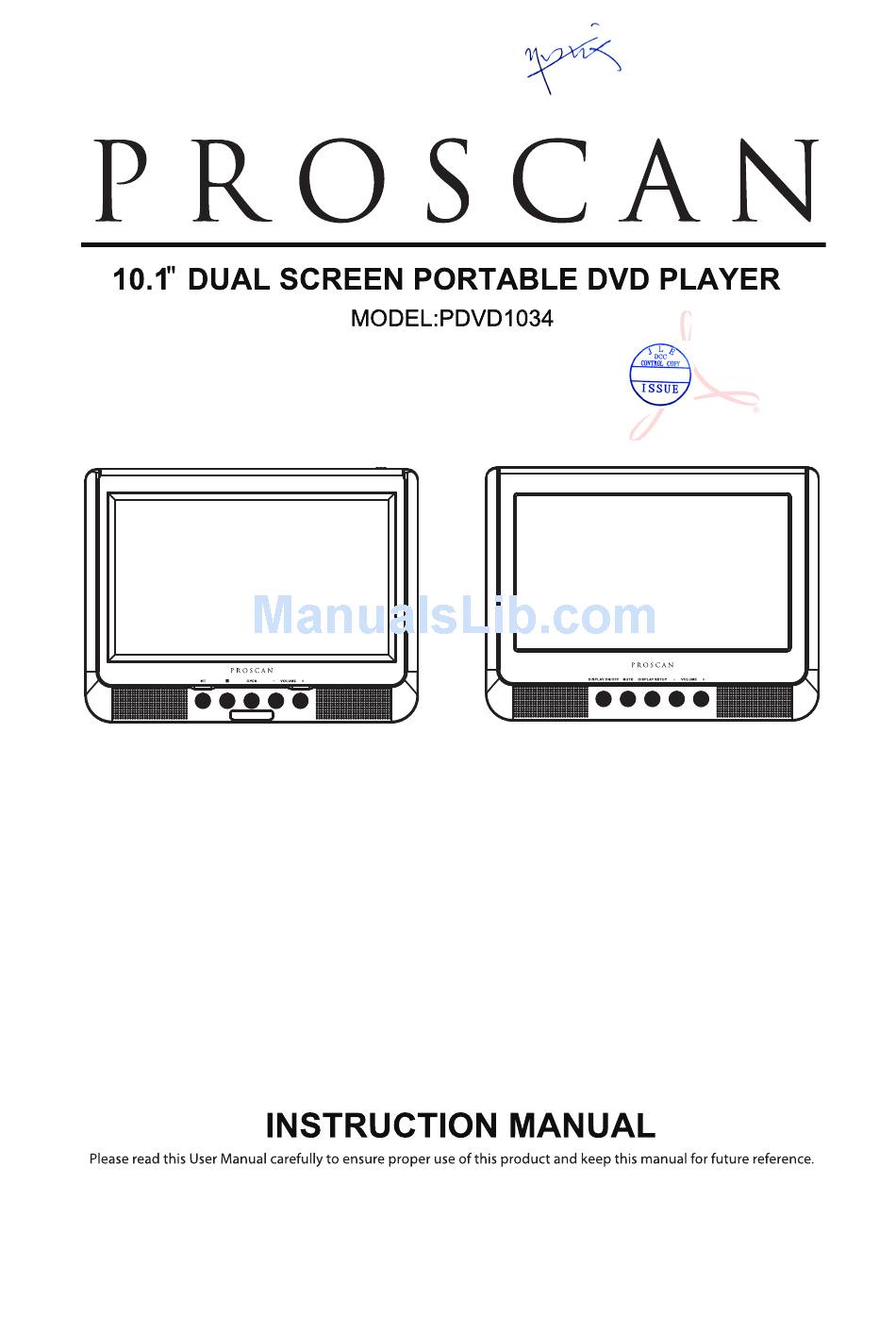

- Page 1 2015.09.2 08:11:14 +08'00' 2015.0 9.25 08:28:5 +08'00'...
-
Page 2: Important Safety Instructions
Important Safety Instructions The lightning flash with arrowhead symbol within an equilateral CAUTION triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’ s enclosure that may be of RISK OF ELECTRIC SHOCK sufficient magnitude to constitute a risk of electric shock to persons. - Page 3 Important Safety Instructions Before using the unit, be sure to read all operating instructions carefully. Please note that these are general precautions and may not pertain to your unit. For example, this unit may not have the capability to be connected to an outdoor antenna.
- Page 4 Important Safety Instructions 17) Overloading Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock. 18) Object and liquid entry Never push objects of any kind into the product through openings as they may touch dangerous voltage points or short out parts that could result in fire or electric shock.
-
Page 5: Notes On Handling
Important Safety Instructions NOTES ON MOISTURE CONDENSATION: NOTES ON HANDLING: • Moisture condensation damages the DVD When shipping the DVD player, always use player. Please read the following carefully. the original shipping carton and packing materials. For maximum protection, repack •... -
Page 6: About Discs
About Discs THE REGION NUMBER FOR THIS DVD PLAYER IS: See the following page for information regarding region numbers. PLAYABLE DISCS: The following discs can be played back on this DVD player: DISC TYPES: Data on most DVDs is divided into sections called titles and then into subsections called chapters, each of which is given a title or chapter number. -
Page 7: Product Overview
Product Overview MAIN UNIT: OPEN PLAY/PAUSE ( ): Press to switch between play and pause. STOP ( ): Press to stop playback. 2015.09.25 OPEN: Press to open the CD door. 08:29:36 VOL-: Press to decrease the volume level. +08'00' VOL+: Press to increase the volume level. Charge Indicator: Red indicator will turn on when the unit is charging, and turn off when the unit is fully charged. - Page 8 Product Overview MAIN UNIT: POWER DC IN PHONE AV OUT SD/MMC CARD DC OUT 15. ON/OFF: Power ON/OFF switch. Slide to ON position to power on, slide to OFF position to shut off. 16. PHONE: Headphone jack. 17. AV OUT: Audio/Video output jack. SD/MMC: Card slot.
-
Page 9: Remote Control
Remote Control 1. DISPLAY ON/OFF: To turn ON or OFF the screen. 2. TITLE: To display the title menu of current disc. Use the Direction and ENTER buttons to select and play the desired title. 3. DISC MENU: To display the menu of current disc. -
Page 10: Battery Precautions
Remote Control 23. REPEAT: Press repeatedly to set repeat mode. 24. A-B: During playback, press to set the beginning point of A-B repeat. Press again to set the end point of A-B repeat.The unit will start playback at the selected section.To resume normal playback, press the A-B button again. -
Page 11: Power Source
Power Source The unit has a built-in DC 7.4V 1900mAh Lithium-ion rechargeable battery. Recharge it as follows: Charging by supplied AC/DC adapter: 1. Connect the plug from the supplied AC/DC adapter to the DC IN Jack on the main unit. 2. -
Page 12: Making Connections
Making Connections 1. Connecting the main unit to a TV with A/V connection cable. DC IN PHONE AV OUT SD/MMC CARD DC OUT Video input jack (Yellow) Audio/Video Cable included Audio left channel input jack (White) Audio right channel input jack (Red) 2015.0 9.25 08:30:... - Page 13 Making Connections 2. Connecting the main unit to the secondary unit. MAIN UNIT: SECONDARY UNIT: 2015.09.25 08:30:12 +08'00' DC to DC cable (included) 3.5mm audio/video cable (included) Note: The secondary unit must be connected to the main unit, it can not be operated independantly.
-
Page 14: Operation
Operation MAIN UNIT: 1. Recharge or connect the unit to AC/DC Adaptor/ Car Adaptor as previous procedure. 2. Press the OPEN button on main unit to open the CD door. 3. Insert the disc to the center spindle with label side face up and close the lid. 4. - Page 15 Operation (CD/DVD)PROGRAM: 1. During CD or DVD playback, press the PROG (Program) button.The Program menu appears. 2. Use the numeric buttons to select and set the desired TT (Title), CH (Chapters), tracks you want of the CD or DVD. 3. Use the direction buttons to move to the next input. Repeat step 2 until programming is completed.
- Page 16 USB or SD/MMC Card Playback 1. Insert the USB Device or SD/MMC memory card into the USB port/card slot as shown on the figure below. DC IN PHONE AV OUT SD/MMC CARD DC OUT USB device (not included) 2015.09.25 08:30:31 +08'00' Note: The unit supports the following file formats: •...
-
Page 17: Setting Menu
Setting Menu Setting Menus: In fully stop mode, press the SETUP button on the remote control, the setting menu will appear on the screen as below. Use the Direction , , , , Numeric and ENTER buttons ENTER to select and highlight the function you need to set or reset. Press the button to or confirm the selection. - Page 18 Setting Menu 2015.09.25 08:30:41 +08'00' IN SPEAKER SETUP PAGE: If Speaker Setup is selected, press the button, the sub-setting menu will appear. ENTER Direction ENTER 1. If Downmix is selected, use the buttons set it to Lt/Rt; Stereo. • If set to Lt/Rt, the rear left or rear right channels will play on both Left and Right Speakers.
- Page 19 Setting Menu 2015.09.25 08:30:46 +08'00' IN VIDEO SETUP PAGE: ENTER 1. If “Picture” is selected, use the Direction and buttons to set the panel quality (Sharpness; Brightness; Contrast; Hue or Saturation) as desired. Sharpness: To adjust the sharpness of video output Brightness: To adjust the video brightness level on a scale of -20 to +20.
- Page 20 Setting Menu NTSC 2015.09.25 08:30:51 +08'00' IN PREFERENCE SETUP PAGE: 1. If TV Type is selected, use the Direction and ENTER buttons to set to PAL, AUTO or NTSC. (NOTE: The TV system in USA, Canada and Mexico is NTSC.) ENTER buttons to the 2.
- Page 21 Setting Menu ENTER 4. If Password is selected, press button to enter, the subsetting menu will appear. ENTER • If Password Mode is selected, use Direction and buttons to set it ON (activate the rating level setting) or OFF (Password is needed). •...
-
Page 22: Care And Maintenance
Care and Maintenance CARING FOR DISCS Treat the disc carefully. Handle the disc only by its edges. Never allow your fingers to contact with the shiny, unprinted side of the disc. 2015.09.25 08:31:05 +08'00' • Do not attach adhesive tape, stickers, etc. to the disc label. •... -
Page 23: Specifications
Specifications Power source of main unit ........Built-in DC 7.4V, 1900mAh Lithium-ion rechargeable battery, recharge by DC 12V, 1.5A AC Adapter ..............Input: 100-240V~, 50/60Hz Output: DC 12V, 1.5A Car Adapter ..............Input Voltage: DC Output Voltage: DC 12V, 2A Power source of remote control: ......DC 3V, 2 x AAA size batteries Disc compatibility: ............DVD/VCD/SVCD/DVCD/CD/CD-R/CD-RW/ DVD±R/DVD±RW... - Page 24 Mounting Strap Installation Step 1 Step 1 Go the strap through the two holes on both sides of the rear side of the player as shown on the above figure. Step 2 Pull out 2015.09.25 08:31:17 +08'00' Go the strap from gap and go out from the rear side of the gap as shown on the above figure.
