Riser Card
To remove the desktop riser card:
1. Remove the floppy disk drive as described previously in Chapter 2, "Maintaining System
Devices," leaving the cables attached.
2. Remove the system hard disk drives as described previously in Chapter 2, "Maintaining
System Devices," leaving the cables attached.
3. Remove all boards connected to the riser card. Note the position of each board as you
remove it. To remove the ISA boards in the ISA I/O panel, remove the I/O lock bracket

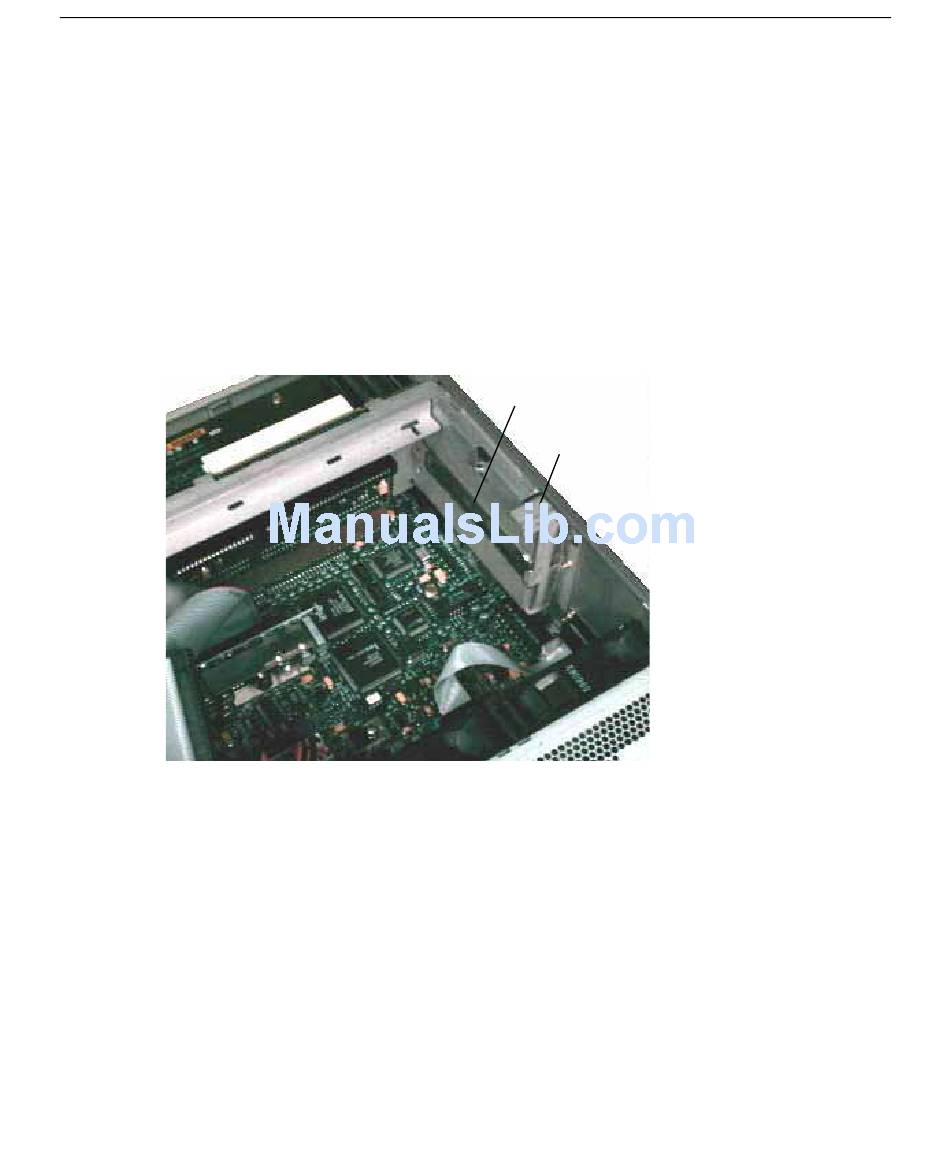

(note orientation) shown in the following figure.
4. Lift up and remove the peripheral brace shown in the following figure.
5. Disengage the riser card from the system board, and remove the card from the base unit.
Blanking Plate
I/O Lock
Bracket
21
