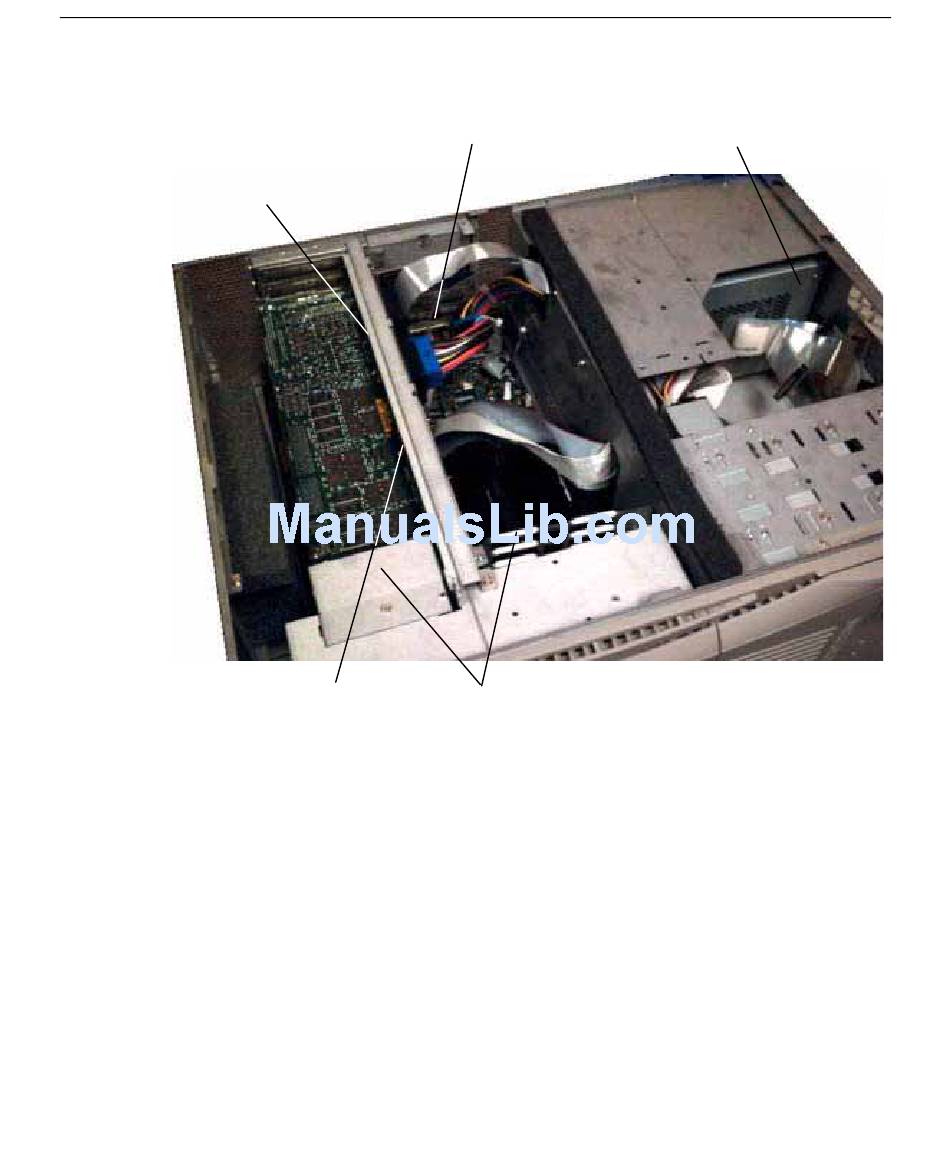

5. Set the cover and panels aside. The following figure shows inside the base unit.
Riser Card
(beneath
brace)
Peripheral Brace
To remove the PCI access panel from a deskside base unit:
1. Power off the base unit and remove the top cover and side panel. Lay the base unit on
the right side.
2. Remove the two screws at the bottom of the unit and the screw behind the PCI access
panel as shown in the following figure.
3. Slide the PCI access panel to the back of the base unit and remove it.
External SCSI
Power Supply
Connector
Option Card Guides
