Intergraph TD-x20 System Reference Manual page 18

12

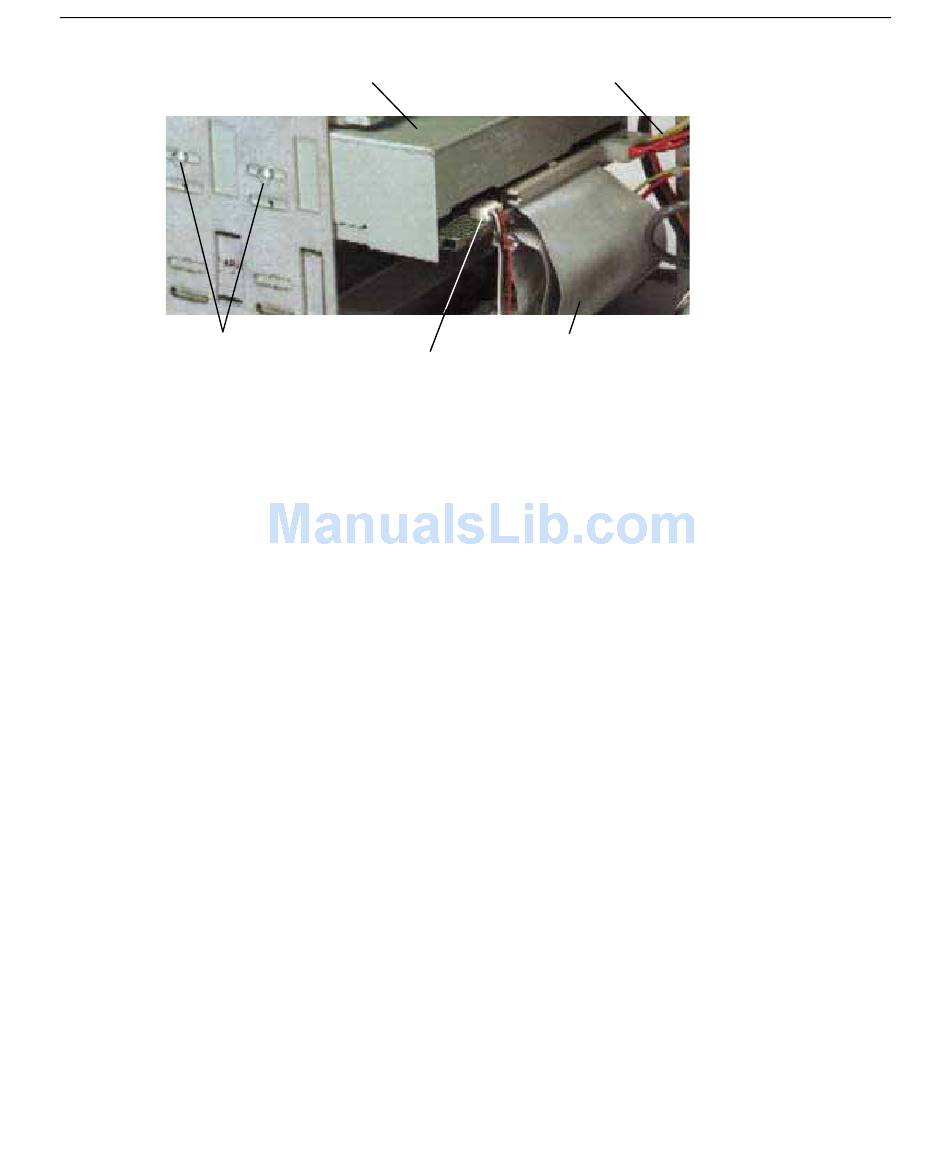

Screws
3. Disconnect the audio cable from its system board connector.
4. Remove the screws holding the CD-ROM drive to each side of the chassis.
5. Slide the CD-ROM drive forward and out of the base unit.
To install a new CD-ROM drive:
1. Disable SCSI termination and set the SCSI ID. Refer to the vendor's CD-ROM drive
documentation for instructions.
2. Insert the new CD-ROM drive through the front panel.
3. Secure the CD-ROM drive to the chassis using the screws removed previously.
4. Connect the SCSI cable and power cable to the CD-ROM drive. The SCSI cable is
keyed to ensure proper insertion, so that the red stripe (pin 1) is adjacent to the power
connector.
5. If installing an Intergraph CD-ROM drive, the audio cable is already connected to the
drive. Connect the loose end of the audio cable to the system board connector.
6. If installing a non-Intergraph CD-ROM drive, connect the audio cable delivered with
the new CD-ROM drive to the connectors on the drive and the system board.
7. Replace the floppy disk drive.
CD-ROM Drive
Audio Cable
Power Cable
IDE Cable
