20
SCSI Termination Card (Desktop)
The SCSI termination card terminates the internal SCSI cable chain. If external SCSI
devices are connected, the card disables termination and acts as a pass-through external
SCSI connector.
To remove the SCSI termination card:
1. Disconnect the external SCSI cable from the external SCSI port.
2. Remove the screws securing the external SCSI port to the back panel.
3. Note how the card is attached. Slide the card out of the chassis and disconnect the SCSI
cable.

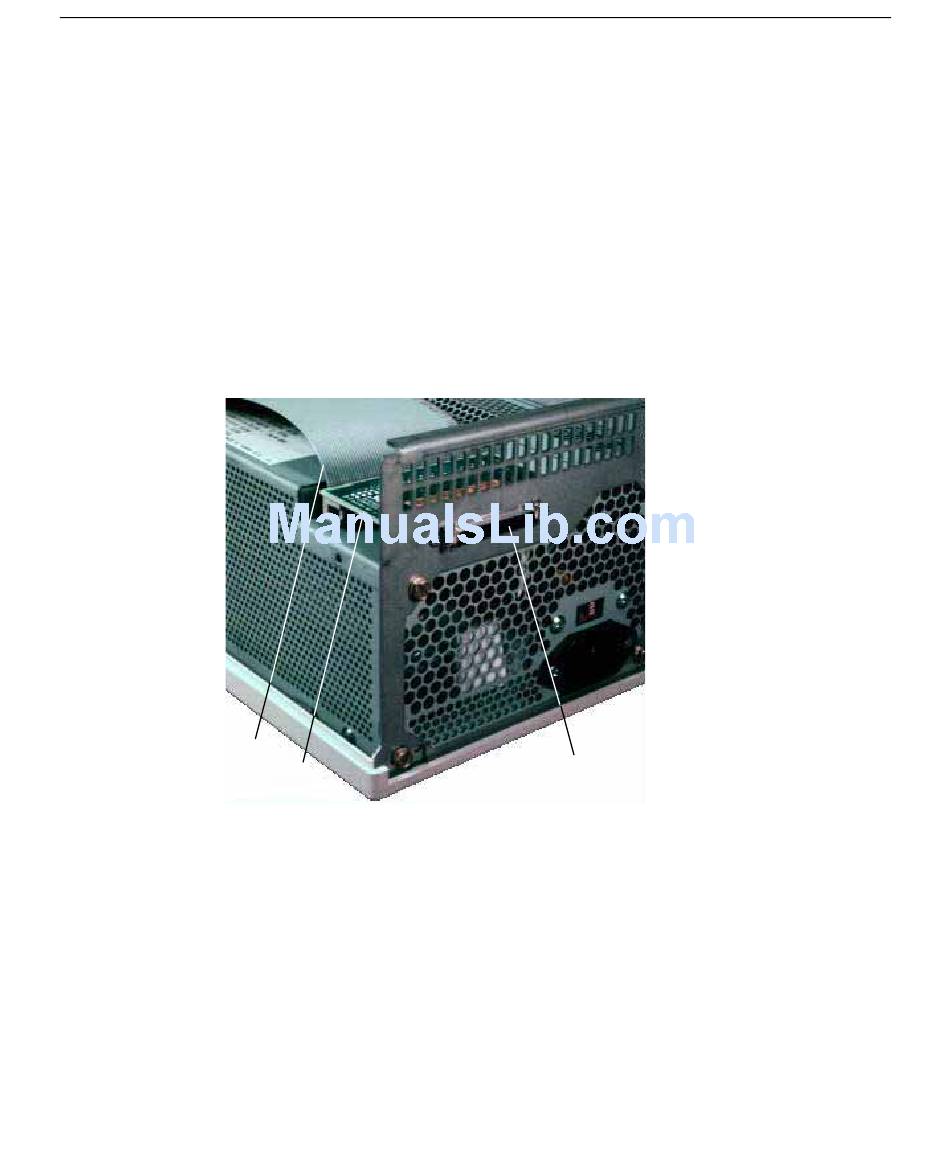

SCSI Cable
SCSI Termination
Card
To install a SCSI termination card:
1. Connect the internal SCSI cable to the card.
2. Insert the card into the chassis and mount the external SCSI port to the back panel using
the screws removed previously.
3. After closing the base unit, connect the external SCSI cable to the external SCSI port.
External SCSI Port
