16
2. Pull the drive forward and lift it out of the base unit, then set the drive on a flat antistatic
surface.
3. Remove the bracket screws that secure the drive to the bracket.
To install new hard disk drives:
1. Disable SCSI termination and set the SCSI ID. Refer to the documentation delivered
with the drive for instructions.
2. Secure the new drives to the support bracket using the screws removed previously.
3. Attach the cables to the new drives. The SCSI cable is keyed to ensure proper insertion,
so that the red stripe (pin 1) is adjacent to the power connector.
4. Install the drives and bracket into the base unit, inserting the tabs into the slots.
5. In a deskside system, secure the drive to the chassis by installing the chassis screw.

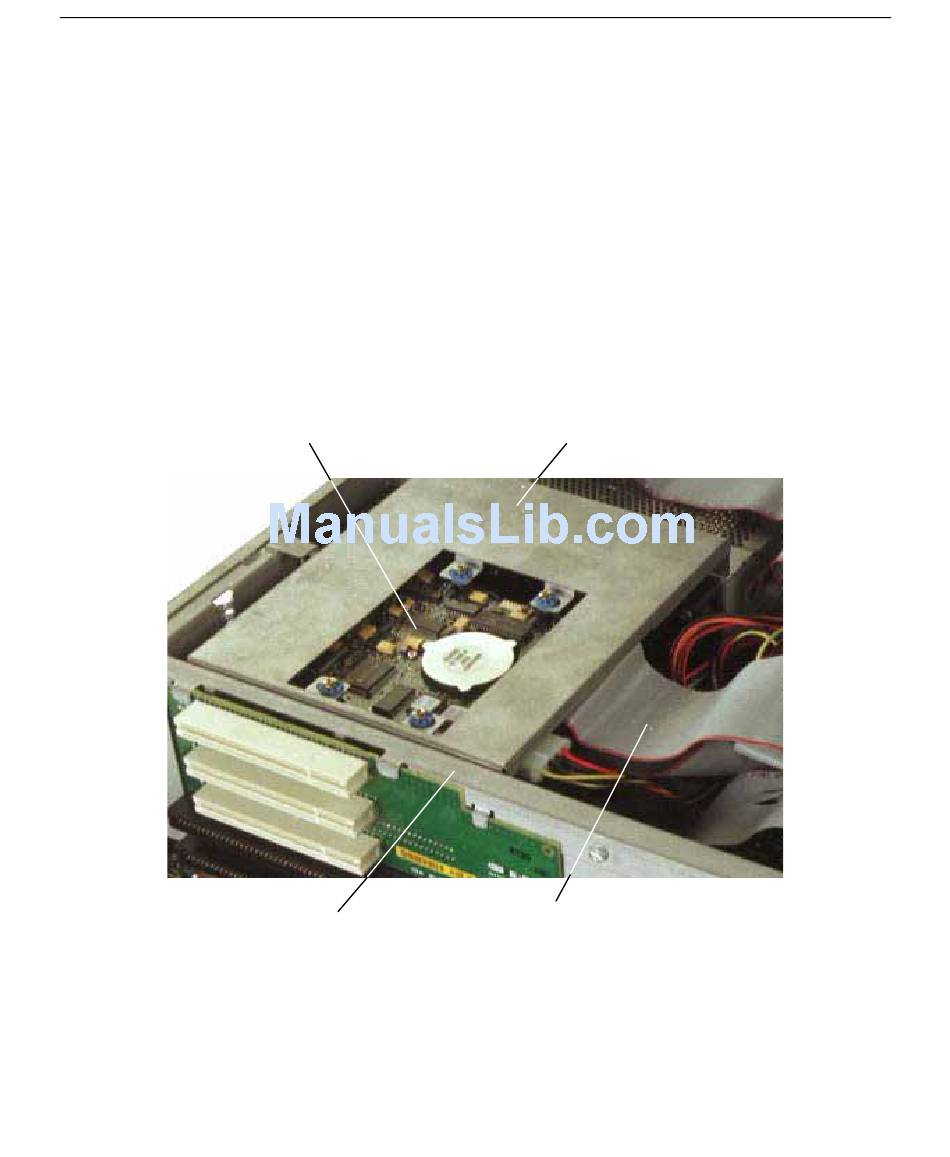

System Hard
Disk Drive
6. After closing the base unit and restarting the system, partition and format the system
hard disk drives as described in the operating system documentation, if necessary.
Peripheral
Brace
System Hard
Disk Drive Bracket
SCSI Cable
