Device in the Optional Device Bay (Desktop)

An optional device bay, located under the CD-ROM drive in a desktop system, is designed to
hold an optional peripheral device.
To remove a device in the optional device bay:
1. Disconnect the cables from the device. Refer to the documentation delivered with the
device for more information.
2. Remove the screws securing the device to the right side of the chassis and slide the
device forward and out of the base unit.
3. If removing a 5 1/4-inch wide device, remove the screws securing the peripheral guide
to the device, and remove the peripheral guide.
4. If removing a 3 1/2-inch wide device, remove the screws securing the device to the
optional disk bracket, and remove the device.

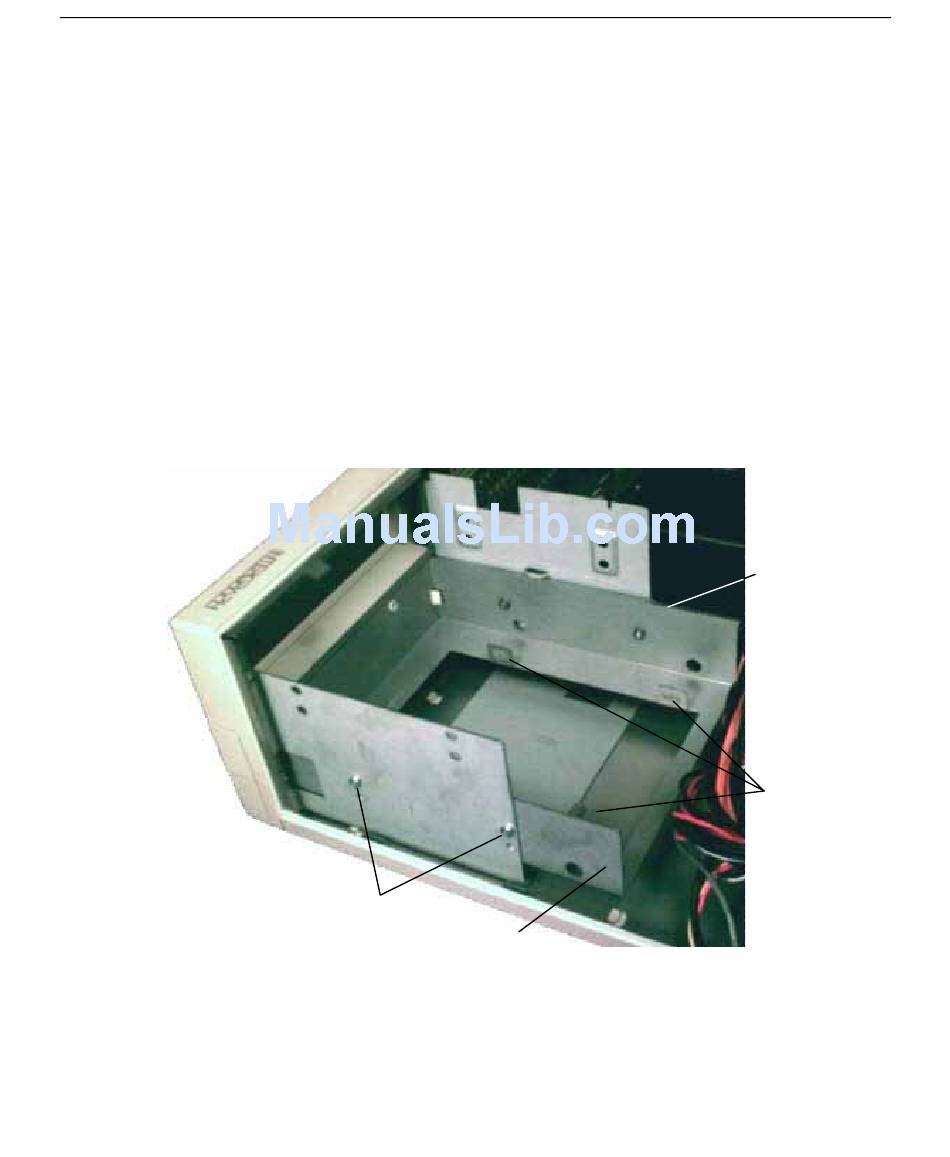

Screws
Optional Disk Bracket
13
Peripheral
guide
Tabs
