Auxiliary Hard Disk Drives (Deskside)

Auxiliary hard disk drives are located in the bays above the CD-ROM drive.
To remove an auxiliary hard disk drive:
1. Disconnect the power and SCSI cables from the hard disk drive.
2. Remove the screws holding the drive to the chassis.
3. Slide the disk drive assembly out of the base unit.
4. Remove the screws attaching the hard disk drive to the bracket.

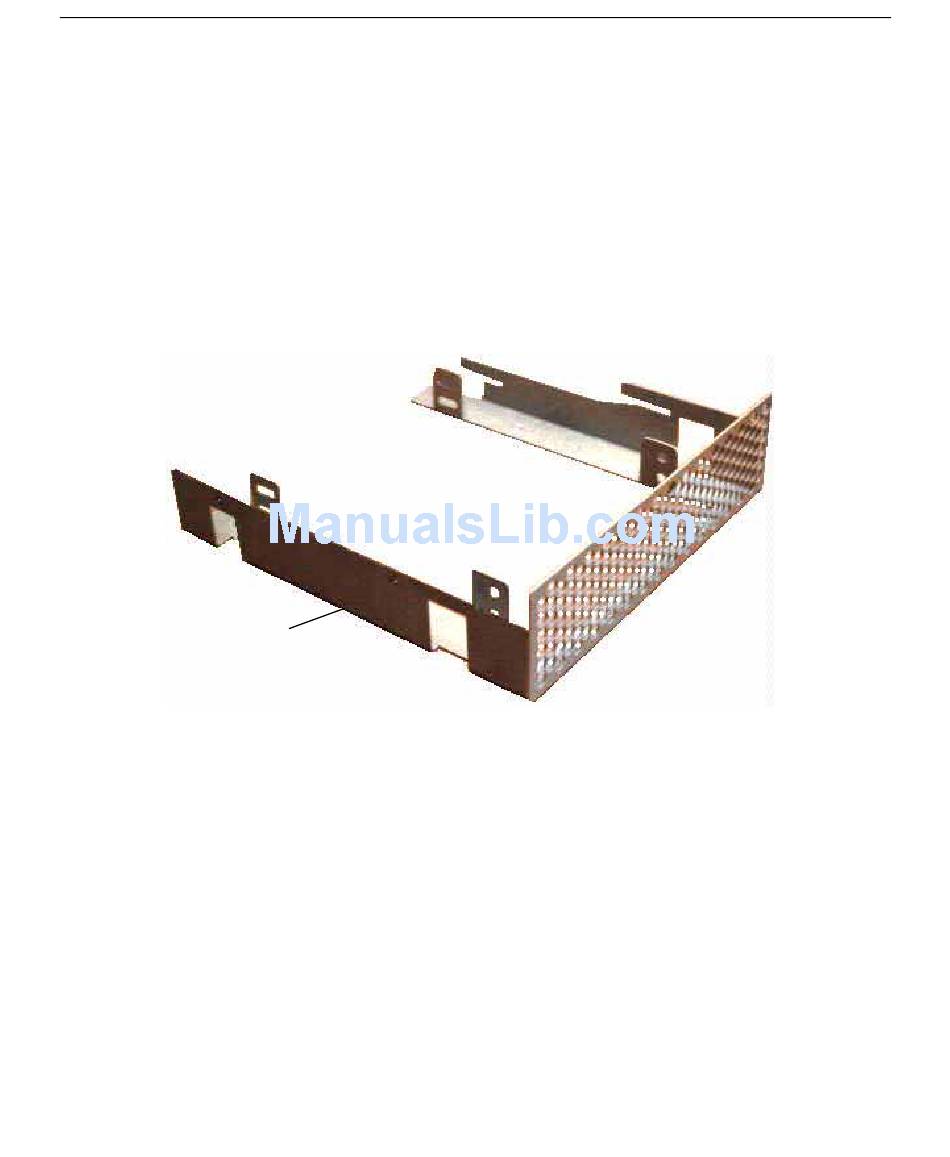

Bracket
To install a new auxiliary hard disk drive:
1. Disable SCSI termination and set the SCSI ID. Refer to the documentation delivered
with the device for details.
2. Secure the new drive to the bracket using the screws removed previously.
3. Slide the drive assembly into the chassis; then secure it to the chassis with the screws
removed previously.
4. Attach the cables to the new disk drive. The SCSI cable is keyed to ensure proper
insertion. The red stripe (pin 1) must be adjacent to the power connector.
5. After closing the base unit and restarting the system, partition and format the system
hard disk drive as described in the operating system documentation.
