Physically Linking Artist Series Devices; Removing Side Panels (Left); Removing Riser Brackets - Euphonix EuCon User Manual

professional control surface
Two larger, detached riser brackets elevate and angle the unit more than the
foldout legs. Use moderate force to snap them into the bottom panel as shown
in Figure 2-1.
To remove the riser brackets:
1. Slide the side panels off (Figure 2-2 left).

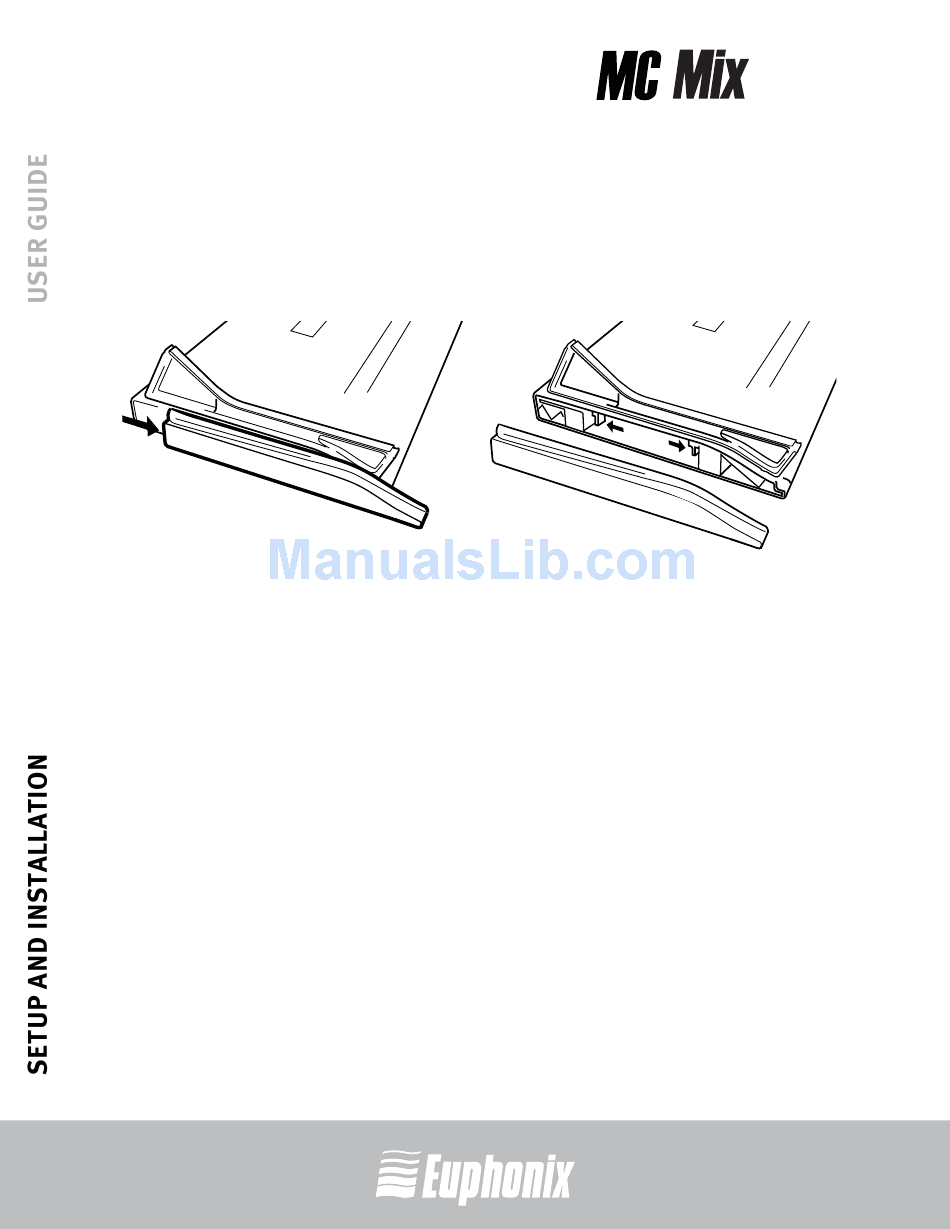

Figure 2-2 Removing side panels (left); removing riser brackets
14
2. Press the tabs to release the riser brackets (Figure 2-2 right).
3. Lift the riser bracket out of the MC Mix to remove
2.1.2

Physically Linking Artist Series Devices

MC Mixes can be physically attached to each other to form a larger, stable control
surface. An MC Control can also be joined to the MC mixes. See Surfaces on
page 41 to use EuControl to link the surfaces in the desired order.
Artist Series
