Fader Strips

The MC Mix provides eight fader strips, each with a touch-sensitive fader and a
touch-sensitive knob, that control tracks in an audio or video application.
4.3.1

Display Screens

At the top of each fader strip is a 128 x 64 pixel Organic Light Emitting Diode
(OLED) display that shows the following items:
meter
knob position
Meter shows clip, peak, and normal values. It can show mono, stereo, or surround
sound tracks.
Track name shows the name of the track. When a fader is touched, it shows the
value of the fader. After releasing the fader it reverts to showing the track name.
Knob name shows the name of the parameter currently on the knob. When a
knob is touched, it shows the value of the parameter. After releasing the knob it
reverts to showing the parameter name.
Knob position graphically shows the value of the knob.
Auto mode shows the track's automation mode (blank = neither read nor write,
r = read, w = write, rw = read/write).
Attention indicator is a line under the track name that shows this strip contains
the attentioned track (see Channel Mode on page 34).
OLED Dimming
To preserve OLED life, the channel displays dim when not in use. The time until
dimming begins can be set in Preferences on page 51.
track
name/value
5.1-channel
knob meter
name/value with peak
automation mode

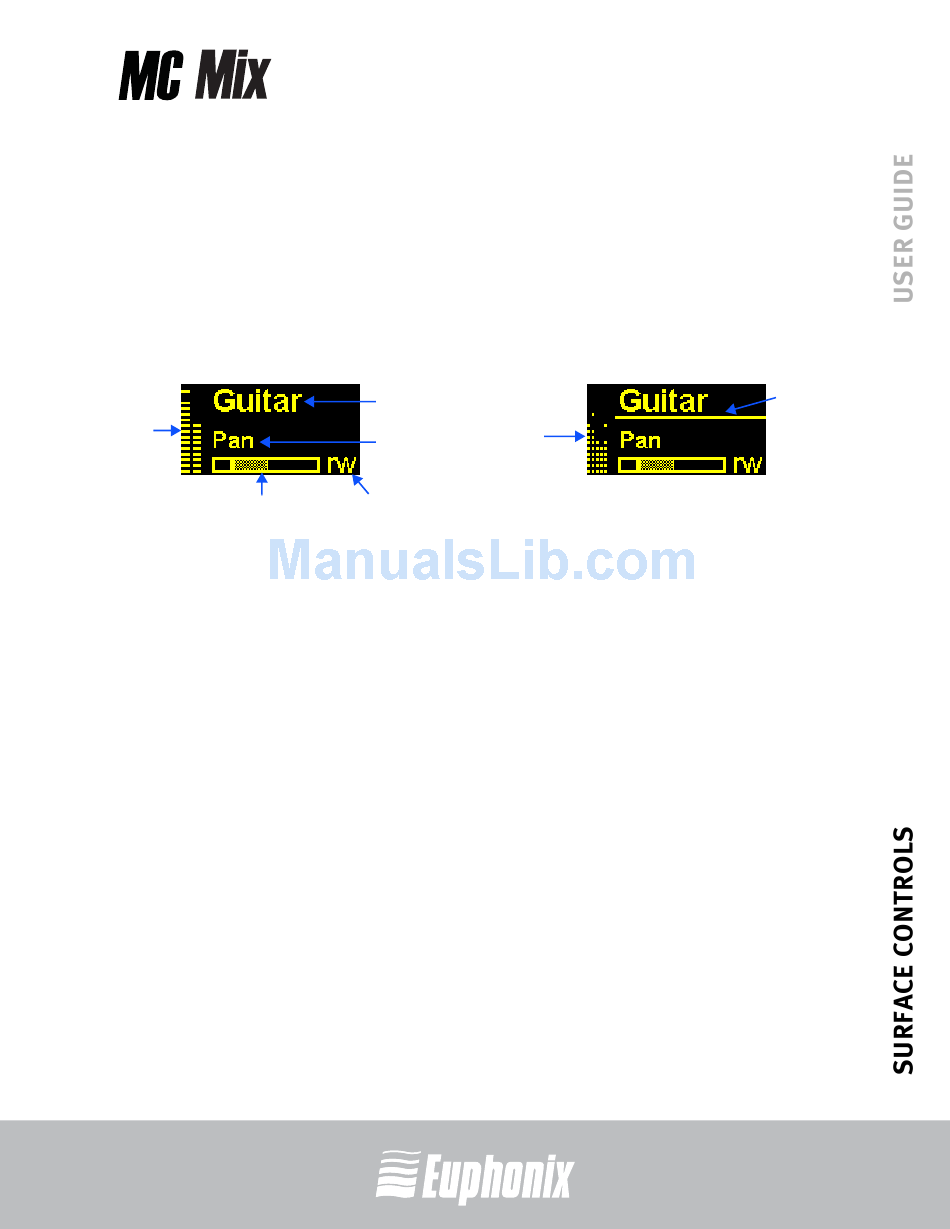

Figure 4-2 Fader display indicators
Artist Series
attention
indicator
