2. Connect the cables for peripheral devices to the base unit and to the peripheral devices, as
necessary. Refer to the following figures of the ports on the back of the desktop and
deskside systems.
NOTE Additional information on connecting external SCSI devices is provided later in this chapter.
CAUTION If you are using cables not supplied by Intergraph, you must use shielded cables to prevent
excessive electromagnetic interference (EMI). Intergraph cables are designed to reduce the
amount of EMI produced by the system.
3. Connect the video cable for the monitor to the video port.
4. When connecting cables to the base unit, note the following:
All cable ports on the base unit and on other Intergraph equipment are keyed or
molded to ensure proper cable attachment. If a cable is not attaching easily, ensure
that you are aligning the cable connector correctly with the port.
When connecting a multimedia keyboard to the base unit, the cable labeled Mic
connects to the Microphone jack, and the cable labeled Audio connects to the Line
Out jack.
The ports on the back on the base unit are labeled using PC 95 compliant icons.

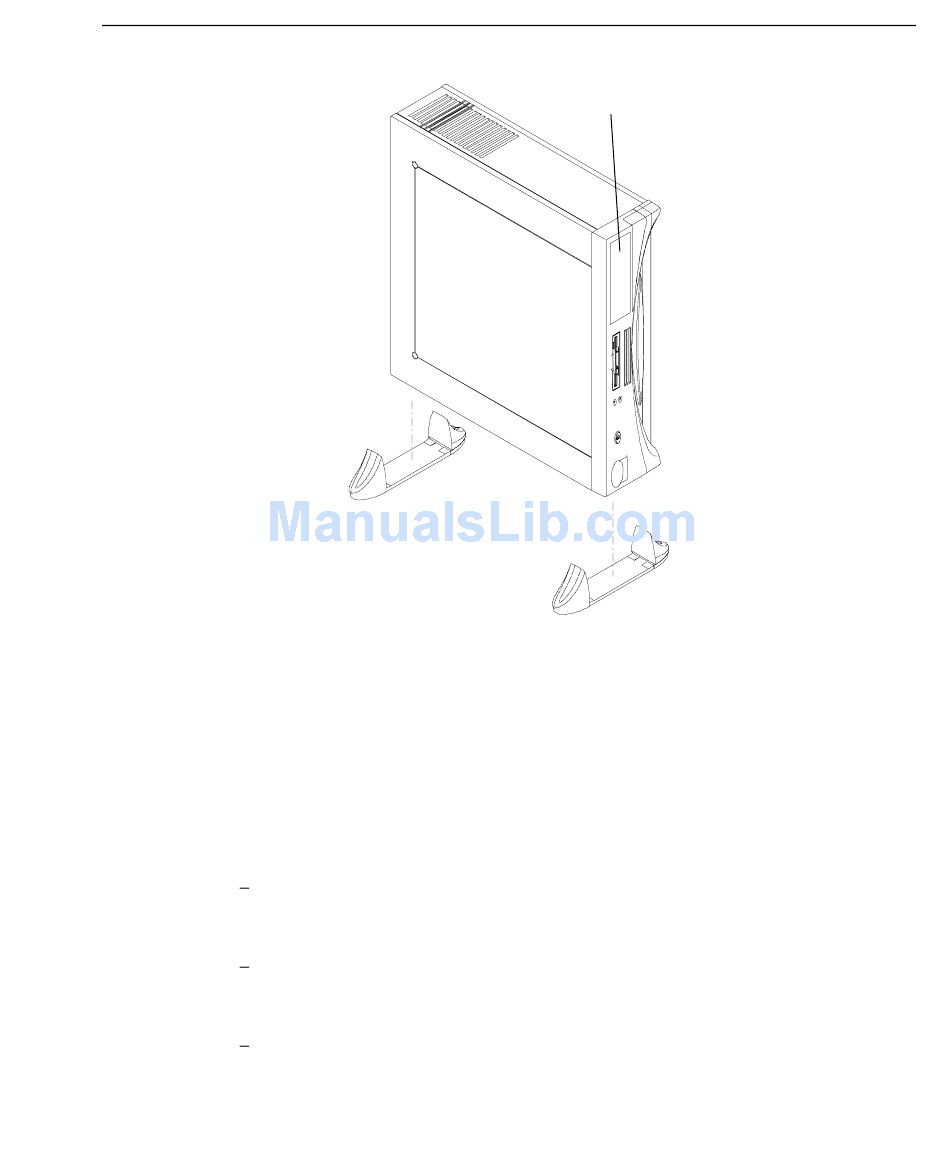

CD-ROM Drive
3
