Assembly - Pro-Form CROSSWALK ADVANCED 525s User Manual

Assemblyrequirestwo persons.Setthetreadmill ina cleared areaandremove allpacking materials, Donot
dispose ofthepacking materials u ntilassembly i s compbted,
Note:Theunderside o fthetreadmill walking beltiscoated withhighoperformance lubricant, During shipping, a
small a mount o f lubricant maybetransferred t othetopofthewalking beltortheshipping carton, T hisis a normal
condition anddoesnotaffecttreadmill performance, if thereis lubricant ontopofthewalking belt,simply wipeoff
thelubricant witha softclothanda mild,nonoabrasive cleaner,
E

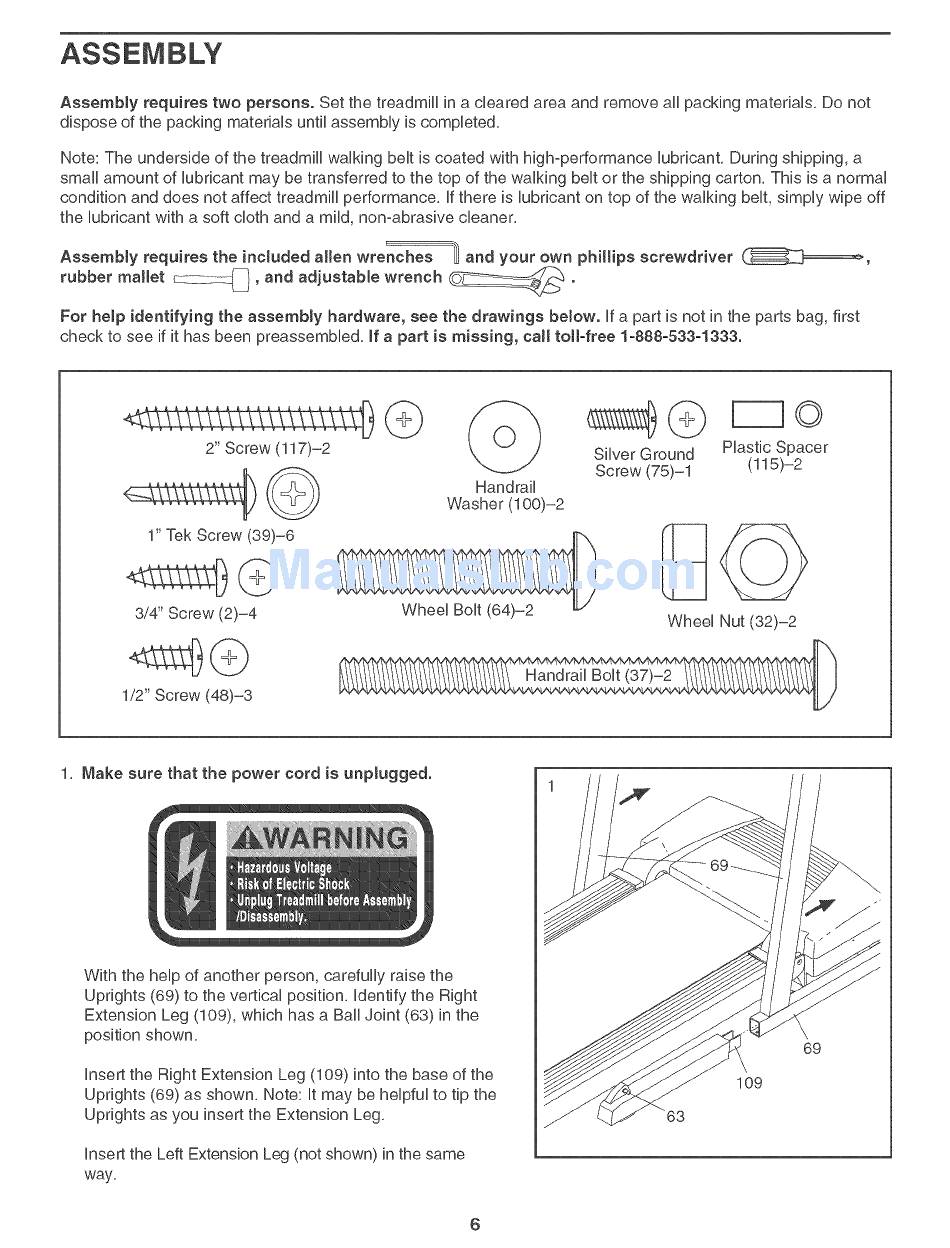

Assembly requires the included allen wrenches _ and your own phillips screwdriver
rubber mallet _x(_, and adjustable wrench _ .
For help identifying the assembly hardware, see the drawings below, if a part is not in the parts bag, first
check to see if it has been preassembled, If a part is missing, call toll-free 1-888-533-1333.
2" Screw (117)-2
1" Tek Screw (39)-6
3/4" Screw (2)-4
1/2" Screw (48)-3
Silver Ground Plastic Spacer
Screw (75)-1 (115)-2
Handrail
Washer (100)-2
Wheel Bolt (64)-2
Wheel Nut (32)-2
Handrail Bolt (37)-2
1. Make sure that the power cord is unplugged.
With the help of another person, carefully raise the
Uprights (69) to the vertical position, identify the Right
Extension Leg (109), which has a Ball Joint (63) in the
position shown,
insert the Right Extension Leg (109) into the base of the
Uprights (69) as shown, Note: it may be helpful to tip the
Uprights as you insert the Extension Leg,
insert the Left Extension Leg (not shown) in the same
way,
69
109
