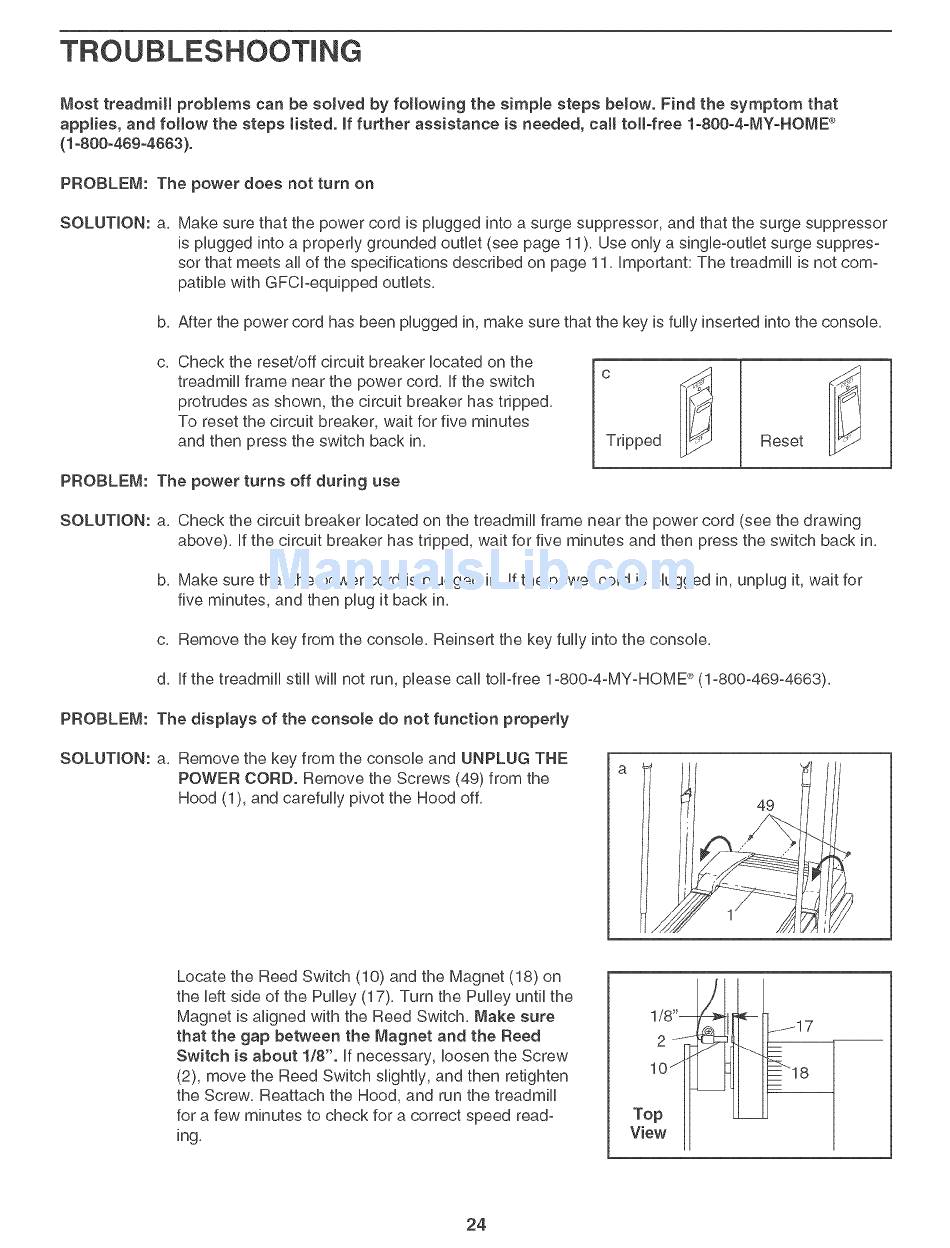

TROUBLESHOOTmNG
Most treadmill problems can be solved by following the simple steps below. Find the symptom that
applies, and follow the steps listed, mf f urther assistance is needed, call toll-free 1-800-4-MY-HOME ®
(1-800-489-4883).
PROBLEM: The power does not turn on
Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor
is plugged into a properly grounded outlet (see page 11 ), Use only a single-outlet surge suppres-
sor that meets all of the specifications described on page 11, important: The treadmill is not com-
patible with GFCI-equipped outlets,
SOLUTmON: a,
b, After the power cord has been plugged in, make sure that the key is fully inserted into the console,
Check the reset/off circuit breaker located on the
treadmill frame near the power cord, if the switch
protrudes as shown, the circuit breaker has tripped,
To reset the circuit breaker, wait for five minutes
and then press the switch back in,
C,
PROBLEM: The power turns off during use
Tripped
Reset
SOLUTION: a, Check the circuit breaker located on the treadmill frame near the power cord (see the drawing
above), if the circuit breaker has tripped, wait for five minutes and then press the switch back in,
b, Make sure that the power cord is plugged in, if the power cord is plugged in, unplug it, wait for
five minutes, and then plug it back in,
c, Remove the key from the console, Reinsert the key fully into the console,
d, if the treadmill still will not run, please call toll-free 1-800-4-MY-HOME _)(1-800-469-4668),
PROBLEM: The displays of the consote do not function property
SOLUTION: a, Remove the key from the console and UNPLUG THE
a
POWER CORD. Remove the Screws (49) from the
Hood (1), and carefully pivot the Hood off, 49
/
Locate the Reed Switch (10) and the Magnet (18) on
the left side of the Pulley (17), Turn the Pulley until the
Magnet is aligned with the Reed Switch, Make sure
that the gap between the Magnet and the Reed
Switch is about 1/8". if necessary, loosen the Screw
(2), move the Reed Switch slightly, and then retighten
the Screw, Reattach the Hood, and run the treadmill
for a few minutes to check for a correct speed read°
ing,
View II
24
