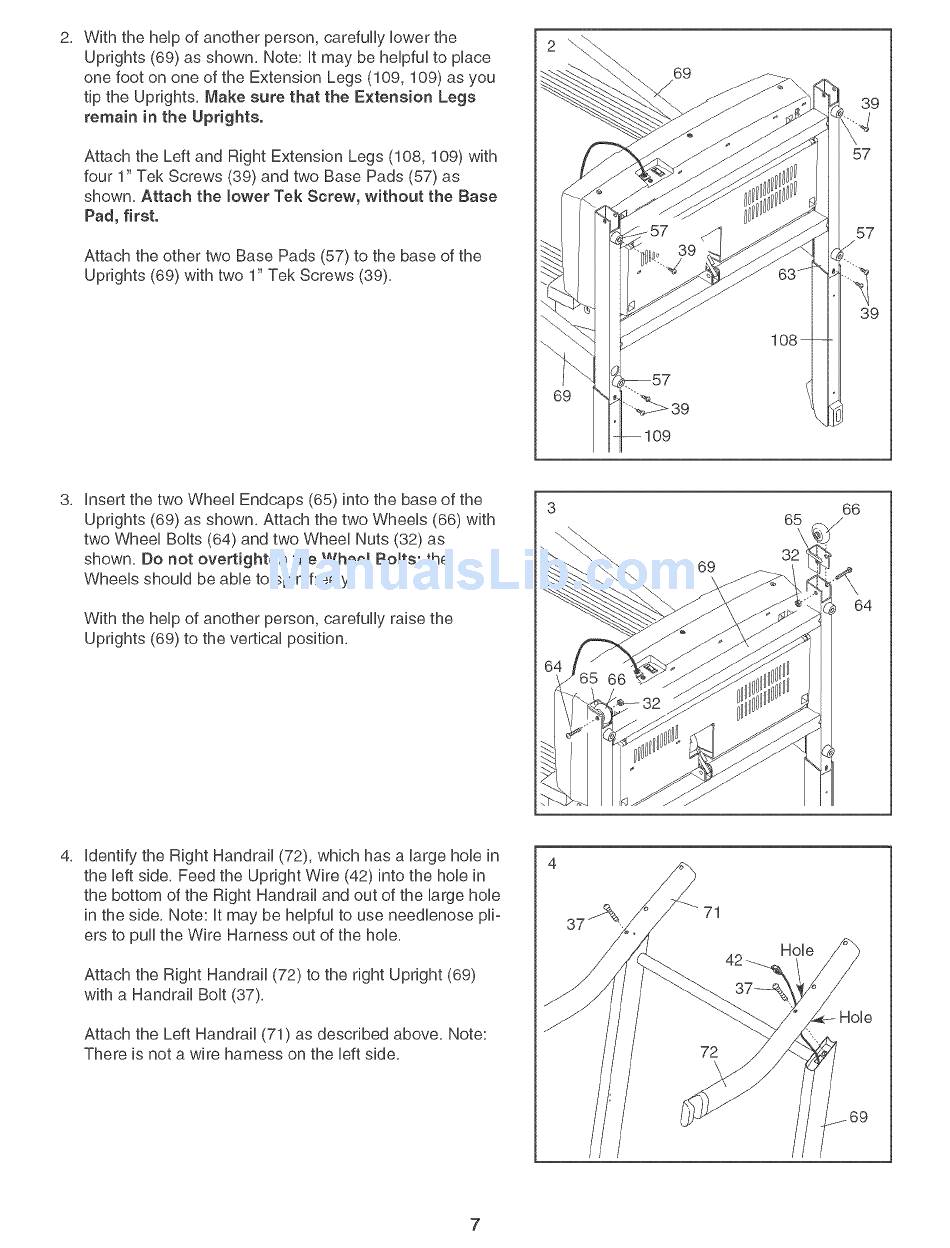

With the help of another person, carefully lower the
Uprights (69) as shown, Note: it may be helpful to place
one foot on one of the Extension Legs (109, 109) as you
tip the Uprights, Make sure that the Extension Legs
remain in the Uprights.
Attach the Left and Right Extension Legs (108, 109) with
four 1" Tek Screws (39) and two Base Pads (57) as
shown, Attach the lower Tek Screw, without the Base
Pad, first.
Attach the other two Base Pads (57) to the base of the
Uprights (69) with two 1" Tek Screws (39),
69
108
57
57
insert the two Wheel Endcaps (65) into the base of the
Uprights (69) as shown, Attach the two Wheels (66) with
two Wheel Bolts (64) and two Wheel Nuts (32) as
shown, Do not overtighten the Wheel Bolts; the
Wheels should be able to spin freely,
With the help of another person, carefully raise the
Uprights (69) to the vertical position,
69
66
65
identify the Right Handrail (72), which has a large hob in
the left side, Feed the Upright Wire (42) into the hob in
the bottom of the Right Handrail and out of the large hob
in the side, Note: it may be helpful to use needlenose pli-
ers to pull the Wire Harness out of the hob,
Attach the Right Handrail (72) to the right Upright (69)
with a Handrail Bolt (37),
Attach the Left Handrail (71) as described above, Note:
There is not a wire harness on the left side,
