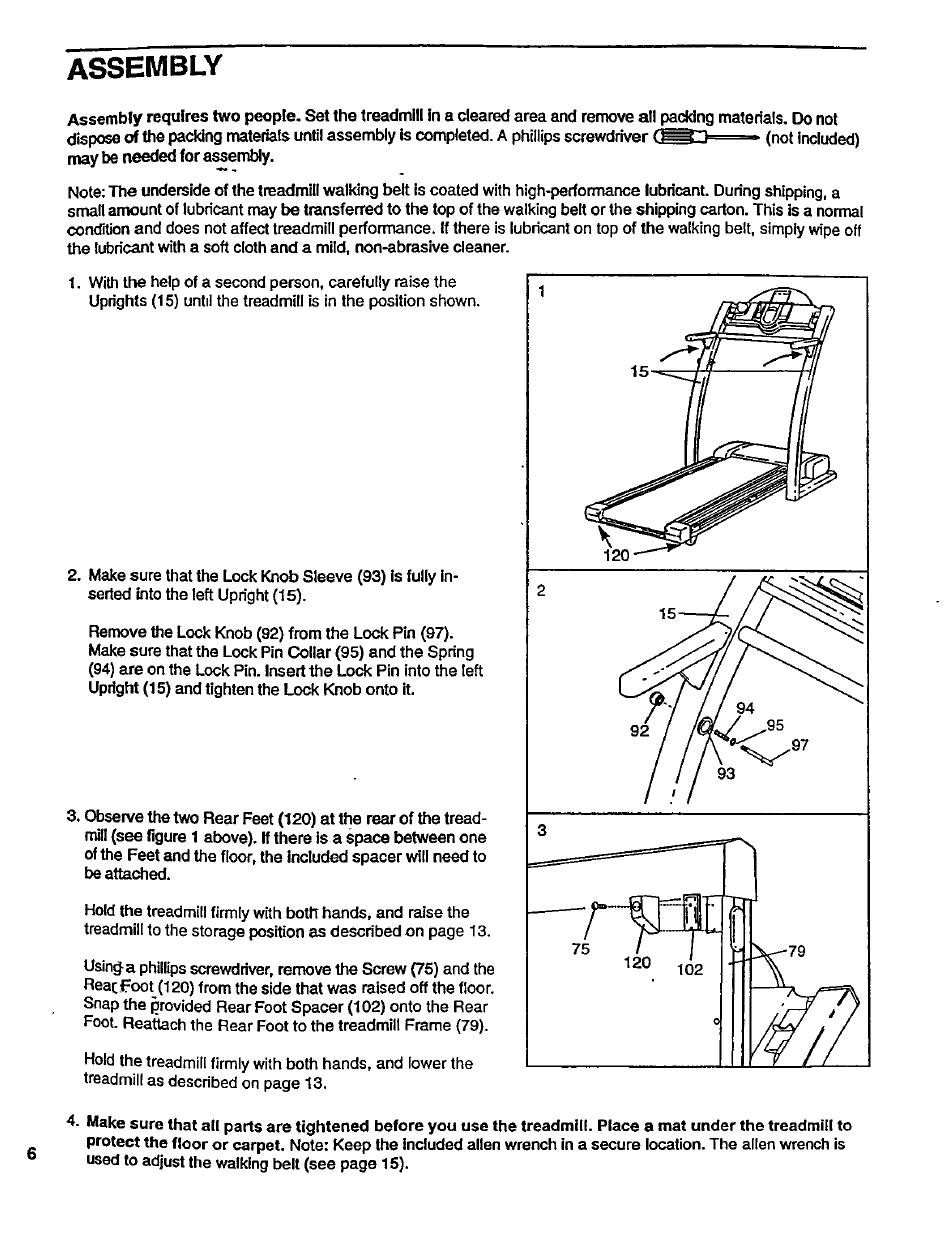

ASSEMBLY
6
Assembly requires two people. Set the treadmill In a cleared area and remove all paddng materials. Do not
dispose of the packing materials until assembly Is completed. A phillips screwdriver (_ (not included)
rnay be needed for a_embly.
Note: The underside of the treadmiit walking belt Is coated with high-performance lubdcant. Dudng shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. This is a normal
condition and does not affect treadmill performance. If there is lubricant on top of the walking belt, simply wipe off
the lubdcent with a soft cloth and a mild, non-abrasive cleaner.
1. With the help of a second person, carefully raise the
Updghts (15) unt=l the treadmill is in the position shown.
2. Make sure that the Lock Knob Sleeve (93) Is fully in-
serted into the left Upright (15).
Remove the Look Knob (92) from the Look Pin (97).
Make sure that the Look Pin Collar (95) and the Spring
(94) are on the Look Pin. Insert the Lock Pin into the left
Updght (15) and tighten the Look Knob onto it.
3. Obsewe the two Rear Feet (120) at the rear of the tread-
mill (see figure I above). If there Is a Space between one
of the Feet and the floor, the included spacer will need to
be attached.
Hold the treadmill firmly with botl_ hands, and raise the
treadmUl to the storage position as described on page 13.
Using a phillips scrawddver, remove the Screw (75) and the
RealLF. oot (120) from the side that was raised off the floor.
Snap the _rovided Rear Foot Spacer (102) onto the Rear
Foot. Reattach the Rear Foot to the treadmill Frame (79).
Hold the treadmill firmly with both hands, and lower the
treadmill as described on page 13.
120
2
92
93
3
,o l ii/d//
4. Make sure that all parts are tightened before you use the treadmill. Place a mat under the treadmill to
protect the floor or carpet. Note: Keep the included allen wrench in a secure location. The allen wrench is
used to adjust the walking belt (see page t5).
