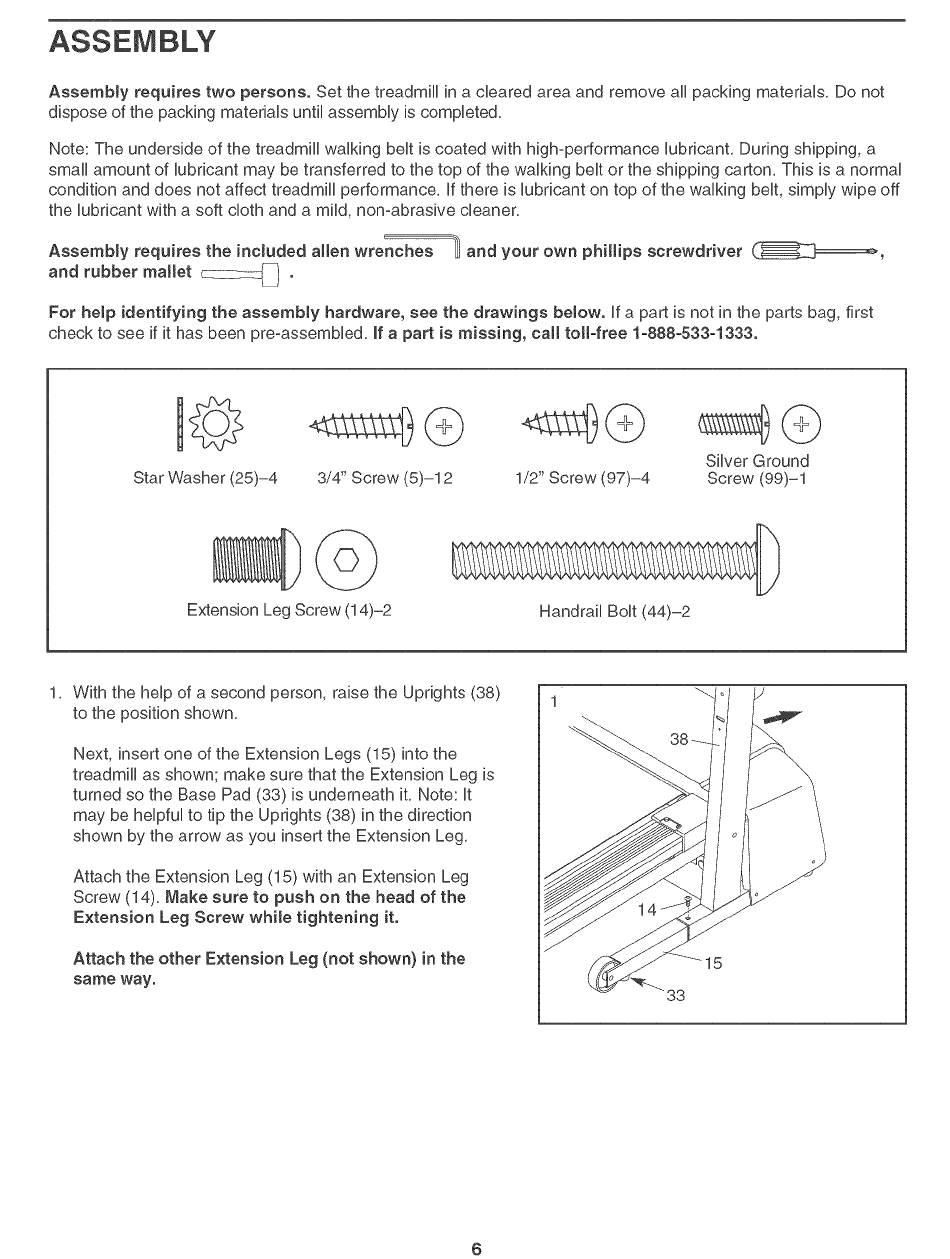

ASSEMBLY
Assembly requires two persons. Set the treadmH[ in a cleared area and remove aH packing matedaUs, Do not
dispose of the packing matedaUs until assemMy is compUeted,
Note: The underside of the treadmH[ waUking beUtis coated with high-performance [ubdcant, During shipping, a
small amount of [ubdcant may be transferred to the top of the waUking beUtor the shipping carton, This is a norma[
condition and does not affect treadmH[ performance, [f there is [ubdcant on top of the waUking beUt,simpUy wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner,
Assembly requires the incJuded allen wrenches _ and your own phiIIips screwdriver
and rubber mallet _::z__-_ .
For help identifying the assembly hardware, see the drawings below. If a part is not in the parts bag, first
check to see if it has been pre°assembled, If a part is missing, ca[[ toil-free 1-888-533-1333.
Star Washer (25)-4 3/4" Screw (5)-12 1/2" Screw (97)-4
Silver Ground
Screw (99)-1
Extension Leg Screw (14)-2
Handrail Bolt (44)-2
1, With the help of a second person, raise the Uprights (38)
to the position shown,
Next, insert one of the Extension Legs (15) into the
treadmill as shown; make sure that the Extension Leg is
turned so the Base Pad (33) is underneath it, Note: it
may be helpful to tip the Uprights (38) in the direction
shown by the arrow as you insert the Extension Leg,
Attach the Extension Leg (15) with an Extension Leg
Screw (14), Make sure to push on the head of the
Extension Leg Screw while tightening it.
Attach the other Extension Leg (not shown} in the
same way.
