Attaching The 2Nd Paper Cassette - Muratec Fax Machine Installation Manual

Installation Installation

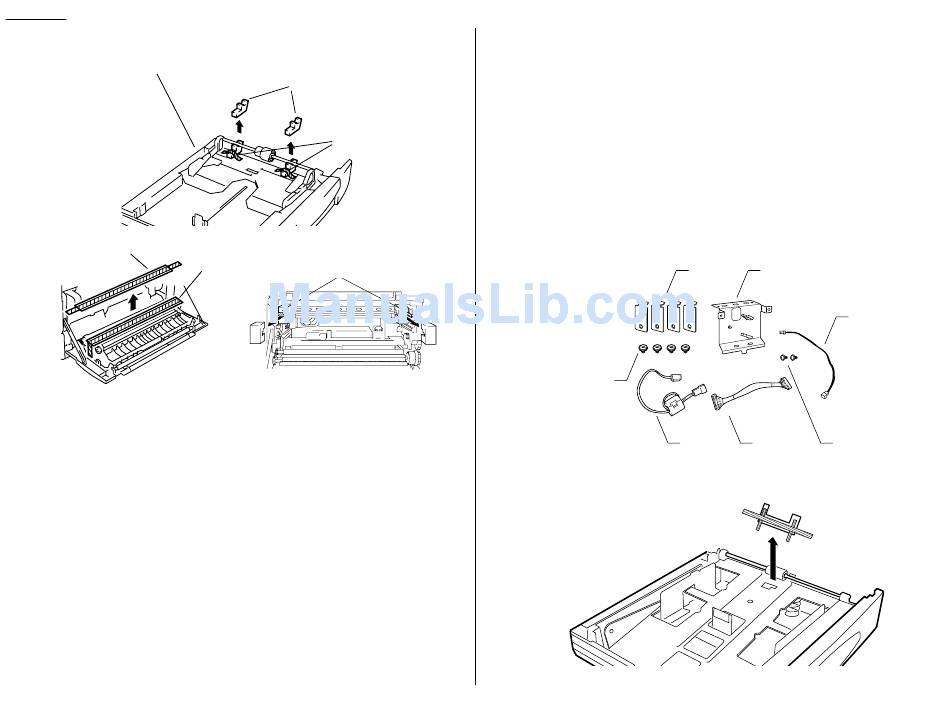

Peel off the all tapes and cushions from the machine.
Multi purpose cassette
Protective sheet
2
Cushion
Tapes
Tape
Tapes
Note: Remove the cushions carefully.
The eraser lamp may be easily
damaged.

Attaching the 2nd paper cassette

Unpacking
1
Remove the paper cassette from the box and check that the following acces-
sories are contained in the box.
(1) Fixing plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
(2) Flat-head screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
(3) Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
(4) Power supply harness 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
(5) Power supply harness 1 (with core) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
(6) Harness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
(7) Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
(2)
2
Remove the packing materials.
(1) (3)
(4)
(5) (6) (7)
