Quick Reference

DA7-909K0-60.indb
1
2007/04/27
13:41:17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MFX-1450 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Muratec MFX-1450

Summary of Contents for Muratec MFX-1450

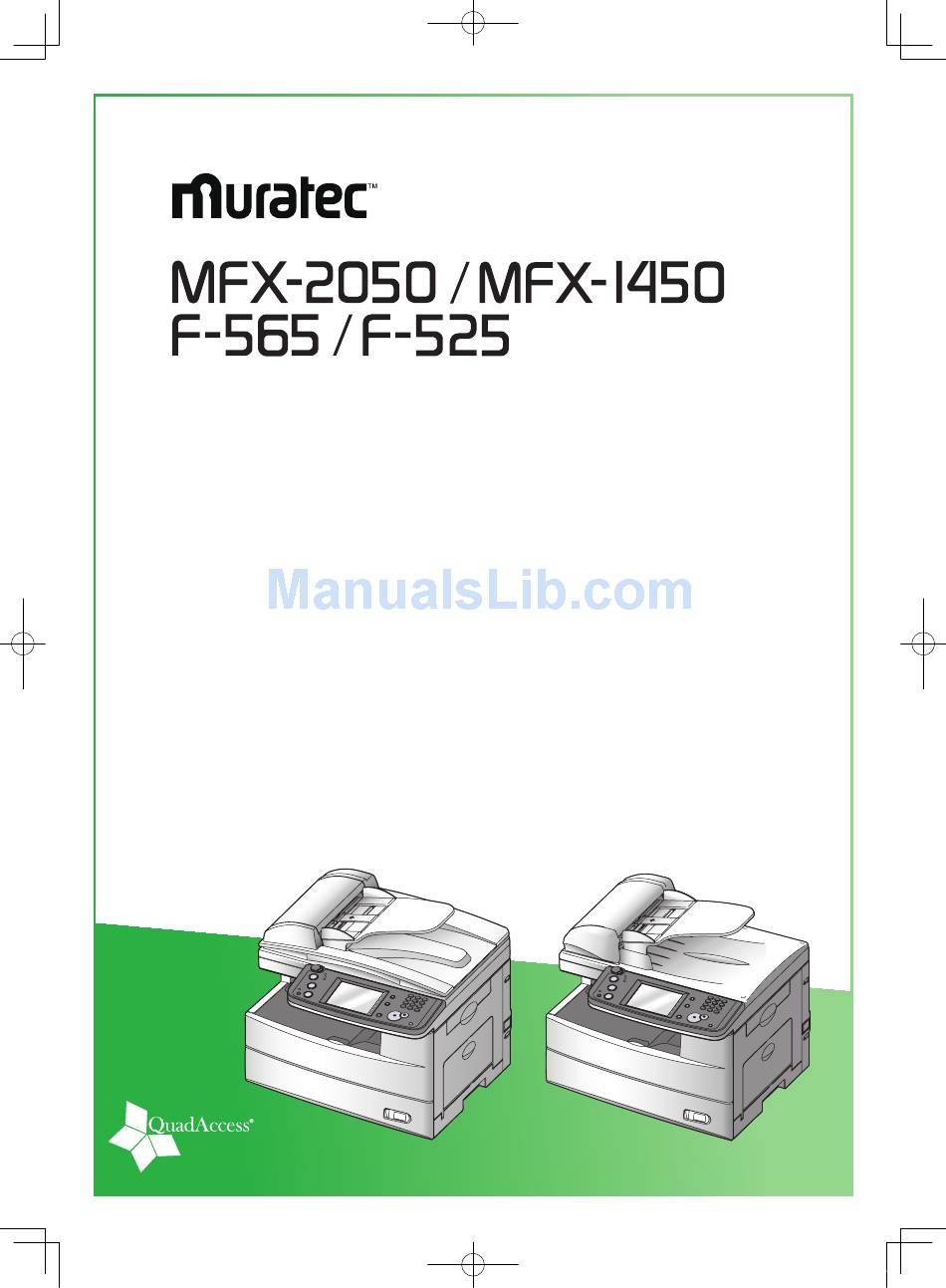

  • Page 1: Quick Reference

    Quick Reference DA7-909K0-60.indb 2007/04/27 13:41:17...

  • Page 2: Table Of Contents

    Contents Basic Copy ...1 Duplex Copying ...2 Sorting ...8 Card copy ...9 Soft Key Programming ...11 Registering an Address Book location ...13 Sending a fax ...18 Sending to an e-mail address ...21 Adding a text message to your e-mail ...24 Scanning to a network folder ...27 Scanning to an FTP server ...31 Color scan to print ...35...

  • Page 3: Basic Copy

    The output will match the original paper size if the appropriate paper has been loaded into the cassettes. DA7-909K0-60.indb Document glass � Face DOWN The document glass is available only for the MFX-2050 and MFX-1450. 2007/04/27 13:41:18...

  • Page 4: Duplex Copying

    Duplex Copying One-sided copying of a duplex document (2 -->1 sided) Scan the front side. To ADF Set the front side of the duplex document in the ADF. Press <COPY>. Press [Others], [DuplexCopy]. Then press [2 -> 1 sided]. DA7-909K0-60.indb Turn over the document The scanned data temporarily and scan the backside.
  • Page 5 NOTE If the duplex printing unit is not installed, press [Others], [DuplexScan]. Then press [ON]. Press [Enter] twice to return to the standby display. Press <Start>. The front side of the duplex document will be scanned. When the following display is shown, place the backside of the duplex document in the same direction as the front side and press <Start>.
  • Page 6 Press [2 -> 2 sided]. • If you set any advanced functions, proceed to step 5. • If you do not set any advanced functions, proceed to step 7. Press [Advance]. (1) Press [Bind] to set document bind position. • Press [DuplexCopy] to return to the duplex copy display. (2) Press [Right&Left] or [Top].
  • Page 7 When the following display is shown, set the document in the correct direc- tion and press <Start>. • Be sure to set the document in the correct direction. (See the table on page 2-17 in the MFP User’s Guide.) Duplex copying of a one-sided document (1 --> 2 sided) NOTE •...
  • Page 8 (1) Press [Bind] to set the binding position. • Press [DuplexCopy] to return to the duplex copy display. (2) Press [Right&Left] or [Top]. (3) Press [Enter]. Press [Enter] twice to return to the standby mode. Press <Start>. Press [Yes] while the document is being scanned. Selecting [No] will cause one-sided document output.
  • Page 9 Press [Next Doc]. • The Next Doc setting can be deleted by pressing [Complete]. • To scan another document, press [Yes] while the document is being scanned. DA7-909K0-60.indb 2007/04/27 13:41:19...

  • Page 10: Sorting

    Sorting Copied documents can be collated into proper page order. This eliminates the need to manually sort documents after copying. Sort OFF The paper is sorted by page. Sort ON The paper is collated into sets. To enable/disable automatic sorting: “ON”...

  • Page 11: Card Copy

    NOTE • Card Copy is available only from the document glass. This function is available on the MFX-2050 and MFX-1450 only. • In this function, zoom ratio is fixed to 100%. • Use the letter or legal-sized paper for this function. If using paper smaller than letter-sized paper, the copy image may be lacked.
  • Page 12 Set the card or check face-down on the document glass. (ID Card) Select the type of object you want to copy. Press <Start>. Once scanning is complete, turn over all of the placed originals and press [Next Doc]. To complete the scanning, press [Complete]. DA7-909K0-60.indb (Two ID Cards) (Business or personal check)

  • Page 13: Soft Key Programming

    Soft Key Programming You may replace the function keys on each standby screen with functions you utilize most often. For this example we will replace the [Zoom] key with [Combine] on the copy mode standby screen. Press <Setting>. Press [Management] and then [Soft Key]. Select the mode which contains the screen you want to change.
  • Page 14 The machine shows the function currently assigned to the soft key. Select the soft key you want to change. Here we select [Zoom]. (MFX-2050 and MFX-1450) (1) Select the function you want to assign to a soft key. Here we select [Combine].

  • Page 15: Registering An Address Book Location

    Registering an Address Book location The machine provides the “Shared address book” and “Personal address book”. The “Shared address book” can be used by all users of the machine, and the “Personal address book” is a private address book for the currently logged-in user only.
  • Page 16 Enter the destinations name, then press [Enter]. The name field must be registered. Up to 30 characters can be entered. (1) Press [Fax No.]. (2) Use the numeric keys to enter the destinations fax number. (Up to 40 digits) (3) Press [Enter]. (1) Press [e-mail].
  • Page 17 If you want to add this destination to a pre-existing call group: Call groups must be registered in advance. (For details on registering call groups, see Chapter 3, “Using the Address Book,” in the MFP User’s Guide.) (1) Press [Group]. (2) Select the applicable group(s).
  • Page 18 Login to OfficeBridge. NOTE If you are already logged-in as an OfficeBridge user, the login screen will not appear. (1) Select your user name. (2) Enter your password and press [Enter]. If you have not set a password, press [Enter] without entering any character.
  • Page 19 For more information of address book entry, see Chapter 3, “Using the Address Book,” in the MFP User’s Guide. After you finish the setting changes, press [Enter] Press <Reset> to return to the standby mode. DA7-909K0-60.indb 2007/04/27 13:41:23...

  • Page 20: Sending A Fax

    Sending a fax Set the document in the ADF or on the document glass. ADF � Face UP Press <FAX> to display the Fax standby mode. Set each function as necessary. (ex. Resolution, Contrast). Specify the destination fax number. NOTE When you enter the fax number, [Location] is displayed on the display.
  • Page 21 — or — Using the address book  (1) Press [Page Up] or [Page Down] to display the desired destination. (2) Press the destination. The document is scanned immediately and trans- mission starts. If you want to specify multiple destinations, use broadcast transmission or call group dialing.
  • Page 22 Press <Start>. The document is scanned and transmission starts. NOTE • If you want to cancel a transmission while the document is scanning, press <Stop>. If you want to cancel a transmission that is in progress, use the Review Commands feature. See “Reviewing or canceling commands” in Chap- ter 4, “Basic Fax Functions,”...

  • Page 23: Sending To An E-Mail Address

    Sending to an e-mail address Set the document. ADF � Face UP Press <SCAN> on the control panel. Press [e-mail]. Adjust any scan settings. (ex. Resolution, Contrast). Specify the destination. Directly enter an e-mail address  (1) Press [Mail Address]. (2) Use the QWERTY keypad to enter the e-mail address.
  • Page 24 The address may contain up to 50 characters. — or — Using the address book  (1) Press [Page Up] or [Page Down] to display the desired destination. (2) Press the destination. The document is scanned immediately and trans- mission starts. If you want to specify multiple destinations, use broadcast transmission or call group dialing.
  • Page 25 — or — Search the destination from an LDAP server  (1) Press [Search]. (2) Enter the destination name and then press [Execute]. NOTE • To search the destination from an LDAP server, the network settings must be configured by your network administrator. •...

  • Page 26: Adding A Text Message To Your E-Mail

    Adding a text message to your e-mail When you send a document to an e-mail address, the following fixed sub- ject and text are entered automatically. Subject: This is an E-mail message. Text: Please see the file attached. However you can change the e-mail subject line and text message for each transmission.
  • Page 27 Press [Subject]. Enter the subject. The subject can contain up to 80 characters. Press [Enter]. Press [Mail Text]. DA7-909K0-60.indb 2007/04/27 13:41:24...
  • Page 28 Enter the text message. NOTE The mail text can contain up to 1024 characters. (Return) is counted as two characters and can be used twice. To view the entire text message, press [View Text]. Use the arrows to view all the text. Press [Enter] to close to return to the QWERTY keypad. Press [Enter] until address book appears.

  • Page 29: Scanning To A Network Folder

    Scanning to a network folder NOTE To save a scanned document to a folder, you should have a shared folder in your computer. Create a shared folder in advance, referring to your PC manual if necessary. Set the document. ADF � Face UP Press <SCAN>...
  • Page 30 NOTE You cannot browse the following folders from the machine: • Folders that are not in the same segment with your machine. • Folders that name contain 13 or more characters. • Folders whose link contains more than 100 characters in length. All accessible networks will be displayed.
  • Page 31 If the user name and password are required to login to the file server, press [UserName]. Otherwise skip to step 13. Enter the user name, then press [Enter]. Enter the user name, then press [Enter]. If your machine is on a windows domain controlled network, add the domain name after the user name with an “@”, like “sam@dom_muratec”.
  • Page 32 Enter the password, then press [Enter]. The password can contain up to 32 characters. All ASCII characters are available. NOTE The entered password is displayed using asterisks. Press <Start>. DA7-909K0-60.indb 2007/04/27 13:41:25...

  • Page 33: Scanning To An Ftp Server

    Scanning to an FTP server Set the document. ADF � Face UP Press <SCAN> on the control panel. Press [FTP]. Adjust any scan settings. (ex. Resolution, Contrast). Press [Host]. DA7-909K0-60.indb Document glass � Face DOWN 2007/04/27 13:41:25...
  • Page 34 Press [Link]. Enter the link to the FTP server. The entry can contain up to 100 charac- ters. Begin your entry with “//”. The “/(slash)” in found in the [Symbol] menu. To switch back to the alpha- bet, press [Alpha]. Press [Enter].
  • Page 35 Enter the user name using the QWERTY keypad and numeric keys. The user name can contain up to 50 characters. All ASCII characters are avail- able. Press [Enter]. Press [Password]. Enter the password using the QWERTY keyboard and numeric keys. The password can contain up to 32 characters.
  • Page 36 Press [Enter]. Press [Enter]. Press <Start>. Operating Tip After entering the FTP destination, select [Register] to add this location into a shortcut key. DA7-909K0-60.indb 2007/04/27 13:41:25...

  • Page 37: Color Scan To Print

    Color scan to print You can scan a color document on your machine and have it print on a color network printer. NOTE • To use this function, set the printer using “Scan to Print Monitor” in advance. For details, see Chapter 5, “Using the utility programs,” in the PC User’s Guide.

  • Page 38: Clearing A Document Jam In Adf

    Clearing a document jam in ADF If a document jams in the ADF, the following display will appear. Carefully remove the jammed paper by follow the displayed steps. Jam in the document feeder Open the ADF cover. Gently remove the document from the ADF. If you cannot remove it, turn the release knob to remove the jammed docu- ment.
  • Page 39 DA7-909K0-60.indb 2007/04/27 13:41:26...
  • Page 40 Muratec America, Inc. 3301 East Plano Parkway, Suite 100 Plano, Texas 75074 DA7-909K0-60.indb 31981 92727 Murata Machinery, Ltd. 2007 Printed in Chine 2007-05 Part Number: DA7-909K0-60 MAI order number: OMF525QRG 2007/04/27 13:41:26...
