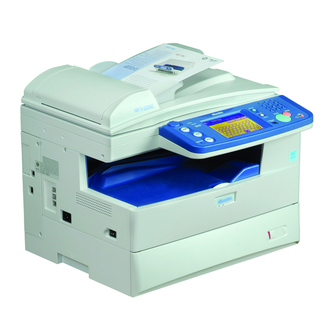

Muratec MFX-1430 Installation Manual
  1. Manuals
  2. Brands
  3. Muratec Manuals
  4. All in One Printer
  5. MFX-1430
  6. Installation manual

Muratec MFX-1430 Installation Manual

Muratec mfx-1430: install guide
Hide thumbs Also See for MFX-1430:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual , User Manual
Installation Manual
The steps to setup the machine
Step 1 : Pick an installation spot.............................................1
Step 2 : Unpack the machine..................................................2
Step 3 : Setup the machine ....................................................3
Step 4 : Install the consumables.............................................5
Step 5 : Load paper into the cassette .....................................7
Step 6 : Connect the cables....................................................9
Step 7 : Turn the power on....................................................11
Step 8 : Turn off the transport mode .....................................12
Step 9 : Initial setup ..............................................................13
Step 10 : Set the paper size .................................................15
Step 11 : Assigning an IP Address .......................................16
Step 12: Browser-based setup .............................................20
Step 13: Setup e-mail server ................................................21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MFX-1430 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Muratec MFX-1430

Summary of Contents for Muratec MFX-1430

  • Page 1: Table Of Contents

    Installation Manual The steps to setup the machine Step 1 : Pick an installation spot...1 Step 2 : Unpack the machine...2 Step 3 : Setup the machine ...3 Step 4 : Install the consumables...5 Step 5 : Load paper into the cassette ...7 Step 6 : Connect the cables...9 Step 7 : Turn the power on...11 Step 8 : Turn off the transport mode ...12...

  • Page 3: Step 1 : Pick An Installation Spot

    Step 1 : Pick an installation spot Space requirement: 100 mm (40 inches) 872 mm 772 mm (344 inches) (304 inches) 50 mm (20 inches) The location should be: • Clean / Dust free — Dust build-up can damage your machine. (However, do not use a dust cover!) •...

  • Page 4: Step 2 : Unpack The Machine

    Step 2 : Unpack the machine Remove all items from the box. Check that all the following items have been included. Main unit with 500-sheet paper cassette Telephone line cable AC power cord Ferrite core NOTE: The inclusion of the AC power cord and telephone line cable vary accord- ing to countries.

  • Page 5: Step 3 : Setup The Machine

    Step 3 : Setup the machine Remove all the shipping materials MFX-2030 and MFX-1430: Remove the protective sheet between the platen cover and document glass. (MFX-2030, MFX-1430 only) Open the cassette and remove the spacer in the paper cassette. F-560 and F-520:...
  • Page 6 Attach the document tray Attach the document tray by inserting it into the appropriate holes, as shown below. Unlock the scanner (For MFX-2030, MFX-1430 only) IMPORTANT: In order to avoid damaging the unit, the machines scanner is locked prior to shipping.

  • Page 7: Step 4 : Install The Consumables

    Step 4 : Install the consumables Pull the release lever to open the side cover. Open the front cover. Turn the toner cartridge locking lever to the left (unlock position). Unpack the drum cartridge from its carton and slide it into the machine firmly until it locks into place.
  • Page 8 Unpack the starter toner cartridge, hold it with both hands and gently shake it to distribute the toner evenly inside the cartridge. NOTE: Do not touch the roller of the toner cartridge. Slide the toner cartridge into the machine firmly until it locks into place. Then turn the cartridge locking lever to the right until it locks into place.

  • Page 9: Step 5 : Load Paper Into The Cassette

    Step 5 : Load paper into the cassette Acceptable paper sizes for the cassette: Region U.S. European and Asian countries Pull the handle toward you to open the paper cassette. Press the paper lifting plate down until it locks into position. Adjust the rear paper guide to the desired paper length.
  • Page 10 Load the paper into the cassette. • Make sure you properly stack the paper prior to setting it in the cassette. The leading edge and sides should be even. • Do not stack the paper over the limit mark inside the cassette. Pinch the side paper guide and adjust it to the width of the paper.

  • Page 11: Step 6 : Connect The Cables

    Step 6 : Connect the cables Connect the telephone line cable Loop the telephone line cable and attach the ferrite core as shown. The telephone line cable loop should be near the connector of the cable. Plug the telephone line cable into the LINE jack. Plug the other end of the telephone line cable to the telephone wall jack.

  • Page 12: Connect The Power Cord

    Plug the LAN cable into the LAN connector. Plug the other end of the LAN cable into a 10Base-T/100Base-Tx Ethernet hub, or into the appropriate RJ-45 wall jack. Ethernet hub Connect the power cord Plug the non-pronged end of the supplied AC power cord into the AC socket on the machine.

  • Page 13: Step 7 : Turn The Power On

    Turn the power on. The markings are international standards: [ | ] means on, [ ] means off. If you are installing MFX-2030 or MFX-1430, perform Step 8 “Turn off the transport mode” first (see next page). Once the transport mode has been turned off, you may procedure to the next procedure.

  • Page 14: Step 8 : Turn Off The Transport Mode

    NOTE: If a DHCP (Dynamic Host Configuration Protocol) server is not installed on your network or if you are not installing the machine on a network, the message will read “DHCP server did not respond“. You will need to turn off the DHCP server manually as described in “If your network is not using DHCP”...

  • Page 15: Step 9 : Initial Setup

    Step 9 : Initial setup Press [Setting] on the control panel, [ ], [0], [2] to initialize the memory. When the confirmation message appears, press [Yes]. Press [Setting] on the control panel and then press [User Install]. When the first screen has been entered, press [Prev] or [Next] to move to the second screen.
  • Page 16 Items [Language] [Time Setting] [Set Daylight Setting] [Broadcast] [Comm. Line] [Reception Mode] [Dial Tone Detect] [TTI Enter/Edit] [Default TTI] [TTI Number] [Time Zone] *: “Time setting” and “Comm. Line” settings are not appear according to the country. Installation Manual Descriptions Select the language.

  • Page 17: Step 10 : Set The Paper Size

    Step 10 : Set the paper size Press [Setting] on the control panel, then [Paper Settings]. Press [Cassette 1]. Select the paper that you loaded, and press [Enter]. U.S. NOTE: Selectable paper varies by countries. If the optional second paper cassette has been installed, set the paper size following these steps.

  • Page 18: Step 11 : Assigning An Ip Address

    Step 11 : Assigning an IP Address If your network is using DHCP If a DHCP (Dynamic Host Configuration Protocol) server is installed on your network, an IP address is automatically assigned after you connect the machine to the network. To see the assigned IP address for your machine, print the “Network set- ting list”.
  • Page 19 Press [TCP/IP Settings]. Press [DHCP Setting]. Select [OFF] and press [Enter]. NOTE: If you are not installing the machine on a network, please skip to step 14 “Local print and scan driver installation” on page 23. Installation Manual...
  • Page 20 Press [IP Address]. Enter the appropriate IP address using the numeric keys. Press the arrow keys to navigate the field. Press [Clear] to delete a number. Press [Enter]. The display returns to the TCP/IP settings menu. Press [Subnet Mask] and enter the appropriate IP address, then press [Enter].

  • Page 21: Verifying The Ip Settings

    Verifying the IP settings Print the network setting list to view the new configuration. To print the network settings list: Press [Settings], [List], [Network Settings], then [Yes] At the command prompt on a network computer, type “ping” followed by the IP address of your machine.

  • Page 22: Step 12: Browser-Based Setup

    Step 12: Browser-based setup Your machine can be set up from a browser. To access the machine’s web page: Type the machine’s IP address in the URL address field of your browser. (Ex. http://192.168.1.10/) The start-up web page will appear. NOTE: Please refer to the “Network Guide”...

  • Page 23: Step 13: Setup E-Mail Server

    Step 13: Setup e-mail server In order to use the e-mail and Internet fax function on your machine, the “SMTP/POP” settings and “E-mail Settings” must be setup. These settings can be configured using the Web Browser. NOTE: Please refer to the “Network Guide” chapter 4 “E-mail/I-Fax settings” for more information.

  • Page 24: Step 14 : Driver Installation For Network Printing

    Step 14 : Driver installation for network printing Install driver to use the machine as a network printer. Also, you can install the Fax driver and TiffMaker. A fax driver is software that allows you to send a fax directly from your applica- tion.

  • Page 25: Step 15 : Driver Installation For Local Printing And Scanning

    Step 15 : Driver installation for local printing and scanning Install drivers to use the machine as a local printer and scanner. A USB cable is required to connect your machine to your computer. NOTE: For local installation, do not attach a USB cable while your machine and computer are turned on.
  • Page 26 Installation Manual...
  • Page 28 DA7-90360-62...
