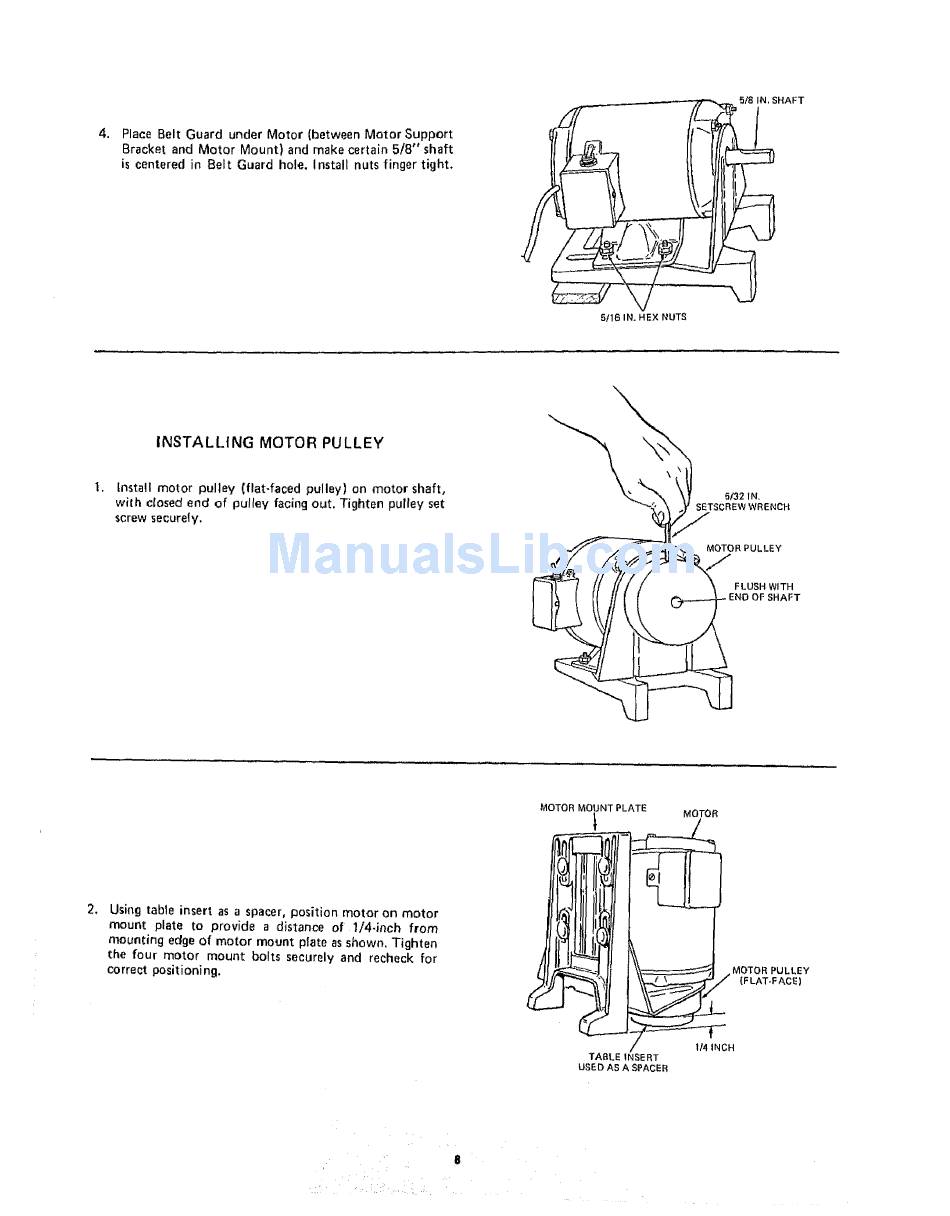

4. Place Belt Guard under Motor [between Motor Support
Bracket and Motor Mount) and make certain 5/8" shaft
is centered in Belt Guard hole. Install nuts finger tight.
5!16 IN. HEX NUTS
INSTALLING
MOTOR PULLEY
install
motor
pulley
(flat-faced
pulley)
on motor
shaft,
with closed end of pulley
facing out, Tighten
pulley set
screw securely.
5_21N,
SETSCREW
WRENCH
MOTOR
PULLEY
J
FLUSH
WITH
SHAFT
2,
Using table insert as a spacer, position motor on motor
mount plate to provide
a distance of 1/4-inch
from
mounting edge of motor mount plate as shown. Tighten
the four motor mount bolts securely and recheck for
correct positioning,
MOTOR
MOUNT
PLATE
MOTOR
_IN'-CH
TABLE
IN_ERT
USED AS A SPACER
•8
