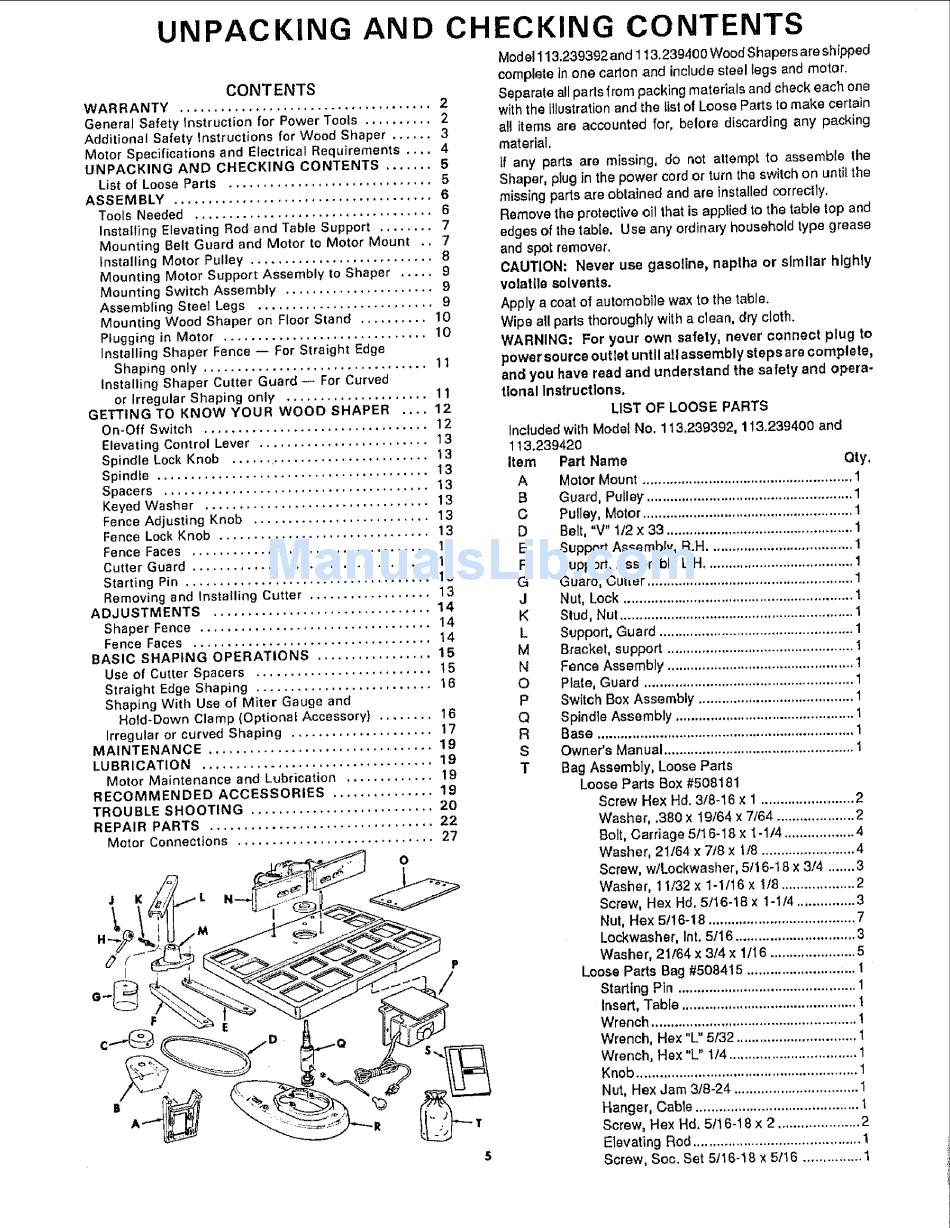

UNPACKING
AND CHECKING
CONTENTS
CONTENTS
WARRANTY
.....................................
2
General Safety Instruction
for Power Tools ..........
2
Additional
Safety Instructions
for Wood Shaper ......
3
Motor Specifications
and Electrical
Requirements
....
4
UNPACKING
AND CHECKING
CONTENTS
.......
5;
List of Loose Parts
..............................
5
ASSEMBLY
......................................
6
Tools Needed
...................................
6
Installing
Elevating Rod and Table Support
........
7
Mounting
Belt Guard and Motor to Motor Mount
..
7
_nstalling Motor Pulley ...........................
8
Mounting
Motor Support Assembly to Shaper
.....
9
Mounting
Switch Assembly
......................
9
Assembling
Steel Legs
..........................
9
Mounting Wood Shaper on Floor Stand
..........
10
Pfugging in Motor
..............................
10
Installing Shaper Fence -- For Straight
Edge
Shaping only .................................
11
Installing
Shaper Cutter Guard -- For Curved
or Irregular Shaping only
.....................
11
GETTING TO KNOW YOUR WOOD SHAPER
....
12
On-Off Switch
.................................
12
Elevating Control Lever .........................
13
Spindle Lock Knob
..............................
13
Spindle ........................................
13
Spacers
.......................................
13
Keyed Washer
.................................
13
Fence Adjusting
Knob
..........................
13
Fence Lock Knob ...............................
13
Fence Faces ...................................
t 3
Cutter Guard ...................................
13
Starting
Pin ....................................
13
Removing and Installing
Cutter
..................
13
ADJUSTMENTS
................................
14
Shaper Fence ..................................
!4
Fence Faces ...................................
14
BASIC SHAPING
OPERATIONS
.................
15
Use of Cutter Spacers
..........................
15
Straight Edge Shaping
..........................
16
Shaping With Use of Miter Gauge and
Hold-Down
Clamp (Optional
Accessory)
........
16
Irregular or curved Shaping
.....................
17
MAINTENANCE
.................................
19
LUBRICATION
..................................
19
Motor Maintenance
and Lubrication
.............
19
RECOMMENDED
ACCESSORIES
...............
19
TROUBLE SHOOTING
...........................
20
REPAIR PARTS
.................................
22
Motor Connections
.............................
27
Mod el 113.239392and
t 13.239400 Wood Shapers are shipped
complete in one carton and include steel legs and motor.
Separate all parts from packing materials and check each one
with the illustration and the list of Loose Parts to make certain
all items are accounted for, before discarding
any packing
material.
_f any parts are missing,
do not attempt to assembte the
Shaper, plug in the power cord or turn the swilch on until t_qe
missing parts are obtained and are installed correclly,
Remove the protective oil that is applied to the table lop and
edges of the table. Use any ordinary household type grease
and spot remover.
CAUTION:
Never use gasoline, naplha or similar highly
volatile solvents.
Apply a coat of automobile wax to the table.
Wipe all parts thoroughly with a clean, dry cloth.
WARNING:
For your own safety, never connect plug to
power source outlet until allassembly
steps are comple re,
and you have read and understand
the safety and opera-
tional Instructions.
LIST OF LOOSE PARTS
Included with Model No. 113.239392, 113.239400 and
113.239420
Item
Part Name
Qty,
A
Motor Mount ......................................................
1
B
Guard, Pulley .....................................................
1
O
Pulley, Motor ......................................................
1
D
Belt, "V" 112x 33 ................................................
1
E
Support Assembly, R.H .....................................
1
F
Support, Assembly L.H .......................................
1
G
Guard, Cutter .....................................................
1
J
Nut, Lock ...........................................................
1
K
Stud, Nut ............................................................
1
L
Support, Guard ..................................................
1
M
Bracket, support ................................................
1
N
Fence Assembly ................................................
1
O
Plate, Guard ......................................................
1
P
Switch Box Assembly ........................................
1
Q
Spindle Assembly ..............................................
t
R
Base ..................................................................
1
S
Owner's Manual .................................................
1
T
Bag Assembly, Loose Parts
Loose Parts Box #508181
Screw Hex Hd. 3!8-16 x 1 ........................ 2
Washer, .380 x !9/64 x 7/64 .................... 2
Bolt, Carriage 5tl 6-18 x 1-1/4 .................. 4
Washer, 2t/64 x 7t8 x 1t8 ........................ 4
Screw, w/Lockwasher, 5t16-18 x 3/4 ....... 3
Washer, 11/32 x 1-1/16 x 1t8 ................... 2
Screw, Hex Hd. 5/16-18 x 1-1/4 ............... 3
Nut, Hex 5116-!8 ......................................
7
Lockwasher, Int. 5/16 ...............................
3
Washa r, 21f64 x 314 x 1/16 ...................... 5
Loose Parts Bag #508415 ........................ _...1
Starting Pin ..............................................
1
Insert, Table .............................................
1
Wrench .....................................................
I
Wrench, He× "L" 5/32 ...............................
1
Wrench, He× "L" 1/4 .................................
1
Knob .........................................................
1
Nut, Hex Jam 318-24 ................................
1
P, a nger, Cable ..........................................
1
Screw, Hex Hd. 5f16-18 x 2 ..................... 2
Elevating Rod ...........................................
!
Screw, Soc. Set 5t16-18 x 5/t6 ............... 1
