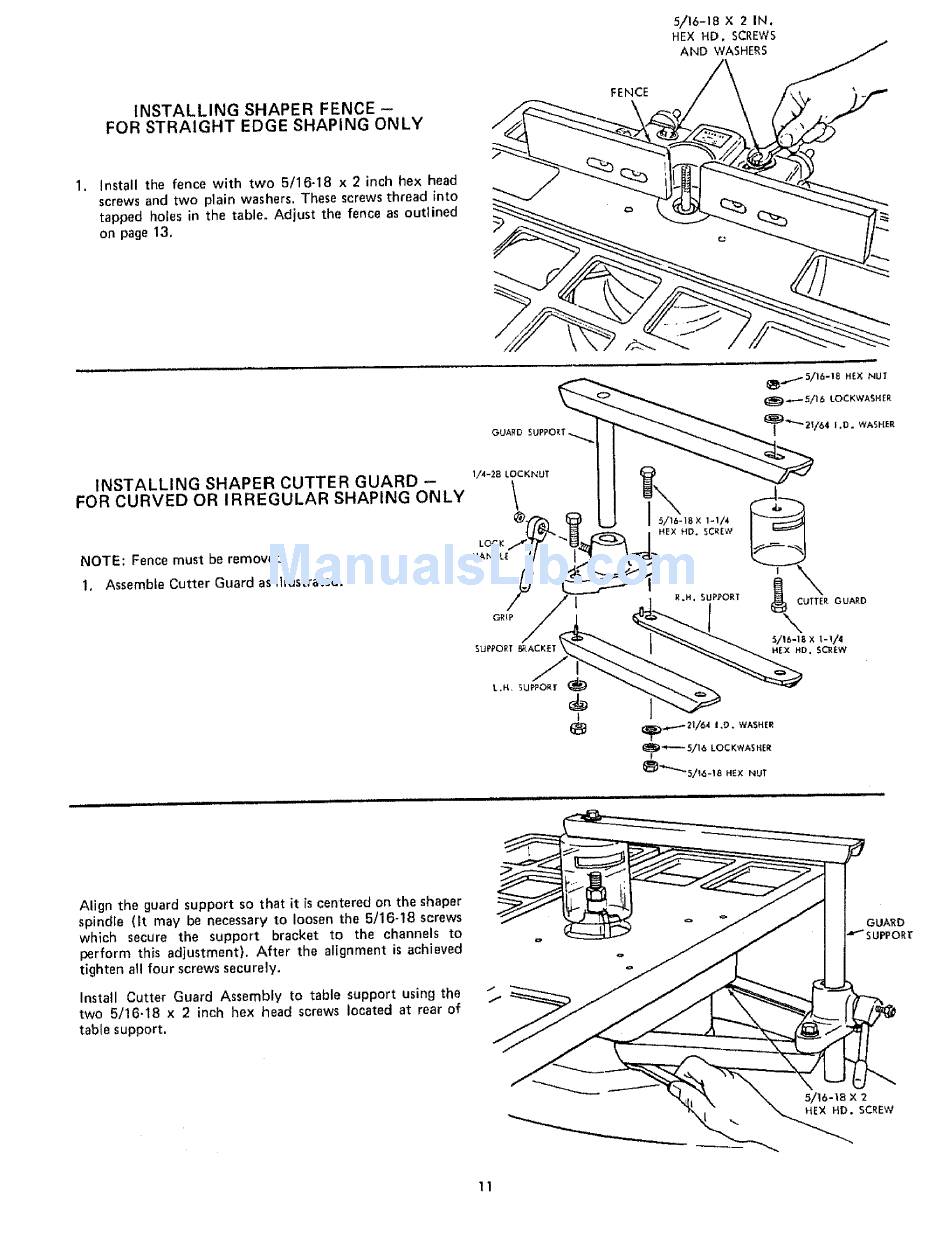

INSTALLING
SHAPER
FENCE -
FOR STRAIGHT
EDGE SHAPING
ONLY
Install the fence with
two 5/16-18 x 2 inch hex head
screws and two plain washers. These screws thread into
tapped holes in the table. Adjust the fence as outlined
on page 13,
FENCE
5/16-18
X 2 IN.
HEX HD,
SCREWS
AND
WASHERS
_UA_D
INSTALLING
SHAPER CUTTER
GUARD -
FOR CURVED
OR IRREGULAR
SHAPING ONLY
NOTE:
Fence must be removed,
1,
Assemble
Cutter
Guard
as illustrated.
I/4-2B LOCKNUT
R.H,
SUP_)RT
Align the guard support so that it is centered on the shaper
spindle (It may be necessary to loosen the 5/16-18 screws
which secure the support
bracket to
the channels to
perform this adjustment). After the alignment is achieved
tighten all four screws securely.
Instatl Cutter Guard Assembly to table support using the
two 5/16.t8
x 2 inch hex head screws located at rear of
table support,
GUA1_D
5/16-18
X 2
HEX
HD.
SCRE_,V
11
