AUXILIARY
FENCEPWORK
SUPPORT
WORKPIECE
27 IN.

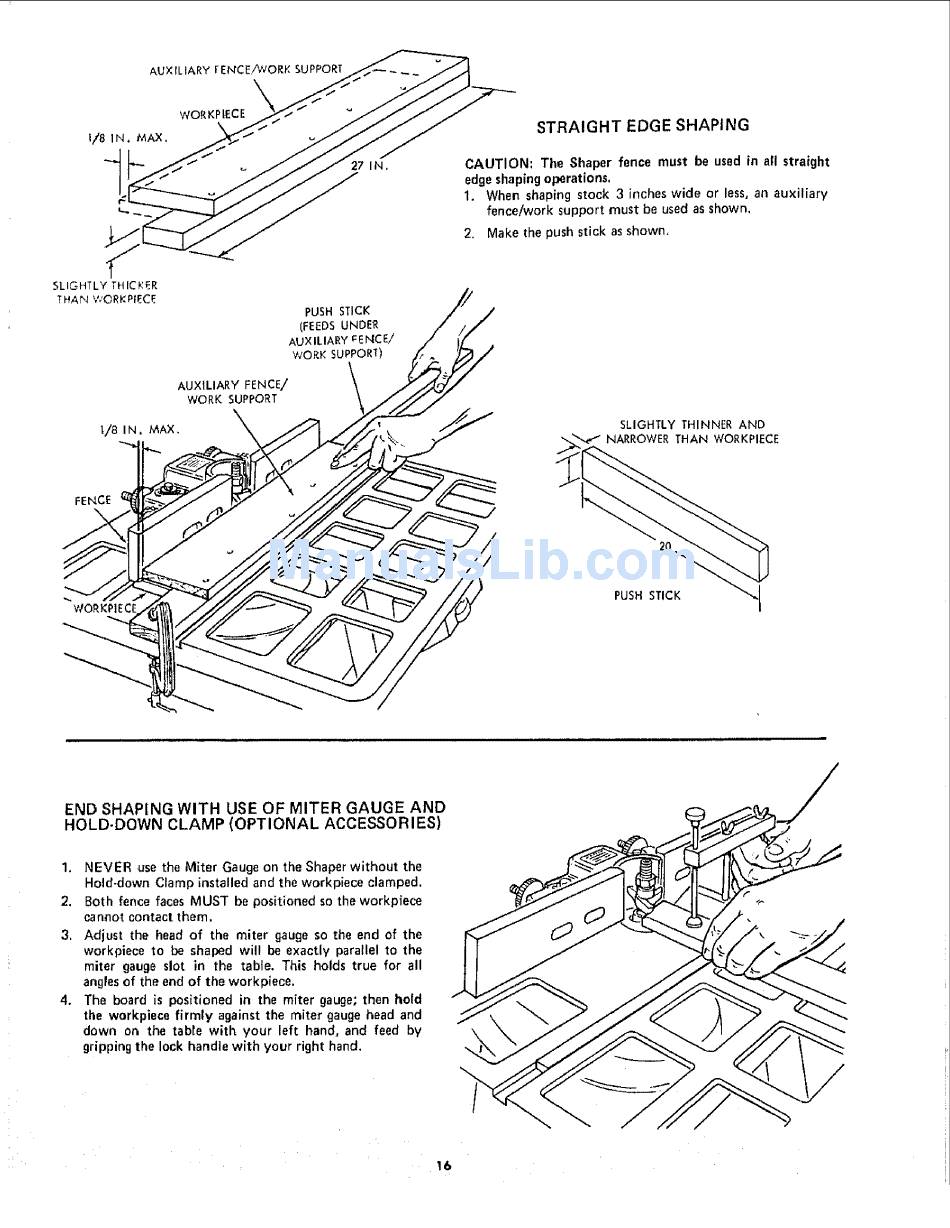

STRAIGHT
EDGE SHAPING
CAUTION:
The Shaper fence must be used in all straight
edgeshapingoperations.
1. When shaping stock 3 inches wide or less, an auxiliary
fence/work support must be used as shown,
2, Make the push stick asshown.
SLIGHTLY
THICKER
THAN
WORKP_ECE
PUSH STICK
(FEEDS UNDER
AUXILIARY
_:ENCEi
WORK
SUPPORT)
AUXILIARY FENCE,/
WORK
SUPPORT
1/8 I N.
MAX.
\"x
SLIGHTLY THINNER AND
NARROWER THAN WORKPIECE
FENCE
2O
PUSH STICK
END SHAPING WITH USE OF MITER GAUGE AND
HOLD-DOWN CLAMP (OPTIONAL
ACCESSORIES)
1.
NEVER
use the Miter Gauge on the Shaper without
the
Hold-down
Clamp installed
and the workpiece
clamped,
2.
Both
fence faces MUST
be positioned
so the workpiece
canaot contact
them.
3.
Adjust
the head of the miter
gauge so the end of the
workpiece
to be shaped
will be exactly
parallel
to the
miter
gauge slot in
the
table.
This
holds true
for
all
angles of the end of the workpiece.
4.
Tha board
is positioned
in the miter
gauge; then
hold
the workpiece
firmly
against
the miter
gauge head and
down
on the table
with
your
left
hand,
and feed
by
gripping the lock handle with
your
right hand.
16
