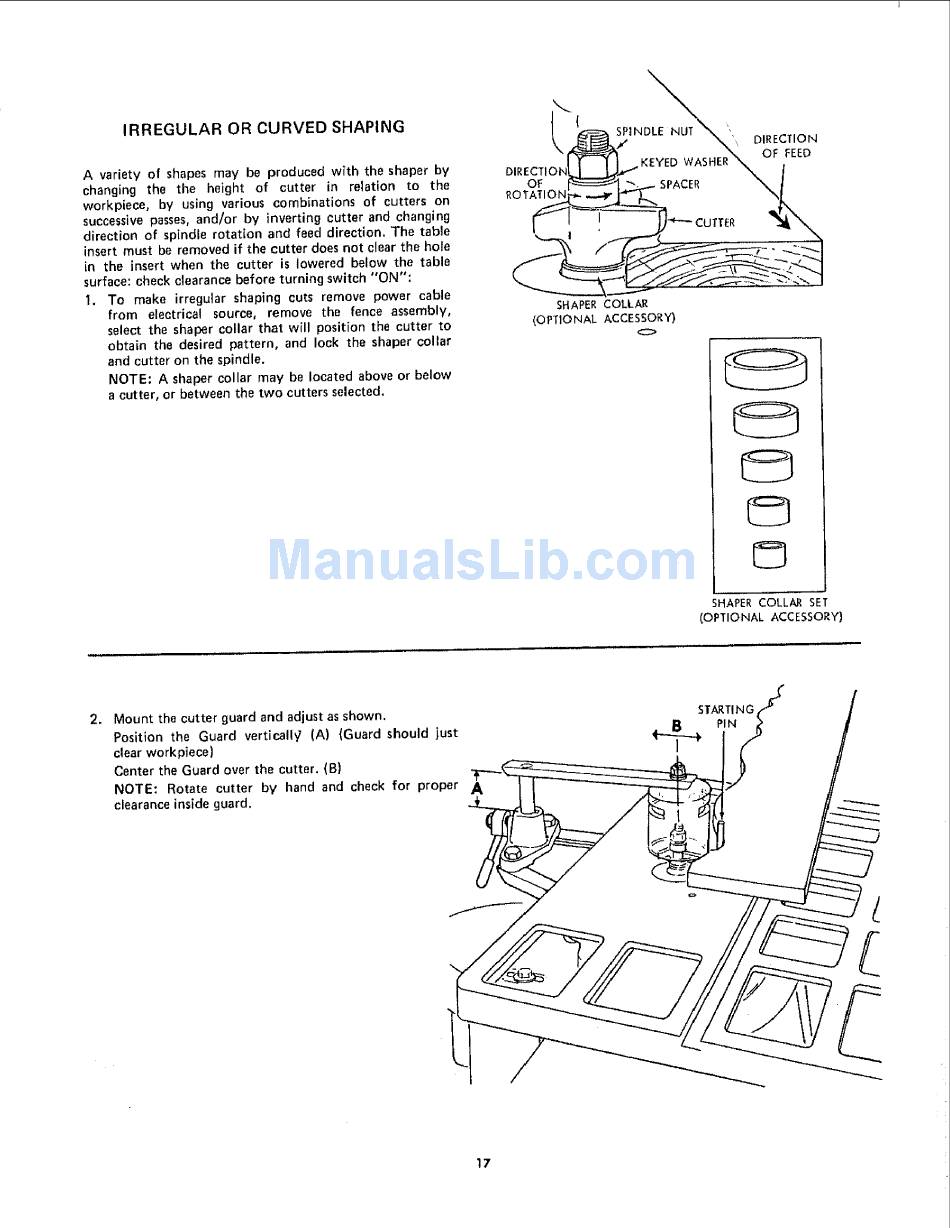

IRREGULAR
OR CURVED
SHAPING
A variety
of shapes may
be produced
w_th the shaper by
changing
the
the
height
of
cutter
in
relation
to
the
workpiece,
by using
various
combinations
of cutters
on
successive
passes, and/or
by inverting
cutter
and changing
direction
of spindle
rotation
and feed direction,
The table
insert
must
be removed
if the cutter does not clear the hole
in the
insert when
the cutter
is lowered
below
the table
surface:
check clearance
before
turning
switch
"ON":
1.
To
make
irregular
shaping
cuts remove
power
cable
from
electrical
source,
remove
the
fence
assembly,
select
the shaper
collar that
will
position
the cutter
to
obtain
the desired
pattern,
and lock
the shaper collar
and cutter
on the spindle.
NOTE:
A shaper collar may
be located
above or below
a cutter,
or between
the two cutters
selected,
(
DIRECT
OF
ROTATION
SPeNDS'AUnT
,
.
"_
DIRECTION
,KEYED
WASHER
_OF
FEED
SPACER
SHAPER COLLAR
(,OPTIONAL
ACCESSORY)
o
SHAPERCOLLAR SET
(OPTIONAL
ACCESSORY)
2_
Mount
the cutter
guard
and adjust as shown.
Position
the
Guard
verticall_
(A)
(Guard
should
just
clear workpiece)
Center
the Guard over the cutter.
(B)
NOTE:
Rotate
cutter
by
hand and check for
proper
clearance
inside
guard.
A
STARTING
_]_
PIN
17
