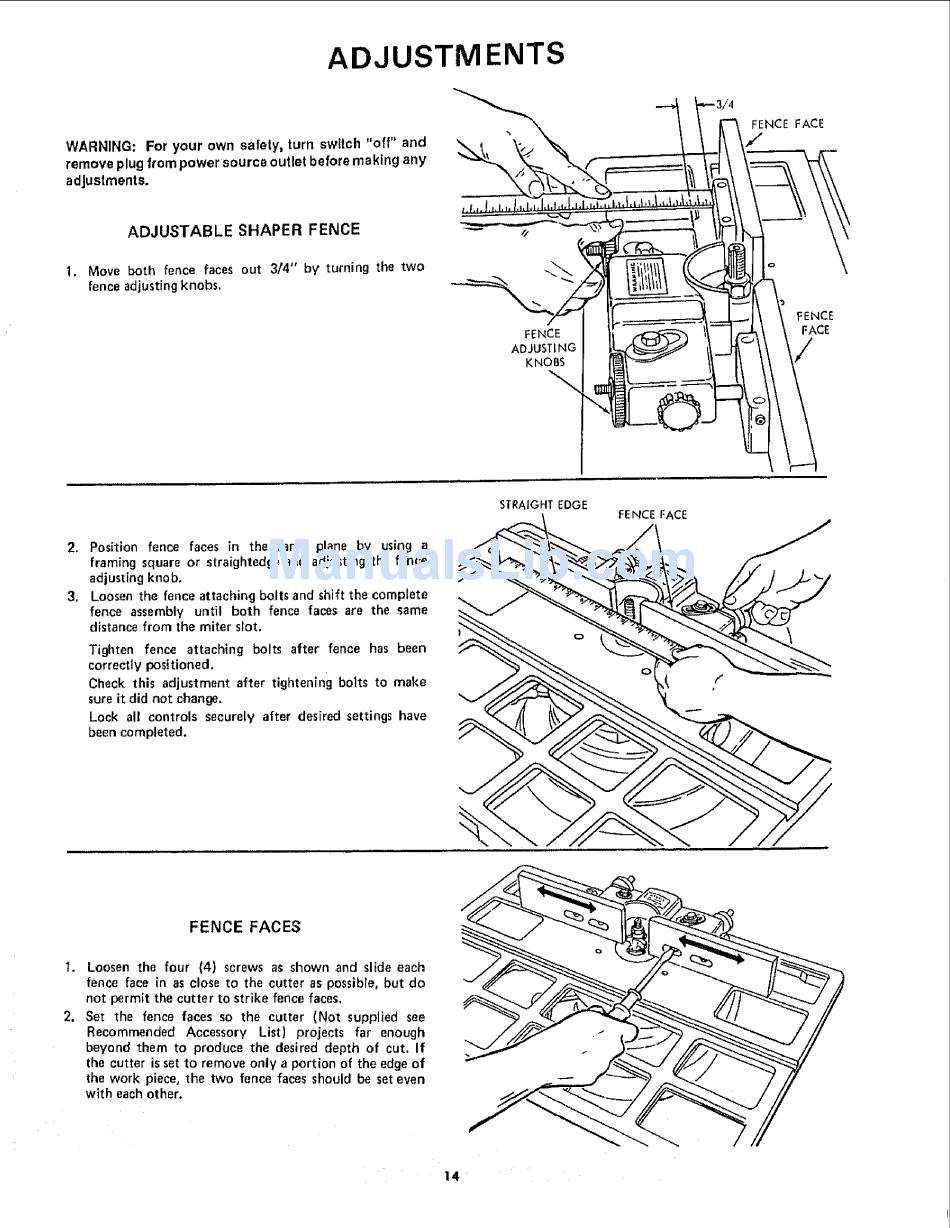

ADJUSTMENTS
WARNING: For your own safety, turn switch "off" and
removeplugfrom power source outletbeforemaking any
adjustments.
.
ADJUSTABLE
SHAPER FENCE
Move both fence faces out 3/4" by turning the two
fence adjusting knobs,
FENCE
ADJUSTING
KNOBS
FENCE FACE
FENCE
FACE
2.
Position
fence
faces
in
the
same
plane
by
using
a
framing
square or straightedge
and adjusting
the fence
adjusting
knob.
3.
Loosen the fence attaching
bolts and shift the complete
fence
assembly
until
both
fence
faces are the same
distance from the miter
slot.
Tighten
fence attaching bolts after fence has been
correctly positioned.
Check this adjustment
after tightening bolts to make
sure it did not change,
Lock all controls securely after desired settings have
been completed.
STRAIGHT
EDGE
FENCE
FACE
FENCE FACES
1. Loosen the four (4) screws as shown and slide each
fence face in as close to the cutter as possible, but do
not permit the cutter to strike fence faces,
2. Set the fence faces so the cutter (Not supplied see
Recommended Accessory
List] projects
far enough
beyond them to produce the desired depth of cut. If
the cutter is set to remove only a portion of the edge of
the work piece, the two fence faces should be set even
with eachother.
14 ¸
