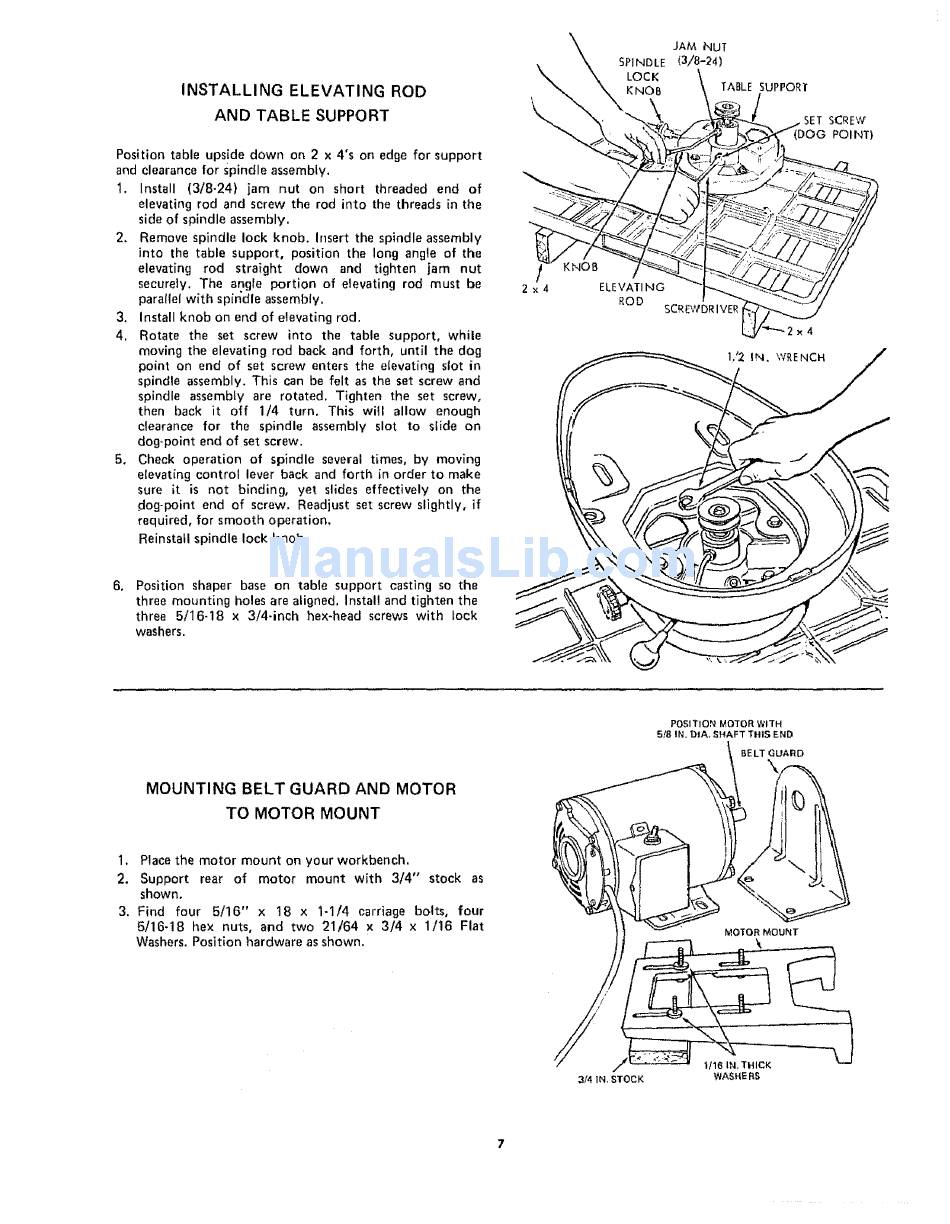

INSTALLING
ELEVATING
ROD
AND TABLE
SUPPORT
Position
table
upside
down
on 2 x 4's on edge for support
and clearance
for Spindle
assembly.
1.
Install
(3/8-24)
jam
nut
on short
threaded
end
of
elevating
rod and screw
the rod into
the threads
in the
side of spindle
assembly.
2,
Remove
spindle
lock
knob,
Insert
the spindle
assembly
into
the table
support,
position
the long
angle
of the
elevating
rod
straight
down
and
tighten
jam
nut
securely,
The
angle
portion
of elevating
rod must
be
parallel
with
spindle
assembly.
3.
Install
knob
on end of elevating
rod,
4.
Rotate
the
set
screw
into
the
table
support,
while
moving
the elevating
rod back and forth,
until
the dog
point
on end of set screw
enters
the elevating
slot in
spindle
assembly,
This
can be felt
as the set screw
and
spindle
assembly
are
rotated.
Tighten
the
set screw,
then
back
it
off
1/4
turn.
This
witl
allow
enough
clearance
for
the
spindle
assembly
slot
to
slide
on
dog-point
end of set screw.
5,
Check
operation
of
spindle
several
times,
by
moving
elevating
control
lever back and forth
in order
to make
sure
it
is not
binding,
yet
slides
effectively
on the
dog-point
end of screw.
Readjust
set screw
slightly,
if
required,
for smooth
operation.
Reinstall
spindle
lock
knob.
6,
Position
shaper
base on table
support
casting
so the
three mounting
holes are aligned.
Install
and tighten
the
three
5/16-18
x 3/4-inch
hex-head
screws
with
lock
washers.
SPINDLE
LOCK
KNOB
JAM NUT
(3/8-24)
TABLE SUPPORT
SCRE_M
(DOG
POINT)
/
2x4
KNOB
ELEVATI NG
ROD
£CREWDR IVER
"_2
× 4
J
MOUNTING
BELT GUARD AND MOTOR
TO MOTOR MOUNT
POSITION
MOTOR
WITH
5/8 IN. DIA,
SHAFT
THIS
END
BE LT GUARD
1. Place the motor mount on your workbench.
2. Support
rear of
motor
mount
with
3/4"
stock
as
shown,
3. Find
four
5/16"
x 18 x 1-1/4 carriage bolts, four
5/16-18 hex nuts, and two 21/64 x 3/4 x 1/16 Flat
Washers, Position hardware as shown,
MOTOR
MOUNT
3_IN.
STOCK
1/16 IN. THICK
WASHE RS
