Embedded Modem

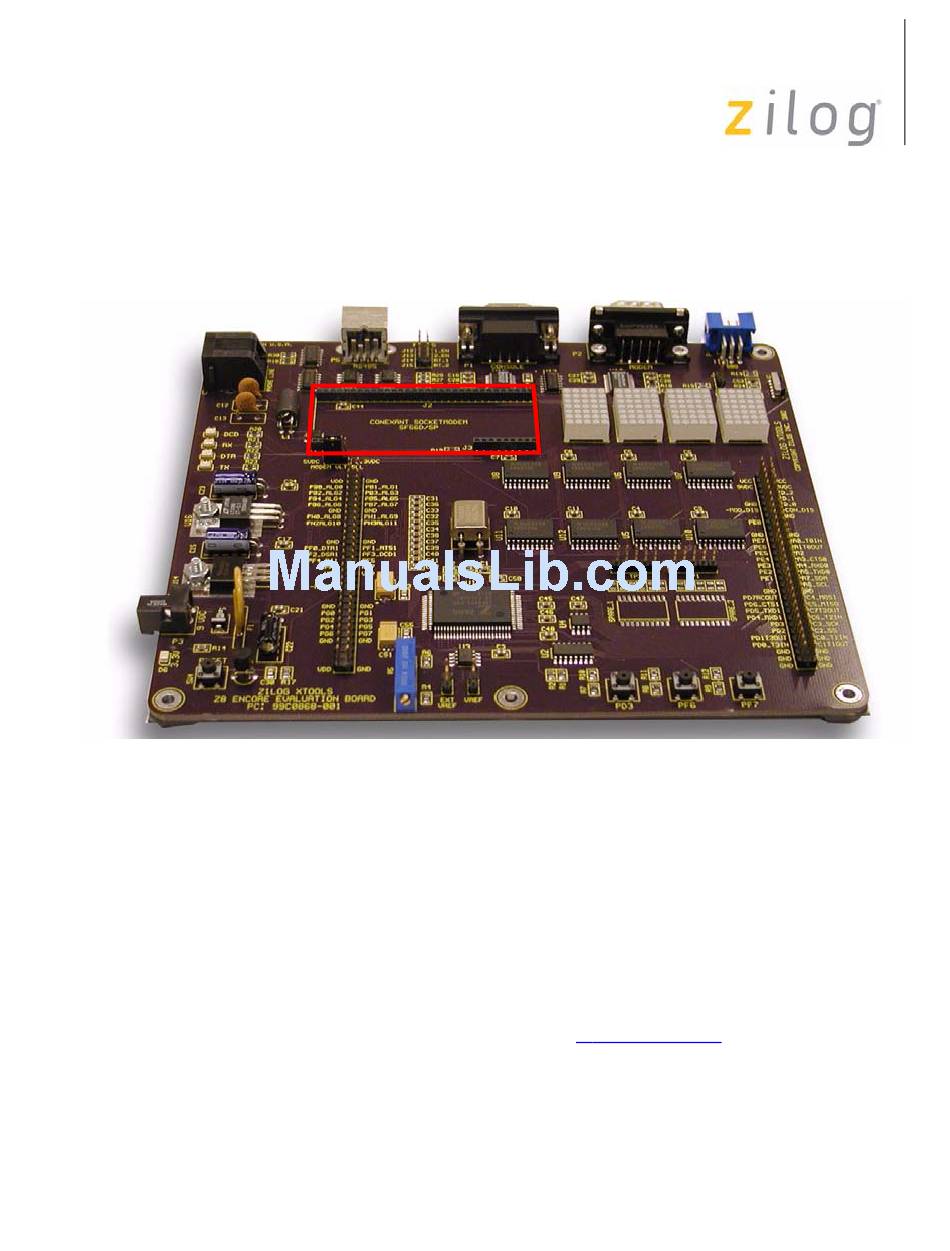

Figure 7
displays the embedded modem location.
Figure 7. Embedded Modem Placement
The evaluation board provides for an embedded modem, the SF56D/SP
SocketModem. The SocketModem is not part of the kit.
Table 18
on page
29 lists ordering information for the modem. The interface communicates
with the modem serially. LEDs D7-D10 provide information about the
status of the modem's interface lines. The phone line connection is for the
U.S. only. To connect to a modem outside of the U.S., modifications must
be made to the board. The necessary data is found in the SocketModem
Data Sheet available for download at www.zilog.com.
UM014605-0208
