The 9 V DC universal power supply features three different plug configu-
rations, the power supply and a tool that aids in removing one plug con-
figuration to insert another.
Follow the steps below to substitute one plug configuration for another:
1. Using the removal tool, place the power supply in the round hole at
2. Press down to disengage the keeper tab and push the plug configura-
3. Select the plug configuration of choice for your location, and insert it
4. Push the new plug configuration down until it snaps into place (see

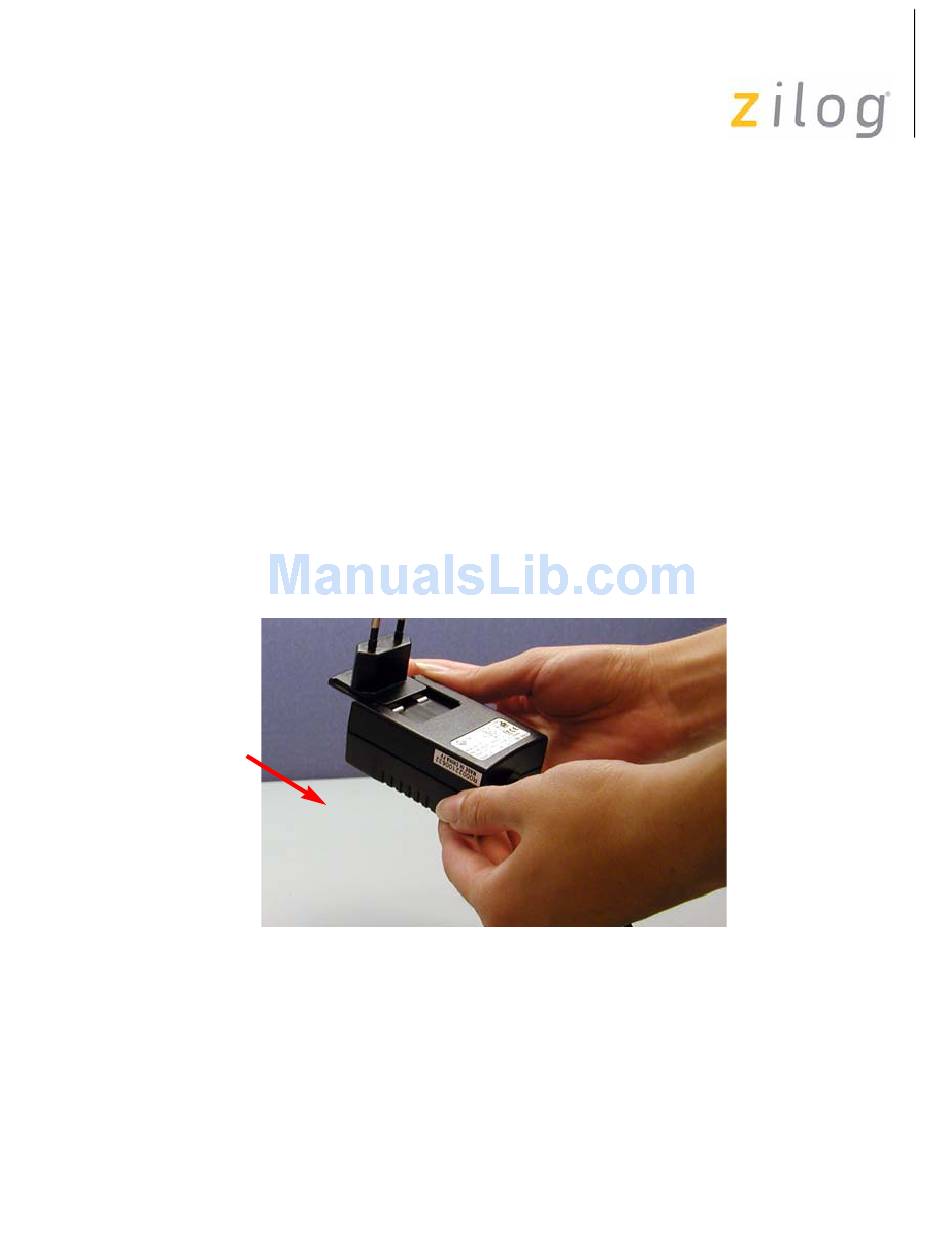

Figure 4. Inserting a New Plug Configuration
UM014605-0208
Z8 Encore!
the top of the current plug configuration.
tion out of its slot.
into the slot left by the previous plug configuration.
Figure 4).
®
