C H A P T E R 4
Using your interactive whiteboard system
Don't touch the projector lens or mirror. This can disturb the focus or quality of image that your
l
projector displays.
When adjusting keystone (tilt), ensure that the top and bottom edges of the image are
l
horizontal before you position the left and right edges of the image relative to your interactive
whiteboard.
To fine-tune the image, you might need to repeat all steps described in the installation
l
document in smaller increments.

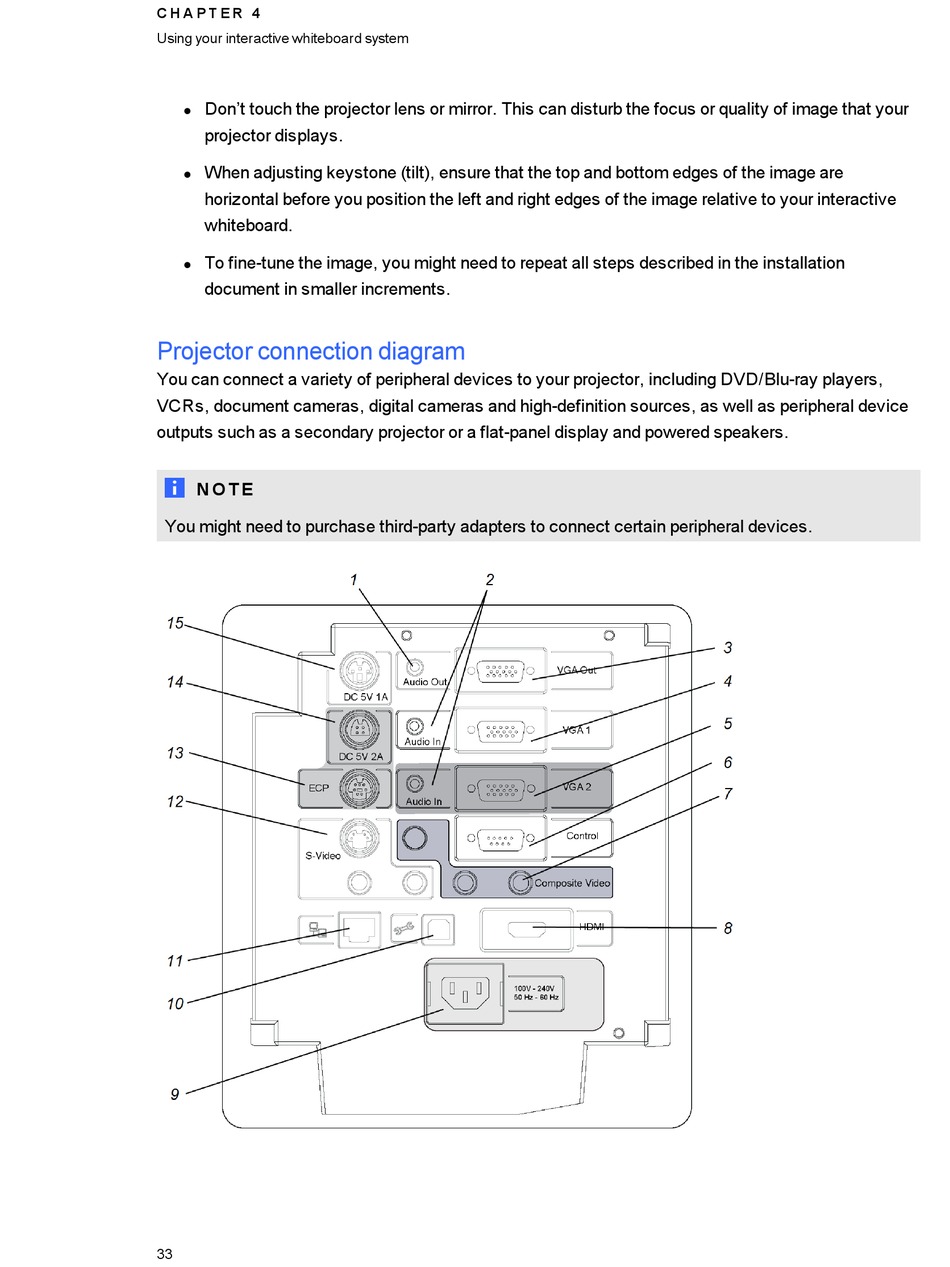

Projector connection diagram

You can connect a variety of peripheral devices to your projector, including DVD/Blu-ray players,
VCRs, document cameras, digital cameras and high-definition sources, as well as peripheral device
outputs such as a secondary projector or a flat-panel display and powered speakers.
N O T E
You might need to purchase third-party adapters to connect certain peripheral devices.
