C H A P T E R 4
Using your interactive whiteboard system

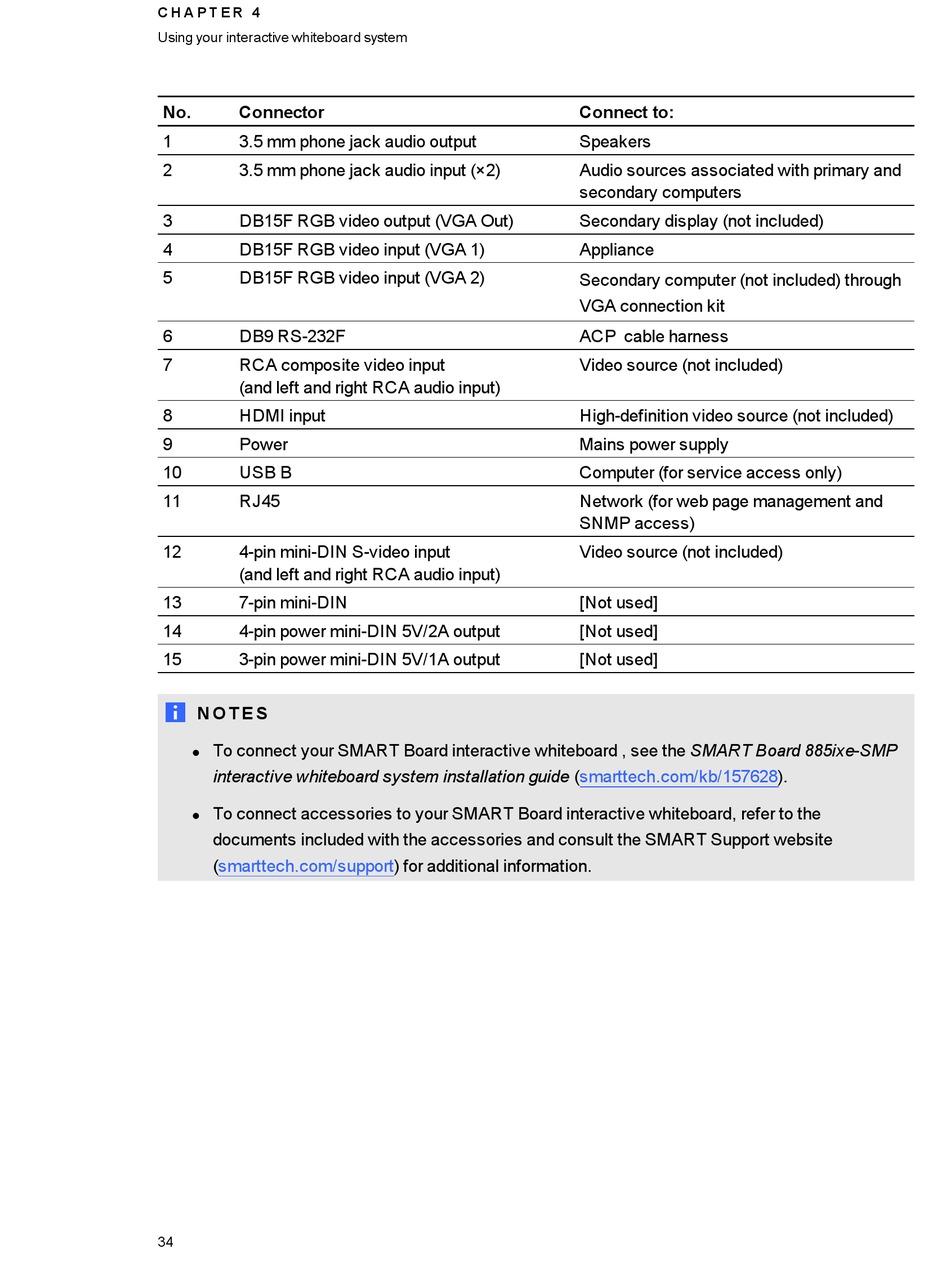

No. Connector
1 3.5 mm phone jack audio output
2 3.5 mm phone jack audio input (×2)
3 DB15F RGB video output (VGA Out)
4 DB15F RGB video input (VGA 1)
5 DB15F RGB video input (VGA 2)
6 DB9 RS-232F
7 RCA composite video input
(and left and right RCA audio input)
8 HDMI input
9 Power
10 USB B
11 RJ45
12 4-pin mini-DIN S-video input
(and left and right RCA audio input)
13 7-pin mini-DIN
14 4-pin power mini-DIN 5V/2A output
15 3-pin power mini-DIN 5V/1A output
N O T E S
To connect your SMART Board interactive whiteboard , see the SMART Board 885ixe-SMP
l
interactive whiteboard system installation guide (smarttech.com/kb/157628).
To connect accessories to your SMART Board interactive whiteboard, refer to the
l
documents included with the accessories and consult the SMART Support website
(smarttech.com/support) for additional information.
34
Connect to:
Speakers
Audio sources associated with primary and
secondary computers
Secondary display (not included)
Appliance
Secondary computer (not included) through
VGA connection kit
ACP cable harness
Video source (not included)
High-definition video source (not included)
Mains power supply
Computer (for service access only)
Network (for web page management and
SNMP access)
Video source (not included)
[Not used]
[Not used]
[Not used]
